ABB EM1804 Control and Automation Board - IS2
Part Number: EM1804
Quick Summary
ABB EM1804 control and automation board is designed for fixed-rack enclosures in System pro E control applications. Engineers often cope with lengthy assembly times and inconsistent uprights when configuring IS2 cabinets, leading to delays. This solution carries CE Declaration of Conformity, RoHS compliance dated 2025-01-08, and REACH information to support regulatory alignment and sustainability. For system integrators, pairing with System pro E control enclosures and pre-assembled uprights delivers faster installs, cleaner wiring, and lower lifecycle cost.
Product Information
Extended Description

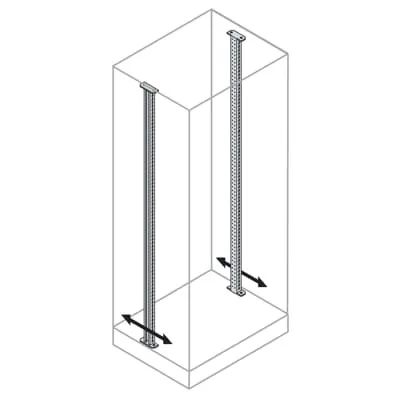

EM1804 ABB: N.2 Uprights For Fixed Rack 19" H=1800mm
Suitable For
Automation and Control Enclosures (System pro E control) - IS2
Suitable for Product Class
Automation and Control Enclosures (System pro E control)
Accessory Type
11. Configuration with compartments
Enclosure Type
Kit - intermediate uprights mounted in depth
Mounting Type
Kit | Pre assembled
Product Type
5B5B20B220
Material
Galvanized Steel sheet
Options Provided
Intermediate uprights (mounted in depth)
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
100 mm
Product Net Height
1700 mm
Product Net Depth / Length
60 mm
Product Net Weight
5.86 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
5.98 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
IS2 instruction handbook 2024
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000386 - Mounting rail/-profile
ETIM 9
EC000386 - Mounting rail/-profile
eClass
V11.1 : 27400501
Object Classification Code
U
Standards
See code for structure
IS2 compatibility ensures EM1804 sits directly in System pro E control enclosures, minimizing adapters and reducing commissioning risk. The business impact is a cleaner BOM, fewer integration errors, and faster time-to-value for plant automation projects. In practice, engineers deploy EM1804 in automation and control cabinets across manufacturing lines, machine builders, and test benches, ensuring consistency from design to operation. The kit uses intermediate uprights mounted in depth, which simplifies depth matching and reduces field fabrication time. Pre-assembled uprights enable rapid on-site assembly, lowering labor costs and minimizing wiring tangles during installation. Made from galvanized steel, the enclosure delivers durability and corrosion resistance in harsh factory environments, improving uptime and reducing maintenance frequency. The product type 5B5B20B220 supports standardized mounting rails and future reconfigurations, while ETIM EC000386 classification aids procurement efficiency. With reference depth options from 300 to 1000 mm and width options from 400 to 1600 mm, you gain flexible configurations without redesign. CE conformity, RoHS, and REACH declarations underpin regulatory compliance and sustainable sourcing, while IS2 installation manuals (2024) streamline commissioning. Industry insight confirms these enclosures are a common choice for System pro E control implementations, enabling scalable manufacturing deployments and predictable total cost of ownership.
Get a Quick Quote for a ABB EM1804
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EM1804?
Enquire Now
FAQs
EM1804 is designed to be used with System pro E control IS2 enclosures, leveraging pre-assembled intermediate uprights for quick, tool-light installation. It fits standard 19" racks and aligns with compatible mounting rails, ensuring consistent fitment across enclosure families and reducing time spent on adapters or rework during commissioning.
Key specs include a galvanised steel construction, a reference height of 1800 mm, reference depths from 300 to 1000 mm, and reference widths from 400 to 1600 mm. Net dimensions list a width of 100 mm, height of 1700 mm, and depth of 60 mm, with a net weight of 5.86 kg. The kit supports pre-assembled uprights and IS2 compatibility.
Yes. The EM1804 uses galvanised steel, which provides durability and corrosion resistance in factory settings. It is designed for System pro E control IS2 enclosures, and its RoHS-compliant materials help ensure low environmental impact. For maintenance, its modular uprights and standardized rails simplify upgrades and reconfigurations without replacing the entire enclosure.
The EM1804 carries CE Declaration of Conformity and REACH information, with RoHS compliance dated 2025-01-08, aligning with regulatory expectations. ETIM classification EC000386 for mounting rails/profiles supports accurate, standardized procurement data, easing cataloging and supplier comparisons for automation projects.
The kit reduces on-site assembly time through pre-assembled uprights and depth-matched components, lowering labor costs and risk of wiring errors. Its durable galvanized steel construction minimizes corrosion-related maintenance, extending cabinet life in harsh environments. Additionally, IS2 compatibility and standardized dimensions simplify future upgrades, improving total cost of ownership for automation deployments.
