ABB EM2004 Control and Automation Board - IS2
Part Number: EM2004
Quick Summary
ABB EM2004 is a control and automation board for 19" fixed racks in IS2 enclosures. Many engineers face challenges with modularity and depth compatibility when expanding panels. EM2004 addresses this with N.2 uprights for depth-mounted configurations and a pre-assembled kit option, enabling faster, error-free assembly. It carries CE conformity and RoHS/REACH declarations, backed by IS2 Enclosures Technical Catalogue 2024 for reference. These features support scalable enclosure layouts, reduced field wiring complexity, and long-term cost savings through standardized components and predictable installation times. This makes EM2004 a practical choice for system integrators and panel builders targeting robust automation projects.
Product Information
Extended Description

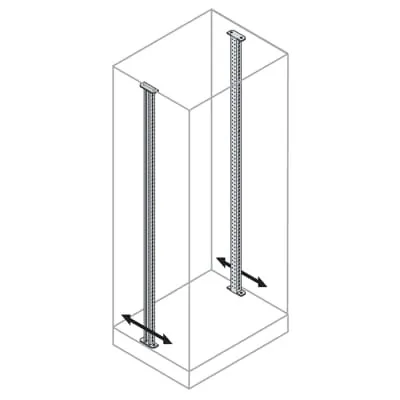

EM2004 ABB: N.2 Uprights For Fixed Rack 19" H=2000mm
Suitable For
Automation and Control Enclosures (System pro E control) - IS2
Suitable for Product Class
Automation and Control Enclosures (System pro E control)
Accessory Type
11. Configuration with compartments
Enclosure Type
Kit - intermediate uprights mounted in depth
Mounting Type
Kit | Pre assembled
Product Type
5B5B20B220
Material
Galvanized Steel sheet
Options Provided
Intermediate uprights (mounted in depth)
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
100 mm
Product Net Height
1900 mm
Product Net Depth / Length
60 mm
Product Net Weight
6.55 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2000 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
6.68 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
IS2 instruction handbook 2024
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000386 - Mounting rail/-profile
ETIM 9
EC000386 - Mounting rail/-profile
eClass
V11.1 : 27400501
Object Classification Code
U
Standards
See code for structure
Feature: Intermediate uprights mounted in depth enable precise alignment and modular expansion. Impact: Improves installation speed and reduces field rework, supporting scalable 19" rack configurations in busy panel shops. Application: System integrators building automation panels in IS2 enclosures across manufacturing, process, and packaging lines. Feature: Galvanized steel sheet construction enhances durability and corrosion resistance. Impact: Extends service life in harsh industrial environments, lowering maintenance costs and downtime. Application: Control cabinets exposed to dust, humidity, or wash-down conditions. Feature: Reference depth and width options from 300 to 1000 mm and 400 to 1600 mm provide flexible sizing. Impact: Enables standardization of enclosure footprints and reduces inventory variety. Application: Projects requiring precise depth for equipment like power supplies or I/O modules. Feature: Pre-assembled kit and depth-mounted mounting type minimize on-site assembly errors. Impact: Shortens project timelines and improves wiring consistency. Application: High-volume panel shops and retrofit projects. Feature: Regulatory compliance with CE, RoHS, and REACH declarations reduces risk of non-conformances. Impact: Simplifies procurement and audits in regulated environments. Application: Any environment demanding traceable compliance. Feature: Compatibility with System pro E control IS2 enclosures streamlines integration. Impact: Reduces engineering time and ensures cohesive enclosure systems. Application: turnkey system deployments in automation and control.
Get a Quick Quote for a ABB EM2004
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EM2004?
Enquire Now
FAQs
EM2004 uses intermediate uprights mounted in depth to align with standard 19" rails. Start by confirming enclosure width options, mount uprights at the chosen depth, and then install the fixed rails. The pre-assembled kit option reduces on-site assembly steps and wiring misalignment, ensuring a consistent panel build compatible with System pro E control IS2 enclosures.
Key specs include Product Net Width 100 mm, Net Height 1900 mm, Product Net Depth 60 mm, and a Net Weight of 6.55 kg. Reference depths range 300–1000 mm with a fixed H2000 mm height and adjustable widths from 400 to 1600 mm. These dimensions help optimize panel depth, cabinet footprint, and rail alignment.
EM2004 is ideal for automation and control panels deployed in manufacturing, process engineering, and packaging lines that use 19" fixed racks within System pro E control IS2 enclosures. Its modular uprights and depth-adjustable options support scalable control architectures and rapid expansion without rework.
EM2004 carries CE conformity, RoHS information with a 20250108 RoHS date, and REACH declarations showing no substances above 0.1 mass percentage. WEEE category indicates non-WEEE scope. These declarations support safe procurement, compliant installations, and traceable environmental specifications.
Durable galvanized steel construction reduces corrosion-related maintenance, while the depth-mounted, pre-assembled kit design lowers installation labor and field wiring errors. Standardized components simplify spares management and accelerate panel upgrades, leading to a lower total cost of ownership and quicker ROI for panel builders and integrators.
