ABB EM2200 Uprights Kit - CE RoHS, IS2 Compliant
Part Number: EM2200
Quick Summary
ABB EM2200 Uprights Kit enables durable mounting structures for control cabinets in automation assembly lines and factory data centers. Installers often battle misalignment, inconsistent enclosure heights, and time-consuming setup when expanding standard frameworks, leading to project delays and higher labor costs. This family supports CE marking, RoHS compliance, and REACH information, providing regulatory assurance for panel builds and simplifying supplier audits. Designed for IS2 enclosures, the kit reduces installation time and stock complexity while ensuring structural integrity across varying frame sizes and mounting rails. Engineers benefit from predictable parts, faster audits, and safer, compliant cabinets.
Product Information
Extended Description

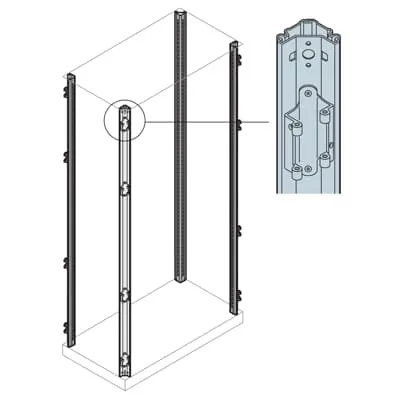

EM2200 ABB: Uprights with hinges H=2200mm
Configuration Type
2. Uprights
Enclosure Type
Kit - uprights for standard structure
Mounting Type
Kit
Product Type
5B5B20B220
Material
Galvanized Steel sheet
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
46.9 mm
Product Net Height
2100 mm
Product Net Depth / Length
46.9 mm
Product Net Weight
18.590 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
18.970 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000386 - Mounting rail/-profile
ETIM 9
EC000386 - Mounting rail/-profile
eClass
V11.1 : 27400501
Object Classification Code
U
Standards
See code for structure
The EM2200 Uprights Kit provides two uprights for standard structures, sold as a ready-to-install kit for IS2 enclosure systems. Configuration Type and mounting details ensure consistent alignment and simplify field assembly, reducing commissioning time. Standardized uprights support scalable frame options, enabling quick expansion without reworking existing enclosures. The uprights are fabricated from galvanized steel sheet, delivering corrosion resistance and structural rigidity in demanding manufacturing environments. This material choice supports long service life, lowers maintenance costs, and aligns with safety standards for electrical enclosures. Business impact: robust galvanization improves uptime and reduces repainting or replacement needs across factory floors. The EM2200 kit offers modular depth options from 400 to 1000 mm and adjustable width selections from 400 to 1200 mm, accommodating a wide range of control panels. Product Net Width is 46.9 mm and Product Net Weight is 18.590 kg, supporting precise fit and predictable handling during installation. These dimensions align with ETIM 8/9 EC000386 mounting rail compatibility and eClass 27400501 classifications, simplifying catalog search and procurement. Compliance and environmental data include RoHS information with RoHS Date 20250108 and REACH statements, with a CE Declaration of Conformity IS2. Installation and compatibility advantages include a clear mounting rail interface, IS2 Enclosures Technical Catalogue 2024 reference, and an accessible manual code 1STM604121R0006 to streamline commissioning.
Get a Quick Quote for a ABB EM2200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EM2200?
Enquire Now
FAQs
For proper installation, verify IS2 enclosure compatibility and use the provided manual 1STM604121R0006. The kit supports depths from 400 to 1000 mm and widths from 400 to 1200 mm, with two galvanized uprights forming a stable frame. Plan for a total weight near 18.6 kg per kit and follow CE/ RoHS/ REACH guidance during assembly to ensure regulatory compliance and a safe, reliable enclosure.
The EM2200 kit uses galvanised steel for durability in harsh factory settings, providing rigid uprights that align accurately for fast, repeatable assembly. Its IS2 enclosure compatibility, modular depth and width options, and standardized mounting rails reduce misalignment risks, shorten commissioning times, and support scalable panel configurations in industrial automation projects.
Yes. The product carries CE conformity (Declaration of Conformity IS2), RoHS information with a RoHS date of 20250108, and REACH declarations indicating no substances above 0.1 mass%. WEEE classification notes the product is not within WEEE scope, helping simplify end-of-life planning and regulatory considerations for global manufacturing.
The kit supports a reference height of 2200 mm and a product net height of 2100 mm, with width options from 400 to 1200 mm and depth options from 400 to 1000 mm. This modularity enables precise fitting for various control cabinets while maintaining standardization across multiple frame sizes and mounting rails.
Expect faster installation, reduced field errors due to standardized uprights, and easier audits with clear documentation and part traceability. The galvanized steel construction extends service life, lowering maintenance and replacement costs, while modular dimensions improve footprint efficiency and procurement consistency, contributing to shorter project timelines and lower total cost of ownership.
