ABB EM2203 Control and Automation Board - CE/IS2 Enclosures
Part Number: EM2203
Quick Summary
ABB EM2203 control and automation board enables modular uprights for IS2 enclosure configurations. This kit-based system addresses the common challenges of adapting cabinets to evolving control architectures without costly fabrication. The design emphasizes rapid assembly, integrated compartments, and a cable container up to 2200 mm high, streamlining layout and wiring. The product carries a CE declaration and is RoHS and REACH compliant, with WEEE classification for responsible disposal. By pairing galvanized steel construction with standardized reference widths and depths, it delivers durable, scalable enclosures that reduce project lead times and simplify procurement for engineering teams and system integrators.
Product Information
Extended Description

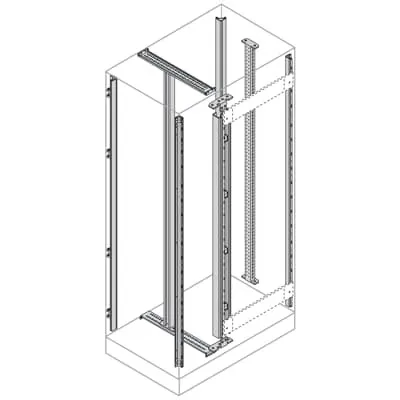

EM2203 ABB: Uprights for configuration with compartments + int. cable container H=2200mm
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Configuration Type
2. Uprights
Enclosure Type
Kit - intermediate uprights for configuration with compartments
Mounting Type
Kit
Product Type
5B5B20B220
Material
Galvanized Steel sheet
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
450 mm
Product Net Height
2100 mm
Product Net Depth / Length
50 mm
Product Net Weight
37.650 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
38.420 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000386 - Mounting rail/-profile
ETIM 9
EC000386 - Mounting rail/-profile
eClass
V11.1 : 27400501
Object Classification Code
U
Standards
See code for structure
Feature: Kit-based uprights with compartments and integrated cable container → Business Impact: Enables modular cabinet configurations with minimal on-site customization, reducing engineering changes and installation time → Application: Ideal for IS2 enclosure projects in automation systems where future reconfiguration is anticipated. Feature: Galvanized steel construction → Business Impact: Delivers corrosion resistance and long service life in harsh industrial environments, lowering maintenance costs → Application: Suitable for factory floors, outdoor enclosures, and harsh production lines. Feature: Defined dimensions and reference options (450 mm width, 2100 mm height, 50 mm depth; available depths and widths) → Business Impact: Ensures compatibility with a wide range of IS2 enclosures and standardization across plant fleets, simplifying design reviews and part sourcing → Application: Fast-fit for stock cabinets and modular systems. Feature: Compliance packaging (CE, RoHS, REACH; WEEE) → Business Impact: Reduces regulatory risk and accelerates customer acceptance and certification audits → Application: Machinery compliance programs and industrial machinery deployments. Feature: Lightweight, single-piece packaging and clear mounting kit instructions → Business Impact: Streamlines logistics and handover to installers, improving first-pass assembly success → Application: Project rollout and maintenance planning for OEMs and integrators. Insight: The system aligns with industry best practices for modular cabinet design, enabling predictable lead times and scalable configurations for growing automation architectures.
Get a Quick Quote for a ABB EM2203
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EM2203?
Enquire Now
FAQs
EM2203 is designed as a kit-based uprights system for IS2 enclosures. It supports intermediate uprights with compartments and an integrated cable container, enabling configuring the enclosure to match control and automation board layouts. Mounting is provided in kit form to simplify on-site assembly and reduce custom fabrication, with standard reference widths and depths that align with common IS2 cabinet footprints.
Key specs include a product net width of 450 mm, product net height of 2100 mm, and product net depth of 50 mm. The reference height is 2200 mm, with reference widths of 400, 600, 800, 1000, and 1200 mm, and reference depths of 300 to 1000 mm. The unit weighs 37.650 kg and is made from galvanized steel sheet, ensuring durability in industrial environments.
Yes. EM2203 is intentionally designed as a mounting kit for IS2 enclosure configurations, specifically for control and automation boards. Its uprights with compartments and integrated cable management support scalable automation architectures while maintaining a robust mechanical interface with IS2 enclosures.
EM2203 carries a CE Declaration of Conformity and is RoHS and REACH compliant, with REACH information dated 20250108. It is categorized under WEEE as Product Not in WEEE Scope, reflecting its alignment with current European regulatory expectations for electrical enclosures and components.
The kit-based uprights reduce on-site fabrication, accelerate assembly, and simplify future reconfigurations, which lowers installation labor costs and minimizes change orders. Galvanized steel provides long-term durability, while standardized dimensions improve part availability and reduce inventory complexity. Overall, EM2203 supports faster project delivery and a clearer path to scalable automation cabinet configurations.
