ABB EP1680K Control and Automation Board - IS2 Enclosures
Part Number: EP1680K
Quick Summary
EP1680K is a control and automation board designed for IS2 enclosure applications in factory automation. Engineers often struggle with mounting rear panels in tight spaces and managing dense wiring. This model carries CE conformity, RoHS and REACH compliance, with explicit IS2 enclosure compatibility and a CE Declaration of Conformity. By using a kit-based rear panel with a 790 mm width and 1,596 mm height, and a durable orange-peel finish in RAL 7035, it supports modular automation builds while simplifying installation and serviceability. The design aligns with IS2 enclosures and automation-bench standards, delivering predictable fit and robust physical protection, helping procurement streamline sourcing and maintenance planning across plant sites.
Product Information
Extended Description

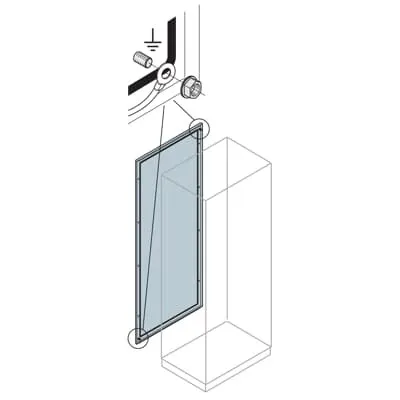

EP1680K ABB: Rear Blind Panel 1600x800mm (HxW) 7035
Sub-Function 3
Back panel
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Configuration Type
4. Rear panel
Enclosure Type
Kit - rear panel
Mounting Type
Kit
Product Type
5B5B20B260
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
790 mm
Product Net Height
1596 mm
Product Net Depth / Length
16 mm
Product Net Weight
16.82 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1600 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
17.158 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0007
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002524 - Side-/back panel (enclosure/cabinet)
ETIM 9
EC002524 - Side-/back panel (enclosure/cabinet)
eClass
V11.1 : 27182101
Standards
See code for structure
Feature a robust rear-panel kit designed for IS2 enclosures delivers streamlined installation and reliable mounting, reducing assembly time and potential misalignment. Business impact includes shorter project lead times and improved serviceability in active control cabinets, especially in high-density IT/OT environments. This is ideal for automation cabinets in manufacturing lines where consistent rear-panel fit supports modular expansion and fault isolation. Feature245 long-life finish with Orange Peel texture in RAL 7035 ensures uniform appearance, better heat dissipation, and resistance to dust ingress in industrial settings. Business impact includes lower maintenance costs and improved cabinet longevity, particularly in harsh factory conditions where control and automation boards operate alongside servo drives and PLCs. This product’s compatibility with IS2 enclosures for automation minimizes compatibility risk and supports standardized procurement across multi-site deployments. Feature a pickled steel sheet construction provides mechanical rigidity and resilience that reduces field repairs, delivering measurable total cost of ownership benefits for OEMs and system integrators. Business impact includes predictable lead times and simplified spare-part planning, enabling faster project ramp-ups and more reliable capital expenditure. The rear-panel configuration supports a kit-based mounting approach, easing on-site installation and enabling scalable cabinet customization for evolving automation architectures. This aligns with ETIM and eClass classifications, ensuring accurate cataloging and streamlined procurement workflows for industrial buyers.
Get a Quick Quote for a ABB EP1680K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EP1680K?
Enquire Now
FAQs
The EP1680K rear-panel kit is designed specifically for IS2 Enclosures for Automation. It provides a precise back panel solution that fits the standard IS2 mounting footprint, ensuring reliable alignment with the enclosure frame and existing mounting holes. This compatibility reduces installation complexity and improves overall system integrity in control cabinets.
EP1680K uses a pickled steel sheet with an orange-peel finish (RAL 7035) and weighs 16.82 kg, offering solid mechanical rigidity without excessive bulk. Its dimensions (790 mm width, 1596 mm height, 16 mm depth) support compact layouts while maintaining sufficient clearance for cabling and components, resulting in predictable thermal behavior and easier accessibility during maintenance.
Yes. The kit is intended for Control and Automation Board applications, with a rear-panel configuration that suits IS2 automation enclosures. Its mounting kit design simplifies integration with standard automation sensors, PLCs, and drives, while keeping the control cabinet organized and compliant with IS2 automation standards.
EP1680K carries a Declaration of Conformity IS2, CE conformity, and RoHS and REACH compliance. This aligns with European regulatory requirements for industrial automation equipment and ensures reduced risk for compliance audits, green-lighting adoption in European manufacturing environments.
Installing the rear-panel kit as a module reduces assembly time and field wiring complexity, enabling faster cabinet builds and easier future upgrades. Its standardized IS2 compatibility and robust finish decrease maintenance downtime and spare-part ambiguity, delivering tangible ROI through shorter project cycles, improved uptime, and lower total cost of ownership for automation projects.
