ABB EP1840K Control and Automation Board - CE/IS2
Part Number: EP1840K
Quick Summary
ABB EP1840K is a control and automation board rear-panel kit designed for IS2 enclosure installations in process and machine equipment. It addresses common installation bottlenecks such as rear-panel fit, modular depth options, and regulatory traceability. Featuring CE Declaration of Conformity IS2, RoHS compliance dated 2025-01-08, and REACH information, it supports compliant procurement. With a durable orange-peel finish in RAL 7035 on pickled steel and a kit-based mounting approach, it streamlines procurement, installation, and service in industrial automation projects. The product's documented dimensions and reference depths enable precise planning during cabinet scoping, while its 9.570 kg weight fits in standard crate logistics. For integrators facing tight schedules, the EP1840K delivers predictable lead times and easy sourcing through ABB's enclosure catalog.
Product Information
Extended Description

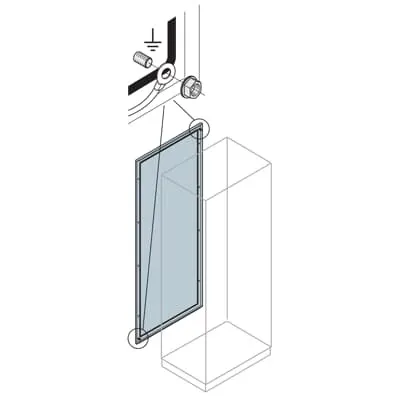

EP1840K ABB: Rear panel 1800x400mm (HxW)
Sub-Function 3
Back panel
Configuration Type
4. Rear panel
Enclosure Type
Kit - rear panel
Mounting Type
Kit
Product Type
5B5B20B260
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
394 mm
Product Net Height
1796 mm
Product Net Depth / Length
16 mm
Product Net Weight
9.570 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
400 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
9.770 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002524 - Side-/back panel (enclosure/cabinet)
ETIM 9
EC002524 - Side-/back panel (enclosure/cabinet)
eClass
V11.1 : 27182101
Object Classification Code
U
Standards
See code for structure
The EP1840K rear-panel kit is designed to fit ABB IS2 enclosure systems, enabling reliable mounting of control and automation boards in process and machine environments. This design reduces installation bottlenecks, shortens commissioning times, and simplifies spare-part logistics across multiple sites. Material choice and finish—pickled steel with orange-peel coating in RAL 7035—deliver durable protection and a consistent aesthetic, helping maintenance teams identify issues quickly and minimize repaint costs. The 394 mm net width, 1796 mm net height, and 16 mm net depth provide a predictable envelope for cable management and device layout, while reference depths of 400–1000 mm support modular system configurations for varying payloads. Compliance elements such as RoHS, REACH, and CE IS2 declarations reduce regulatory risk and support audits. Shipping as a single-piece package with a gross weight of 9.77 kg simplifies procurement and warehousing. Installation guidance is reinforced by the aligned documentation (1STM604121R0006) to accelerate field deployment. By standardizing back-panel assemblies, ABB enables faster spares provisioning, lowers lifecycle costs, and improves cross-project consistency across automation architectures.
Get a Quick Quote for a ABB EP1840K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EP1840K?
Enquire Now
FAQs
Begin by validating cabinet width and height against the kit specifications: 394 mm net width, 1796 mm net height, and 16 mm net depth. Use the kit mounting method to attach the rear panel, aligning with reference depths from 400 to 1000 mm. Follow the manual 1STM604121R0006 for screw patterns and tightening torques, then route cables before securing devices to the back panel.
EP1840K is specifically designed as a rear-panel kit for ABB IS2 enclosures. Compatibility with non-ABB cabinets is not guaranteed; verify mounting hole spacing, panel thickness, and back-panel fitment against your enclosure’s specs. When in doubt, consult ABB enclosure compatibility guidelines or request a formal fit check.
Key specs include a rear panel size of 1800 mm by 400 mm, net dimensions of 394 mm W x 1796 mm H with a 16 mm depth, and a panel weight of 9.570 kg. The finish is orange-peel RAL 7035 on pickled steel. It is a kit-based rear panel designed for modular depths of 400–1000 mm.
The EP1840K carries CE Declaration of Conformity IS2, RoHS information with a 20250108 date, and REACH information indicating no substances above 0.1% mass. WEEE status indicates product scope. ETIM 8, ETIM 9 and eClass V11.1 classifications support accurate cataloging. These certifications simplify regulatory compliance, environmental responsibility, and data integration for procurement teams.
Using the EP1840K reduces engineering and installation time with a ready rear-panel kit, standard dimensions, and documented installation guidance. The durable finish and standard parts lower maintenance costs, while modular depth options and consistent sourcing reduce spares diversity. Overall, it shortens project timelines, improves inventory management, and supports faster design-to-commission cycles.
