ABB EP2012K Control and Automation Board - Rear panel CE
Part Number: EP2012K
Quick Summary
ABB EP2012K is a control and automation board for centralized machine control in industrial facilities. The system is designed to streamline cabinet construction with a dedicated rear-panel kit that simplifies wiring access and serviceability. Facilities often grapple with modularity, retrofit challenges, and maintaining regulatory compliance in harsh environments; the EP2012K addresses these by providing a standardized rear panel that integrates with ABB control architectures. This enclosure aligns with CE declarations, RoHS and REACH compliance, and ETIM/eClass classifications, helping vendors and integrators manage documentation consistently. By delivering a ready-to-install rear panel solution, it supports IS2 enclosure requirements while reducing installation churn, improving maintenance efficiency, and lowering total cost of ownership for high-availability automation in manufacturing environments.
Product Information
Extended Description

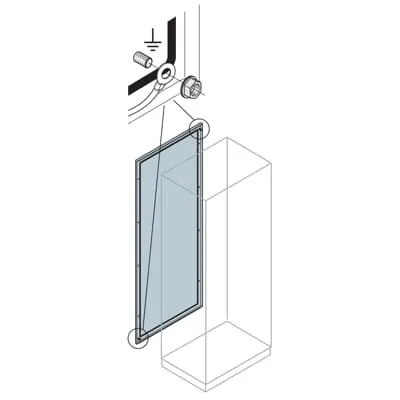

EP2012K ABB: Rear panel 2000x1200mm (HxW)
Sub-Function 3
Back panel
Configuration Type
4. Rear panel
Enclosure Type
Kit - rear panel
Mounting Type
Kit
Product Type
5B5B20B260
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1194 mm
Product Net Height
1996 mm
Product Net Depth / Length
16 mm
Product Net Weight
31.380 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm
Reference Height
2000 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
32.020 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002524 - Side-/back panel (enclosure/cabinet)
ETIM 9
EC002524 - Side-/back panel (enclosure/cabinet)
eClass
V11.1 : 27182101
Object Classification Code
U
Standards
See code for structure
Feature: Rear panel kit configured for 4. Rear panel and 5B5B20B260 product type. Business impact: simplifies integration with ABB control systems and reduces cabinet assembly time. Application: large control cabinets in industrial facilities where rear-panel access is critical. Long-tail keywords: rear panel enclosure, IS2 enclosures, ABB control systems, ETIM 8 EC002524, eClass V11.1 27182101. Feature: Material and finish—pickled steel sheet with orange-peel finish in RAL 7035. Business impact: enhances corrosion resistance and long-term durability in harsh environments. Application: factory automation enclosures exposed to dust and humidity. Feature: Dimensions and reference options—reference height 2000 mm, width 1200 mm; reference depths 400/500/600/800 mm. Business impact: flexible sizing supports diverse installation footprints, reducing custom fabrication. Application: modular machine enclosures and retrofits. Feature: RoHS, REACH, and WEEE compliance—RoHS Date 20250108, REACH Date 20250108, WEEE Category: Product Not in WEEE Scope. Business impact: regulatory readiness and streamlined procurement. Application: compliant in regulated markets with clear documentation. Feature: Mounting Type Kit and Enclosure Type Kit - rear panel. Business impact: easy retrofit and faster installation with standardized parts. Application: ABB-based automation cabinets, serviceable by OEMs and integrators.
Get a Quick Quote for a ABB EP2012K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EP2012K?
Enquire Now
FAQs
The EP2012K uses a kit-based rear panel designed to fit ABB control architectures with standard mounting provisions. It supports reference depths of 400, 500, 600, and 800 mm and aligns with IS2 enclosure practices, enabling straightforward retrofits and consistent wired access in large cabinets.
Key specs include a 2000 mm height and 1200 mm width rear panel, 16 mm reference depth, and a 1194 mm net width with 1996 mm net height. The finish is orange peel in RAL 7035 on pickled steel, and it carries RoHS and REACH declarations with a CE conformity statement.
Yes. EP2012K is CE declared, RoHS compliant, and REACH documented. It also references ETIM 8/9 EC002524 and eClass V11.1 27182101 for industry-standard classification, supporting procurement and compliance workflows in regulated manufacturing sectors.
Industries with large-scale control cabinets and IS2 enclosure requirements benefit, including automotive, packaging, and process automation. The kit provides standardized rear panels, documented compatibility with ABB control systems, and reliable documentation for audits and maintenance.
The kit standardizes rear-panel assemblies, reduces field wiring complexity, and accelerates installation. This translates to lower commissioning time, easier parts management, and improved uptime for automated lines, delivering tangible cost reductions over traditional bespoke panel builds.
