ABB EP2260K Other/Miscellaneous - CE IS2 Enclosures
Part Number: EP2260K
Quick Summary
ABB EP2260K is a rear-panel enclosure kit for control cabinets in industrial automation. This solution addresses the common project delays caused by selecting mismatched rear panels and finishes, offering a ready-to-install kit with precise dimensions. It carries CE conformity (Declaration of Conformity IS2), RoHS (RoHS information with 20250108), and REACH compliance to streamline regulatory audits. The enclosure’s durable pickled steel sheet with an orange peel surface in RAL 7035 delivers long-term reliability in harsh environments. By aligning with IS2 catalogue standards and ABB’s modular approach, it reduces integration risk and supports faster deployment, while maintaining compatibility with a range of reference depths and widths for flexible, scalable layouts.
Product Information
Extended Description

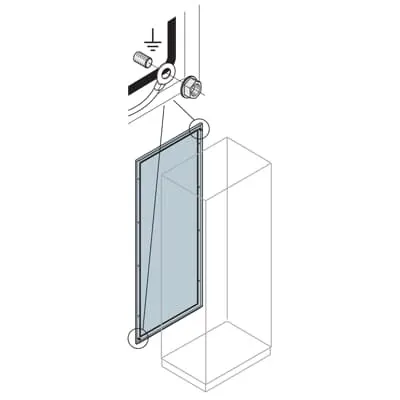

EP2260K ABB: Rear panel 2200x600mm (HxW)
Sub-Function 3
Back panel
Configuration Type
4. Rear panel
Enclosure Type
Kit - rear panel
Mounting Type
Kit
Product Type
5B5B20B260
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
594 mm
Product Net Height
2196 mm
Product Net Depth / Length
16 mm
Product Net Weight
17.40 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2200 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
17.760 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002524 - Side-/back panel (enclosure/cabinet)
ETIM 9
EC002524 - Side-/back panel (enclosure/cabinet)
eClass
V11.1 : 27182101
Object Classification Code
U
Standards
See code for structure
Feature → Business Impact → Application: The EP2260K rear-panel kit uses a robust pickled steel sheet with Orange Peel finish (RAL 7035), delivering durable protection against environmental exposure while preserving aesthetics in control rooms. This translates to lower maintenance costs and longer cabinet life for industrial automation projects. Application: ideal for IS2 enclosures and ABB control cabinets where a reliable, ready-made back panel is required to simplify panel assembly and wiring access. Feature → Business Impact → Application: Back panel configuration type is a 4. Rear panel with a dedicated mounting kit, enabling quick installation and repeatable assembly across multiple SKUs. Application: suitable for production lines requiring modular depth options (400–1000 mm) and consistent cabling routing. Feature → Business Impact → Application: 594 mm net width and 2196 mm net height with 16 mm net depth provide precise fit within 600 mm reference width and 2200 mm reference height, reducing field adjustments. Application: aligns with standard enclosure footprints for fast integration and regulatory compliance. Feature → Business Impact → Application: RoHS, REACH, and CE declarations ensure regulatory compliance across global markets, lowering audit risk and enabling smoother cross-border deployments. Application: recommended for manufacturers seeking certified enclosures with clear material specifications, ETIM classifications, and WEEE considerations.
Get a Quick Quote for a ABB EP2260K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EP2260K?
Enquire Now
FAQs
The EP2260K is a kit-based rear panel designed for ABB IS2 style enclosures. Plan for a compatible reference depth (400–1000 mm) and a width around 600 mm. Ensure mounting provisions match the 4. Rear panel configuration and use the supplied kit hardware to speed assembly and maintain cable routing integrity.
Key specs include a net width of 594 mm, net height of 2196 mm, net depth of 16 mm, and a reference width of 600 mm with a reference height of 2200 mm. Material is pickled steel with an orange peel finish (RAL 7035). The product weighs approximately 17.40 kg and is RoHS and REACH compliant.
Yes. The EP2260K is certified for IS2 enclosures with a CE Declaration of Conformity, RoHS, and REACH compliance. The durable pickled steel sheet and RAL 7035 finish provide both mechanical protection and corrosion resistance suitable for industrial settings.
The product holds a CE Declaration of Conformity IS2, RoHS information with a 20250108 date, REACH declaration, and WEEE categorization. These certifications confirm regulatory compliance, safer material usage, and environmental responsibility across global markets, simplifying procurement and commissioning in regulated industries.
Using the EP2260K reduces field assembly time and risk of misfit rear panels, lowers change-order costs, and accelerates project delivery by providing a pre-tested, standards-aligned back panel. The kit’s compatibility with multiple reference depths and its clear material/finish specs also aid in streamlined procurement and long-term maintenance planning.
