ABB EP2280K Other/Miscellaneous - CE Conformity
Part Number: EP2280K
Quick Summary
ABB EP2280K is a rear-panel enclosure kit for control and automation boards used in industrial cabinets. Engineers often struggle with wiring complexity, panel fitment, and regulatory alignment in large control panels. The solution carries CE conformity, RoHS, and REACH declarations to simplify audits and ongoing compliance. With its 794 mm net width, 2196 mm net height, and 16 mm net depth, it fits standard IS2 enclosures and accelerates installation. This combination supports faster commissioning, reduced field modification, and reliable, long-term operation in harsh industrial environments. Businesses also benefit from predictable lead times and consistent quality across wiring harnesses and enclosure kits.
Product Information
Extended Description

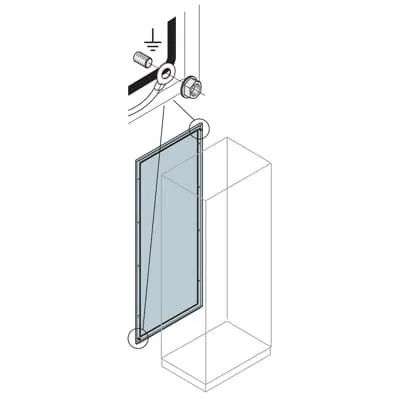

EP2280K ABB: Rear panel 2200x800mm (HxW)
Sub-Function 3
Back panel
Configuration Type
4. Rear panel
Enclosure Type
Kit - rear panel
Mounting Type
Kit
Product Type
5B5B20B260
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
794 mm
Product Net Height
2196 mm
Product Net Depth / Length
16 mm
Product Net Weight
23.110 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
23.580 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002524 - Side-/back panel (enclosure/cabinet)
ETIM 9
EC002524 - Side-/back panel (enclosure/cabinet)
eClass
V11.1 : 27182101
Object Classification Code
U
Standards
See code for structure
Feature is a rear-panel kit design that enables modular, rear-mounted configurations, reducing panel depth and simplifying cable routing. This directly translates to faster assembly, lower labor costs, and more reliable signal integrity in control cabinets. The enclosure uses pickled steel sheet with an orange peel finish in RAL 7035, delivering durable protection against corrosion while maintaining a consistent, professional appearance in factory environments. Material and finish support long-term maintenance and visual consistency across IS2 enclosure families, aiding compliance audits and asset management. Dimensions align with standard IS2 widths and reference depths, enabling straightforward retrofits and expandable configurations in automation systems. RoHS and REACH compliance support regulatory requirements, reducing risk during supplier qualification and system integration, while ETIM classifications and eClass alignment streamline cataloging and procurement in industrial markets.
Get a Quick Quote for a ABB EP2280K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EP2280K?
Enquire Now
FAQs
To install the EP2280K rear-panel kit, verify the enclosure width and height match standard IS2 frames (800 mm width, 2200 mm height). Align the rear panel with mounting holes, secure using supplied fasteners, and connect any internal components prior to enclosure closure. The kit is designed for simple, tool-assisted mounting, reducing field modification time and improving wiring organization.
Key dimensions include a net width of 794 mm, net height of 2196 mm, and net depth of 16 mm. Reference depth options span 400–1000 mm with a reference height of 2200 mm and width of 800 mm, ensuring compatibility with standard IS2 enclosures and common control cabinet footprints.
Yes. EP2280K carries CE conformity, RoHS information with a RoHS date of 20250108, and REACH declarations including an information note that it does not contain substances over 0.1 mass percentage. This helps with audits, supplier qualification, and regulatory compliance in European markets.
Absolutely. The rear-panel kit simplifies wiring management, reduces panel depth, and supports rapid retrofit or new-build installations. Its durable pickled steel sheet with Orange Peel surface in RAL 7035 delivers long-term reliability in factory environments, contributing to reduced maintenance and improved system uptime.
The panel uses pickled steel sheet material with an Orange Peel finish in RAL 7035. This combination offers corrosion resistance, a consistent aesthetic for industrial cabinets, and compatibility with standard enclosure geometries, easing procurement and installation in automation projects.
