ABB ER1060K Control and Automation Board - CE Compliance
Part Number: ER1060K
Quick Summary
ABB ER1060K control and automation board enables efficient cable management inside IS2 automation enclosures. Engineers often wrestle with wiring chaos, space constraints, and extended commissioning times that drive up project costs. This solution carries CE Declaration of Conformity, RoHS compliance, and REACH information, supporting regulatory adherence and sustainable manufacturing. Designed for a kit or pre-assembled mounting, ER1060K tightens integration with ABB IS2 enclosures and streamlines installation while reducing maintenance downtime. With a 1000x600 mm top-container footprint and a durable pickled steel shell finished in orange peel (RAL 7035), it delivers reliable cable routing for automation cabinets.
Product Information
Extended Description

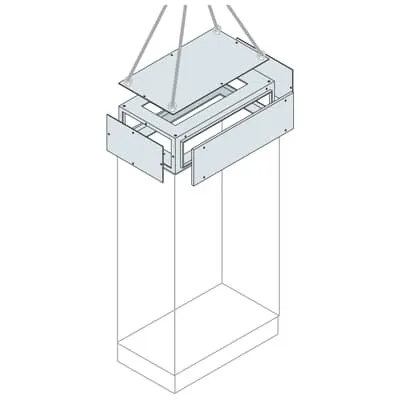

ER1060K ABB: Top container for cable connection 1000x600mm (WxD)
Sub-Function 3
Cable trough
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
10. Cable container
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B392
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Options Provided
2. Top container for cable connetion
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
605 mm
Product Net Height
1000 mm
Product Net Depth / Length
0.600 mm
Product Net Weight
33.220 kg
Reference Depth/Length
600 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
33.900 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002620 - Components for installation (enclosure/cabinet)
ETIM 9
EC002620 - Components for installation (enclosure/cabinet)
eClass
V11.1 : 27182811
Object Classification Code
U
Standards
See code for structure
Top-container design enables organized cable routing with a defined 1000x600 mm footprint, reducing wiring tangles and accidental disconnections. Business impact: streamlined panel assembly and lower error rates during commissioning. Application: ideal for IS2 enclosures in automation lines. Material and finish provide durability in harsh environments: pickled steel sheet with orange peel finish in RAL 7035. Business impact: enhanced corrosion resistance and longer service life, lowering maintenance costs. Application: suitable for factory floors and cabinet interiors. Mounting options deliver installation flexibility: kit or pre-assembled mounting. Impact: reduces on-site labor and enables rapid field upgrades. Application: compatible with ABB IS2 enclosure families. Compliance and documentation support risk management: CE conformity, RoHS, REACH. Impact: ensures regulatory compliance across markets and simplifies audits. Application: procurement-friendly with documented declarations. Compatibility and data availability: ETIM classification EC002620; data sheets and manuals available for IS2 Enclosures Technical Catalogue 2024 and 1STM604121R0006.
Get a Quick Quote for a ABB ER1060K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ER1060K?
Enquire Now
FAQs
Installation begins with selecting either the kit or pre-assembled mounting option compatible with ABB IS2 enclosures. Secure the top container to the enclosure frame using standard mounting hardware, ensuring alignment with the 1000x600 mm footprint. Route power and signal cables through the dedicated troughs, then connect to panel devices. Verify clearances and conduct a functional test to confirm secure, interference-free cabling.
Key specs include a 1000x600 mm top-container footprint, 605 mm product net width, and 1000 mm net height with a 33.220 kg weight. It is made from pickled steel sheet with an orange peel finish (RAL 7035). Mounting options are kit or pre-assembled, and it carries CE, RoHS, and REACH declarations with 20250108 update dates.
Yes. The ER1060K is designed as a dedicated top container for cable connection within IS2 enclosures used in automation. Its 1000x600 mm footprint fits standard IS2 configurations, and it offers mounting flexibility to minimize on-site labor while improving cable organization and access for maintenance.
ER1060K carries a CE Declaration of Conformity, along with RoHS and REACH compliance. It also notes WEEE considerations and ETIM classification EC002620 for installation components, ensuring regulatory alignment across European markets and compatibility with industry data standards.
The ER1060K reduces installation and commissioning time through a standardized top-container design and mounting options. Improved cable routing lowers downtime, enhances reliability, and simplifies future upgrades. Compliance with RoHS/REACH minimizes regulatory risk, while the robust orange-peel finish extends service life in demanding industrial environments.
