ABB ER8010K Control and Automation Board - IS2 Enclosures
Part Number: ER8010K
Quick Summary
ER8010K is a control and automation board enclosure designed for IS2 automation enclosures in manufacturing environments. Engineers in process automation often struggle with cable routing, space constraints, and lengthy wiring procedures inside control cabinets. This ABB solution carries Declaration of Conformity - CE, RoHS compliance, and REACH declarations, ensuring regulatory readiness. With IS2 enclosure compatibility and a pre-assembled kit option, installation time is reduced while maintaining high safety and reliability. The design supports a 800x1000 mm footprint with scalable heights and a durable orange peel surface finish, delivering durable, compliant automation deployments and faster time-to-value for control projects.
Product Information
Extended Description

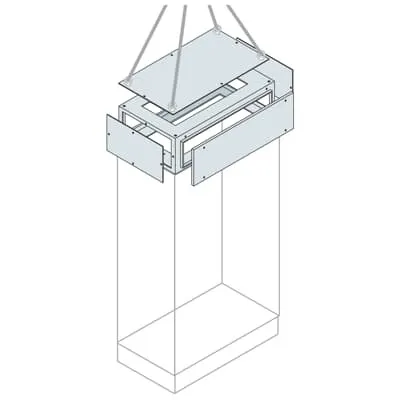

ER8010K ABB: Top container for cable connection 800x1000mm (WxD)
Sub-Function 3
Cable trough
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
10. Cable container
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B392
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Options Provided
2. Top container for cable connetion
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
815 mm
Product Net Height
800 mm
Product Net Depth / Length
1.000 mm
Product Net Weight
42.410 kg
Reference Depth/Length
1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
43.280 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002620 - Components for installation (enclosure/cabinet)
ETIM 9
EC002620 - Components for installation (enclosure/cabinet)
eClass
V11.1 : 27182811
Object Classification Code
U
Standards
See code for structure
Feature: Cable trough integrated sub-function within the enclosure; Business Impact: improves cable management, reduces the risk of wiring faults, and supports scalable layouts for growing automation systems; Application: IS2 Enclosures for Automation in machine controls and process automation. Feature: IS2 enclosure compatibility and product class alignment (Control and Automation Board); Business Impact: ensures plug-and-play compatibility with ABB automation cabinets, reducing engineering time and installation errors; Application: new builds and retrofits in manufacturing lines. Feature: Kit | Pre assembled mounting type; Business Impact: lowers on-site labor, speeds commissioning, and minimizes field fabrication; Application: panel builds with tight schedules. Feature: Pickled steel sheet material with Orange Peel, RAL 7035 finish; Business Impact: delivers robust corrosion resistance and long service life in harsh factory environments; Application: outdoor or harsh indoor installations where cabinet aesthetics and longevity matter. Feature: RoHS and REACH compliance plus CE Declaration of Conformity; Business Impact: regulatory risk mitigation and smoother audits; Application: any automation project requiring compliance documentation. Feature: Clear dimensional and weight specs (800x1000 mm footprint, net width 815 mm, height 800 mm, depth 1000 mm, weight 42.410 kg); Business Impact: accurate space planning and reliable transport/logistics; Application: system integration in IEC/ETIM-aligned installations.
Get a Quick Quote for a ABB ER8010K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ER8010K?
Enquire Now
FAQs
ER8010K is designed as a top container with IS2 Enclosures for Automation compatibility, featuring mounting as a kit or pre-assembled unit. The enclosure supports an 800x1000 mm footprint, with a cable trough integrated to streamline wiring paths. This ensures plug‑and‑play integration in new builds and efficient retrofits.
The ER8010K uses a pickled steel sheet with an orange peel finish in RAL 7035. This combination provides robust mechanical strength and enhanced environmental resistance in typical factory settings. The finish also helps reduce maintenance costs by resisting wear and staining over time.
Yes. It carries the CE Declaration of Conformity, and is RoHS compliant with a REACH declaration indicating no substances above 0.1 mass percentage. These certifications support regulatory compliance across regions and simplify procurement and audits for regulated industries.
Yes. The ER8010K accepts configuration options within the IS2 family, with reference heights ranging from 1400 mm to 2200 mm and reference widths at 800 mm or 1600 mm. It also offers scalable depth aligned to the 1000 mm reference, enabling flexible layout planning for varying control cabinet needs.
The product ships as a pre-assembled kit for faster on-site installation, with a top container designed for straightforward cable connection. Its modular footprint, durable finish, and regulatory compliance reduce commissioning time and maintenance costs, delivering a lower total cost of ownership and faster value realization in automation projects.
