ABB ER8050K Control and Automation Board - CE
Part Number: ER8050K
Quick Summary
ABB ER8050K is a control and automation board designed for IS2 enclosures, streamlining cable management in automation panels. Engineers often struggle with limited space, tangled cabling, and maintaining clearance for safe operation in busy control cabinets. This solution carries CE Declaration of Conformity, RoHS compliance, and REACH information to meet industry standards. Its pre-assembled mounting option and orange‑peel finish simplify installation while supporting safer, more reliable automation upgrades.
Product Information
Extended Description

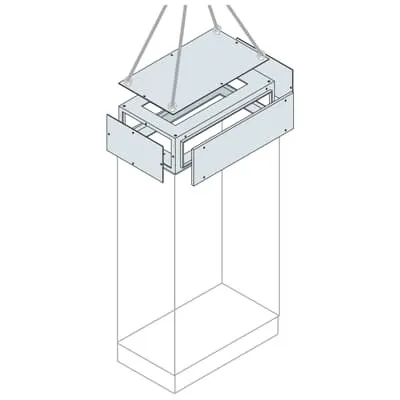

ER8050K ABB: Top container for cable connection 800x500mm (WxD)
Sub-Function 3
Cable trough
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
10. Cable container
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B392
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Options Provided
2. Top container for cable connetion
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
505 mm
Product Net Height
800 mm
Product Net Depth / Length
0.500 mm
Product Net Weight
23.250 kg
Reference Depth/Length
500 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
23.730 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002620 - Components for installation (enclosure/cabinet)
ETIM 9
EC002620 - Components for installation (enclosure/cabinet)
eClass
V11.1 : 27182811
Object Classification Code
U
Standards
See code for structure
Top container for cable connection provides a dedicated space at the cabinet top to house routing paths and entry points for power and control cables. Business impact: simplifies routing, reduces the risk of accidental unplugging, and shortens commissioning time by enabling plug-and-play cabling. Application: ideal for control panels within IS2 enclosures used in automated manufacturing lines. Suitable for IS2 Enclosures for Automation places the ER8050K in a standardized family of installation solutions, reducing part proliferation and supporting modular upgrades for faster project delivery and easier maintenance. Mounting Type Kit or Pre-assembled offers installation flexibility for new builds or retrofits, cutting field wiring errors and accelerating commissioning. Surface Finishing Orange Peel, RAL 7035 and Material Pickled steel sheet enhance durability in harsh industrial environments, reducing repaint cycles and extending service life. RoHS and REACH compliance, along with CE declarations, streamline regulatory approvals and documentation for audits, while the engineered weight and dimensions enable precise fitment and enclosure compatibility for scalable automation programs.
Get a Quick Quote for a ABB ER8050K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ER8050K?
Enquire Now
FAQs
Yes. The ER8050K is designed for IS2 Enclosures for Automation and can be mounted as a kit or in a pre-assembled configuration, enabling rapid integration into existing control cabinets. Its mounting versatility reduces field wiring errors and simplifies retrofits, making it suitable for both new builds and upgrade projects in automated production lines.
Key specs include an 800x500 mm footprint for the top container, a 505 mm net width, 800 mm net height, and a net weight around 23.25 kg. Constructed from pickled steel with an orange peel finish, it provides a robust cable trough that improves routing efficiency, minimizes interference, and supports safer, cleaner maintenance in busy automation panels.
ER8050K is ideal for control and automation board assemblies inside IS2 enclosures used in process automation and manufacturing lines. It functionally serves as the top container for cable connection, facilitating organized cabling in space-constrained control cabinets and improving serviceability during routine maintenance or system upgrades.
The ER8050K carries CE Declaration of Conformity and RoHS/REACH compliances, with REACH information indicating no substances above threshold levels. WEEE and ETIM classifications are supported for proper asset management. This helps with regulatory audits, product handling, and ensuring environmental and safety standards are consistently met.
Durable pickled steel with an orange‑peel finish resists industrial wear, reducing repainting and downtime. The kit‑based or pre‑assembled mounting options speed installation, lowering labor costs and commissioning time. Standardized IS2 compatibility enables scalable deployments across multiple lines, delivering predictable ROI through reduced maintenance, quicker upgrades, and improved panel reliability.
