ABB ER8061K Control and Automation Board - IS2 Enclosure
Part Number: ER8061K
Quick Summary
ABB ER8061K is a control and automation board designed for IS2 enclosure systems in industrial automation. This solution helps address common pain points such as wiring complexity, limited panel space, and lengthy assembly times. It carries CE conformity, RoHS compliance, and REACH declarations, with ETIM classification to streamline sourcing. By aligning with ABB's IS2 Enclosures for Automation standard, ER8061K supports scalable, maintenance-friendly panel builds and predictable lifecycle costs.
Product Information
Extended Description

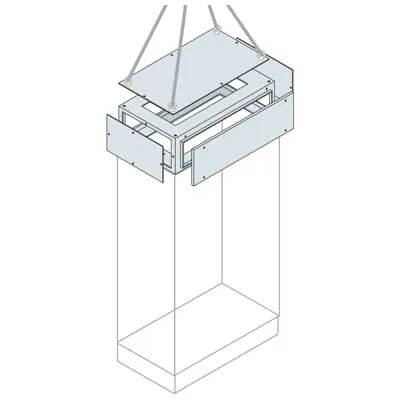

ER8061K ABB: Top container for cable connection 800x600mm (WxD)
Sub-Function 3
Cable trough
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
10. Cable container
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B392
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Options Provided
2. Top container for cable connetion
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
640 mm
Product Net Height
800 mm
Product Net Depth / Length
0.600 mm
Product Net Weight
27.080 kg
Reference Depth/Length
600 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
27.640 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002620 - Components for installation (enclosure/cabinet)
ETIM 9
EC002620 - Components for installation (enclosure/cabinet)
eClass
V11.1 : 27182811
Object Classification Code
U
Standards
See code for structure
Feature: Top container for cable connection (800x600) integrated with a cable trough. Benefit: Streamlines cable routing, reduces on-site wiring errors, and speeds panel assembly. Application: Ideal for IS2 Enclosures used in automation projects. The pre-assembled mounting option (Kit | Pre assembled) minimizes field work and guarantees consistent fit, reducing installation risk while accelerating time-to-value for new lines. The orange peel surface finishing (RAL 7035) on pickled steel delivers durable protection against routine factory wear, supporting longer service intervals and lower maintenance costs. Dimensional integrity is ensured by Product Net Width 640 mm, Product Net Height 800 mm, and Product Net Depth 0.600 m, enabling straightforward enclosure integration and modular expansion. The reference heights and widths (1400–2200 mm, 800 or 1600 mm) support scalable chassis layouts across multiple line configurations. CE conformity, RoHS, and REACH declarations, along with ETIM 8/9 classifications, simplify procurement, regulatory compliance, and cross-supplier interoperability. IS2 Environmental Catalog guidance and WEEE status help buyers align with corporate sustainability goals while maintaining cost efficiency.
Get a Quick Quote for a ABB ER8061K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ER8061K?
Enquire Now
FAQs
The ER8061K ships as a kit with pre-assembled mounting options, including a top cable connection container and integrated cable trough. This design minimizes on-site assembly work, ensures consistent alignment, and reduces wiring errors. To install, mount the unit within an IS2 enclosure, connect the pre-routed cables in the trough, and secure with the supplied hardware for a quick, repeatable setup.
Key specifications include a net width of 640 mm, net height of 800 mm, net depth of 0.600 m, and a weight of 27.080 kg. The top container for cable connection measures 800x600 mm, and the mounting is offered as a kit or pre-assembled. Materials are pickled steel with an orange peel finish (RAL 7035), designed to withstand industrial environments while maintaining panel integrity.
Yes, the ER8061K is designed for scalable IS2 enclosure configurations, supporting reference heights from 1400 to 2200 mm and reference widths of 800 or 1600 mm. Its pre-assembled mounting and cable management features help manage dense wiring, reduce installation time, and maintain organized, serviceable panel interiors in space-constrained environments.
The ER8061K carries CE conformity and RoHS compliance, with a REACH declaration. It also aligns with ETIM classifications for installation components and references IS2 enclosure standards. WEEE status indicates product handling guidance at end of life, supporting regulatory compliance and supplier qualification processes.
Maintenance impact is mitigated by organized cable routing, durable orange peel finish, and a robust pickled steel construction that withstands factory conditions. ROI benefits come from reduced installation time due to pre-assembled mounting, lower wiring errors, and predictable lifecycle costs through standardized IS2 enclosure compatibility and regulatory compliance, enabling faster project startup and fewer procurement delays.
