ABB ES1804FV4K Control Cabinet - IP55 Enclosure
Part Number: ES1804FV4K
Quick Summary
ABB ES1804FV4K is a pre-assembled control cabinet that protects electrical assemblies in harsh industrial environments. This design reduces installation time and space challenges by delivering a ready-to-mount enclosure with a cable container. It aligns with IEC 62208 and IEC 61439-1-2, carries a CE declaration, and provides IP55 protection for reliable operation in dusty or damp settings. For project value, it supports IS2 enclosure references and integrates with standard automation panels, delivering faster commissioning and improved maintenance access for industrial control systems.
Product Information
Extended Description

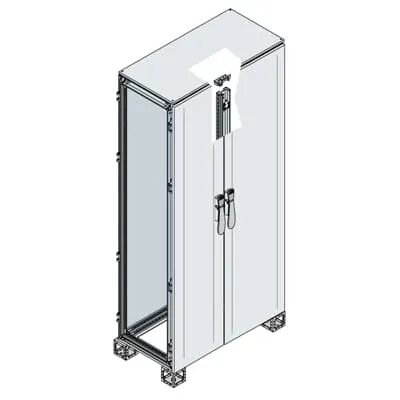

ES1804FV4K ABB: Cabinet with blind door 1800x1000x400mm (HxWxD) W=400mm
Configuration Type
5. Cabinet with cable container
Enclosure Type
Pre assembled - blind door cabinet with cable container
Mounting Type
Pre assembled
Product Type
5B5B10B150
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1010 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1040 mm
Product Net Weight
105.9760 kg
Reference Depth/Length
400 mm
Reference Height
1800 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
112.740 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Material and finish: The cabinet uses sheet steel with an orange peel finish (RAL 7035), delivering corrosion resistance and long service life in demanding environments. Business impact: lower maintenance costs and extended asset life; Application: suitable for petroleum, mining, and general manufacturing automation projects. Enclosure design and accessibility: Pre-assembled with a blind door and a dedicated cable container, plus a double door configuration. Business impact: reduces site wiring time, simplifies cable routing, and improves operator access; Application: ideal for control panels and electrical assemblies in tight plant layouts. Dimensional compatibility and load: Product net width 1010 mm, height 1911.5 mm, depth 1040 mm, with reference width 1000 mm and height 1800 mm; net weight 105.9760 kg. Business impact: ensures proper equipment fit and stable mounting for modular automation equipment; Application: supports standard sized drives, PLCs, and terminal blocks. Compliance and standards: RoHS and REACH declarations, ETIM EC000261/EC000261, eClass V11.1 27180101, and IEC/NEMA compatibility (IEC 62208, IEC 61439-1-2; NEMA 1, 3R, 12). Business impact: reduces regulatory risk and accelerates supplier qualification; Application: suitable for regulated manufacturing environments and international deployments. Environmental protection: IP55 rating provides dust and moisture protection in IS2 Enclosures Technical Catalogue contexts. Business impact: minimizes ingress-related failures; Application: robust control housing for harsh environments.
Get a Quick Quote for a ABB ES1804FV4K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1804FV4K?
Enquire Now
FAQs
Yes. The ES1804FV4K is designed as a pre-assembled enclosure compatible with IS2 enclosure references and compliant with IEC 61439-1-2, ensuring reliable integration with common control panels and modular automation components.
Key dimensions include product net width 1010 mm, net height 1911.5 mm, net depth 1040 mm, and reference dimensions of 1000 mm (width) by 1800 mm (height) and 400 mm (depth). The product net weight is 105.9760 kg, with package gross weight around 112.740 kg, which informs layout planning and crane/handling requirements.
Ideal for industrial control cabinets in manufacturing, process, and automation projects requiring rugged protection (IP55), pre-assembled wiring, and space-efficient layouts. It supports PLCs, drives, and terminal blocks within pre-assembled enclosures, improving commissioning times and reducing field wiring complexity.
The cabinet carries CE declaration and adheres to IEC 62208 and IEC 61439-1-2, with listed WEEE/REACH considerations. It complies with RoHS and REACH declarations, and supports ETIM and eClass classifications for supplier data consistency.
Pre-assembled construction with a cable container reduces on-site wiring time and maintenance access difficulties, lowering labor costs and downtime. The IP55 protection minimizes ingress-related failures, while robust materials and standard-compliant design extend service intervals and improve overall return on investment.
