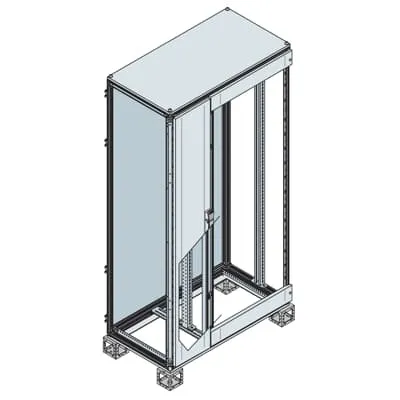

ABB ES1804MF4K Cabinet for compartments - IP55
Part Number: ES1804MF4K
Quick Summary
The ABB ES1804MF4K cabinet is a configurable enclosure that enables modular control and automation panels for industrial applications. Engineers often struggle with lengthy lead times and integration gaps when assembling multi-compartment cabinets that must meet IP ratings and safety standards. This enclosure delivers CE conformity IS2, RoHS, and REACH compliance alongside IP55 protection and IEC/NEMA compatibility, ensuring reliable operation in harsh environments. With pre-assembled configuration, sturdy sheet steel construction, and a robust orange-peel finish in RAL 7035, installation is faster and maintenance more predictable. Its modular design and compatibility with ABB IS2 enclosures streamline upgrades, delivering tangible value by reducing downtime and improving maintenance efficiency for plant operators.
Product Information
Extended Description
ES1804MF4K ABB: Cabinets for compartments 1800x400x1000mm (HxDxW) with Cable container W=400mm
Configuration Type
6. Cabinet for configuration with compartments
Enclosure Type
Pre assembled - cabinet for configuration with comprtments
Mounting Type
Pre assembled
Product Type
5B5B10B180
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1010 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1040 mm
Product Net Weight
93.8780 kg
Reference Depth/Length
400 mm
Reference Height
1800 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
99.870 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Pre-assembled configuration cabinet. Business Impact: Reduces on-site assembly time and variability, enabling faster project commissioning and consistent build quality. Application: Ideal for system integrators delivering modular control panels in automotive, process, and manufacturing environments. Feature: IP55 protection and sheet steel construction. Business Impact: Improves reliability in dusty or damp facilities, lowering maintenance costs and downtime. Application: Harsh production lines, outdoor cabinets, and service sheds that require robust enclosures. Feature: Orange‑peel surface finish in RAL 7035 and opaque door surfaces. Business Impact: Long-term durability with easy identification and reduced repainting needs, lowering lifecycle costs. Application: Visual standardization across plants and easy surface inspection during audits. Feature: Cable container W=400 mm and single door. Business Impact: Streamlined cable management reduces wiring errors and repair downtime during upgrades. Application: Control panels with dense cabling and frequent reconfiguration. Feature: RoHS, REACH, and CE IS2 declarations with IEC/NEMA compatibility. Business Impact: Regulatory compliance and safer operations minimize risk and potential penalties. Application: Global deployments requiring clean-room-grade documentation and universal standard adherence. Feature: Dimensions and weight data. Business Impact: Accurate space planning and safe transport, facilitating site installation and crane lift planning. Application: Projects with strict fitment envelopes and logistics constraints.
Get a Quick Quote for a ABB ES1804MF4K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1804MF4K?
Enquire Now
FAQs
ABB ES1804MF4K cabinets are pre-assembled with compartments and mounting provisions designed for quick installation. Plan for a 1010 mm width, 1911.5 mm height, and 1040 mm depth, while allowing space for cable management and access. The IP55 rating provides protection from dust and water ingress, ensuring reliable operation in demanding environments.
The enclosure complies with CE IS2 declarations, RoHS and REACH information, and a RoHS date of 20250108. It also aligns with IEC 62208 and IEC 61439-1-2, and supports NEMA 1, 3R, and 12 configurations, providing broad regulatory and compatibility coverage for global installations.
Yes. With an IP55 rating and rugged sheet steel construction, this cabinet is designed for dusty and damp settings. The orange-peel finish in RAL 7035 offers durable aesthetics and resistance to wear, while pre-assembled compartments simplify maintenance and future upgrades without compromising protection.
Pre-assembled configuration reduces on-site labor and commissioning time, accelerating time-to-operational status. Regulatory compliance (CE IS2, RoHS/REACH) lowers risk of non-compliance penalties, and standardized construction supports predictable maintenance, helping to lower total cost of ownership over the cabinet’s lifecycle.
The ES1804MF4K is designed for modular expansion with compartments and a 400 mm cable container, plus compatibility with ABB IS2 enclosures. Standardized dimensions and mounting platforms simplify retrofits and reconfigurations, while ETIM EC000261 classification and IS2 data sheets aid in seamless integration with existing automation infrastructure.
