ABB ES1804VC2K Control and Automation Board - IP55
Part Number: ES1804VC2K
Quick Summary
ABB ES1804VC2K is a control and automation cabinet for industrial machine automation. Many buyers struggle to source pre-assembled enclosures that meet IP ratings and IEC standards without delaying projects. This model delivers IP55 protection with CE conformity and aligns with IEC 62208 and IEC 61439-1/2, simplifying procurement and validation. With a glazed door cabinet and cable container, plus a durable sheet steel build finished in RAL 7035, it accelerates commissioning while supporting compliant, scalable control architectures.
Product Information
Extended Description

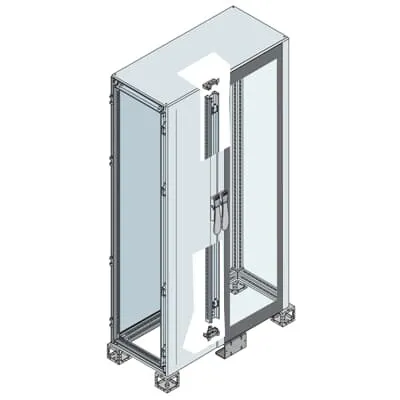

ES1804VC2K ABB: Cabinet with glass door1800x1000x400mm (HxWxD) W=200mm
Configuration Type
5. Cabinet with cable container
Enclosure Type
Pre assembled - glazed door cabinet with cable container
Mounting Type
Pre assembled
Product Type
5B5B10B150
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1010 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1040 mm
Product Net Weight
101.5580 kg
Reference Depth/Length
400 mm
Reference Height
1800 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
108.040 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
The ES1804VC2K ships as a pre-assembled cabinet with a glazed door and integrated cable container. This configuration reduces field assembly time and installation risk, cutting commissioning hours and improving first-run quality. In factory settings such as packaging lines and assembly automation, the reliable pre-wiring and cable management simplify changeovers and future upgrades. IP55 protection in accordance with IEC 60529 ensures dust and splash resistance on manufacturing floors, while IEC 62208 and IEC 61439-1/2 compliance provide a verifiable baseline for electrical safety and performance. The sheet steel construction with orange peel surface in RAL 7035 delivers durable, corrosion-resistant enclosures suitable for harsh environments, with a transparent door surface for quick visual inspections. In terms of size, the cabinet references 1800 mm height, 1000 mm width, and 400 mm depth, with net dimensions reflecting installed packaging and mounting allowances. Includes installation manuals and CE/RoHS/REACH documentation, supporting smooth procurement and commissioning. The IS2 Enclosures Technical Catalogue 2024 alignment and ETIM 8/9 classification help procurement teams find compatible components and ensure consistent supplier data.
Get a Quick Quote for a ABB ES1804VC2K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1804VC2K?
Enquire Now
FAQs
ES1804VC2K is a pre-assembled enclosure built to fit standard 1800x1000x400 mm footprints and features a glazed double door and integrated cable container. Its mounting type is pre-assembled, simplifying on-site integration with ABB components and compatible third-party devices through standard panel wiring practices. The cabinet supports IS2 catalog guidance and ETIM EC000261 classifications, helping engineers verify compatibility and streamline procurement.
Key specifications include a height of 1800 mm, width of 1000 mm (reference) with a product net width of 1010 mm, and a depth of 400 mm (reference). The cabinet uses sheet steel with an Orange Peel finish in RAL 7035, a double door, and an IP55 protection rating. It is compliant with IEC 62208 and IEC 61439-1/2 standards and carries RoHS/REACH declarations, ensuring safe operation in typical industrial environments.
Yes. The IP55 enclosure rating provides dust and splash resistance suitable for many manufacturing floors, while IEC 61439-1/2 and IEC 62208 compliance ensure electrical safety and reliability. The glazed door and cable container support clean cable management and quick fault isolation, making it ideal for machine builders, packaging lines, and automation enclosures that see frequent maintenance or configuration changes.
The cabinet aligns with CE declarations and RoHS/REACH information, including a REACH declaration and RoHS date. It references IEC standards IEC 62208 and IEC 61439-1/2, along with applicable NEMA ratings (1, 3R, 12). WEEE considerations place it in the Product Not in WEEE Scope category, and ETIM 8/9, eClass V11.1, and IS2 Enclosures Catalogue references support standardized data and procurement.
Maintenance benefits come from the pre-assembled design and cable container, which reduce field wiring activities and risk during changes. The durable sheet steel construction paired with a durable finish minimizes repainting and corrosion concerns. The IEC-compliant enclosure supports longer service intervals, lower downtime, and faster commissioning, delivering a favorable total cost of ownership for high-mix production lines and facilities investing in scalable automation architectures.
