ABB ES1804VC4K Cabinet - IP55 Enclosure
Part Number: ES1804VC4K
Quick Summary
ABB ES1804VC4K cabinet enables robust control and automation housing for industrial equipment in manufacturing settings. This enclosure protects sensitive electronics from dust, moisture, and tampering, helping you extend component life and reduce unplanned downtime. Engineers often struggle with cabling chaos and poor seal integrity; this pre-assembled, glazed-door cabinet with a dedicated cable container simplifies wiring and maintenance on site. Compliance is built-in with CE conformity and RoHS/REACH declarations, while IP55 protection and IEC 62208/ IEC 61439 standards meet industry regulations. By choosing this enclosure, you gain faster installation, safer operation, and maintained production throughput, while retaining flexibility for future upgrades and easy field service.
Product Information
Extended Description

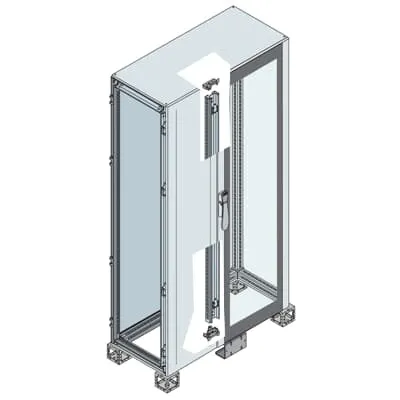

ES1804VC4K ABB: Cabinet with glass door1800x1000x400mm (HxWxD) W=400mm
Configuration Type
5. Cabinet with cable container
Enclosure Type
Pre assembled - glazed door cabinet with cable container
Mounting Type
Pre assembled
Product Type
5B5B10B150
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1010 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1040 mm
Product Net Weight
101.8870 kg
Reference Depth/Length
400 mm
Reference Height
1800 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
108.390 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Cabinet with cable container and glazed door; Impact: Neat cabling, faster maintenance, reduced field labor; Application: Electrical control panels on manufacturing lines and packaging equipment. Feature: Pre-assembled construction; Impact: Reduces on-site assembly time and misalignment risks; Application: OEM installations in bottling, conveying, and process lines. Feature: Sheet steel with orange peel finish in RAL 7035; Impact: Durable corrosion resistance and easy surface maintenance; Application: Harsh factory environments and cleanroom-adjacent spaces. Feature: IP55 protection; Impact: Ingress protection against dust and water jets, lowering failure rates; Application: Indoor and semi-exposed production areas. Feature: Glass double doors; Impact: Quick visual inspection without door removal, reducing downtime; Application: Controls cabinets in line-side enclosures and maintenance bays. Feature: RoHS and REACH compliant with CE declaration; Impact: Regulatory compliance reduces audit risk and supply-chain delays; Application: Procurement and regulatory filings for industrial automation projects.
Get a Quick Quote for a ABB ES1804VC4K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1804VC4K?
Enquire Now
FAQs
ABB ES1804VC4K is a pre-assembled, glazed-door enclosure designed for straightforward mounting in standard control room or protected production areas. Its IP55 rating protects against dust and water jets, reducing ingress risk during service. Ensure wall mounting or stand installation complies with local electrical codes and that the cable container is routed for accessible maintenance access.
Key specifications include external dimensions of 1800 mm (H) x 1000 mm (W) x 400 mm (D), reference width 1000 mm, product net width 1010 mm, and product net height 1911.5 mm. It uses sheet steel with an orange-peel finish (RAL 7035), features a double glazed door, and weighs approximately 101.9 kg. It is RoHS/REACH compliant and CE Declaration is provided.
Yes. The enclosure is designed to comply with IEC 62208 and IEC 61439-1/2, meeting recognized global requirements for low-voltage switchgear and controlgear assemblies. This alignment supports safe assembly, predictable performance, and smoother regulatory audits for industrial automation projects.
Yes. The cabinet is specified as a pre-assembled enclosure with a dedicated cable container, which simplifies wiring, improves tidy cable management, and reduces on-site labor. This feature is particularly valuable for complex control panels on conveyors, packaging lines, and process automation equipment.
The ES1804VC4K delivers faster installation, reduced field labor, and enhanced reliability due to better cable management and robust IP55 protection. With CE, RoHS, and REACH compliance, it lowers regulatory risk and maintenance costs, supports smoother audits, and minimizes downtime, supporting a favorable total cost of ownership in automation projects.
