ABB ES1804VK Cabinet - 1800x1000x400mm, IP55
Part Number: ES1804VK
Quick Summary
ABB ES1804VK Cabinet is a rugged control enclosure for industrial automation panels. It addresses installation time, wiring complexity, and space constraints in crowded factory environments. Protected to IP55 and CE certified, with IEC 62208/61439-1/2 compliance, it offers durable performance across demanding conditions. RoHS/REACH declarations and IS2 enclosure compatibility support compliance, while the glazed door and pre-assembled design simplify commissioning. For OEMs and panel builders, this enclosure delivers reliability, quicker time-to-value, and lower total cost of ownership. The cabinet dimensions align with IS2 enclosure standards and feature a transparent door surface for quick visual checks and safe maintenance. Its pre-assembled design reduces on-site labor while enabling straightforward wiring, cable management, and plug-and-play integration with ABB or third-party automation components.
Product Information
Extended Description

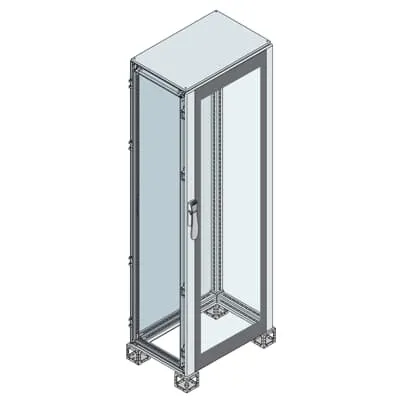

ES1804VK ABB: Cabinet with glazed door 1800x1000x400mm (HxWxD)
Configuration Type
1. Cabinet with single door
Enclosure Type
Pre assembled - cabinet with glazed door
Mounting Type
Pre assembled
Product Type
5B5B10B120
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1010 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1040 mm
Product Net Weight
92.3170 kg
Reference Depth/Length
400 mm
Reference Height
1800 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
98.210 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Pre-assembled cabinet with a glazed door dramatically reduces on-site assembly and wiring time, delivering faster commissioning and lower field labor costs. This translates to shorter project schedules and improved throughput on multi-line installations, making it ideal for machine builders and system integrators. The IP55 protection rating guards against dust and water spray, minimizing downtime in dirty or damp factory environments and supporting compliant operation in harsh production floors. The sheet steel construction with orange peel finish (RAL 7035) and a transparent door surface balance durability with quick visual checks for maintenance, reducing unscheduled downtime. With internal space sized for standard control gear, the 1800x1000x400 mm footprint provides room for PLCs, power supplies, and cabling, improving layout efficiency. Compliance with CE, RoHS, REACH, IEC 62208/61439-1/2, and NEMA 1, 3R, 12 standards reduces regulatory risk and simplifies supplier qualification. IS2 Enclosures Catalogue 2024 compatibility and ETIM/eClass classifications enable straightforward procurement integration and cross-brand interoperability, while the 1-piece packaging and a manageable net weight support safer handling and faster installation. Engineers benefit from reduced maintenance costs, reliable long-term performance, and a clear path to scalable automation architecture.
Get a Quick Quote for a ABB ES1804VK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1804VK?
Enquire Now
FAQs
Begin with confirming IS2 compatibility and the cabinet's 1800x1000x400 mm footprint. Use the pre-assembled mounting to reduce field assembly time, route cables through standard glands, and leverage the included installation manual 1STM604121R0006. Ensure IP55 seals are intact and connect to compliant power and control components. This approach minimizes site labor and accelerates commissioning.
Key specs include an enclosure size of 1800 mm high by 1000 mm wide by 400 mm deep, net dimensions of 1010 mm width and 1911.5 mm height, and a reference depth of 400 mm. It weighs about 92.3 kg and features a single glazed door, orange peel surface in RAL 7035, and sheet steel construction. The unit is IP55 protected and CE certified with RoHS and REACH declarations.
Yes. The cabinet is IP55 rated for dust and water protection, meeting IEC 60529 expectations. It complies with IEC 62208 and IEC 61439-1/2, and supports NEMA 1, 3R, 12 configurations. CE conformity, RoHS/REACH declarations, and WEEE considerations further reassure regulatory compliance. This makes it suitable for demanding industrial automation applications on factory floors and outdoor-adjacent installations.
ABB ES1804VK carries CE conformity, RoHS and REACH information with declared dates (20250108). It aligns with IEC 62208 and IEC 61439-1/2, and supports NEMA 1, 3R, 12. ETIM 8 EC000261 and eClass V11.1 27180101 classifications ensure interoperability with supplier ecosystems. WEEE status is noted as Product Not in WEEE Scope, simplifying environmental compliance steps.
The pre-assembled, glazed-door design reduces on-site labor and commissioning time, delivering faster ROI through shorter project cycles. The IP55 enclosure protects against dust and water, lowering maintenance costs. Its durable sheet-steel build and compatibility with IS2 enclosures simplify future upgrades and expansion, while standardized components (RoHS/REACH) minimize regulatory risk and spare-parts complexity for long-term service.
