ABB ES1805FV4K Cabinet - IP55, IEC 61439-1/2
Part Number: ES1805FV4K
Quick Summary
ABB ES1805FV4K cabinet is a rugged control and automation enclosure designed to protect electrical gear in harsh industrial environments. The design addresses the ongoing challenge of field assembly delays and mis-match between enclosures and cable management needs. It carries IEC 62208 and IEC 61439-1-2 compliance plus CE conformity, and features IP55 protection with a durable RAL 7035 finish. For procurement teams, the pre-assembled construction and integrated cable container simplify installation, while ensuring long-term reliability, safety, and serviceability for control panels and automation cabinets.
Product Information
Extended Description

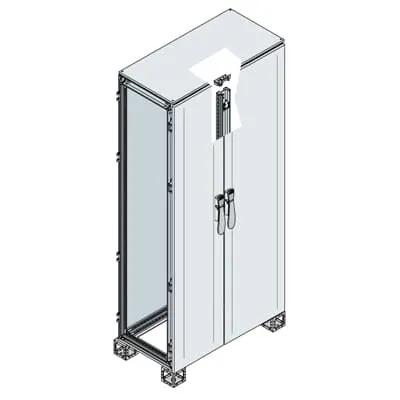

ES1805FV4K ABB: Cabinet with blind door 1800x1000x500mm (HxWxD) W=400mm
Configuration Type
5. Cabinet with cable container
Enclosure Type
Pre assembled - blind door cabinet with cable container
Mounting Type
Pre assembled
Product Type
5B5B10B150
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1010 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1040 mm
Product Net Weight
109.2280 kg
Reference Depth/Length
500 mm
Reference Height
1800 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
116.200 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature → Business Impact → Application: The ES1805FV4K is a pre-assembled enclosure with a dedicated cable container, which reduces on-site wiring time and minimizes field wiring errors, speeding up line startup and commissioning on automated production lines. This translates to lower labor costs and faster time-to-value for new equipment deployments. Application: control rooms and factory floors requiring quick integration of PLCs, drives, and I/O modules with clean cable routing. Feature → Business Impact → Application: IP55 rated protection provides reliable performance in dusty or light washdown environments, lowering the risk of equipment downtime and extending service life. Application: outdoor or semi-exposed installations on manufacturing sites, mezzanines, or process areas. Feature → Business Impact → Application: RAL 7035 orange peel finish and sheet steel construction deliver durable aesthetics and corrosion resistance, reducing repaint cycles and maintenance needs over the cabinet lifecycle. Application: compliant, long-term enclosures in ISO 9001 or Industry 4.0 initiatives. Feature → Business Impact → Application: double door configuration and pre-assembled mounting support fast access for maintenance and upgrades, improving OEE and reducing machine downtime. Application: high-availability control cabinets in food & beverage, packaging, and automotive segments. Feature → Business Impact → Application: ETIM EC000261 alignment ensures easy part identification and procurement, helping buyers manage spares and BOMs with confidence. Application: standardized enclosures for consistent stocking and cross-site installations.
Get a Quick Quote for a ABB ES1805FV4K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1805FV4K?
Enquire Now
FAQs
Begin by confirming external dimensions and internal mounting options align with your equipment. The ES1805FV4K is pre-assembled and includes a cable container, reducing field wiring tasks. Refer to the installation manual 1STM604121R0006 for steps, then mount the cabinet, route cables through the container, and connect to the control system. Ensure CE conformity and IP55 sealing during installation.
The cabinet delivers IP55 protection, RoHS and REACH compliance, and an IS2 enclosure standard reference. It uses sheet steel with an orange peel surface in RAL 7035, offering robust mechanical protection, corrosion resistance, and long service life in dusty or washdown facilities. ETIM EC000261 classification aids procurement and compatibility with your MRO programs.
Yes. The enclosure is designed to meet IEC 61439-1-2 and IEC 62208 standards, and is listed under NEMA 1, 3R, 12 categories for broad applicability. CE Declaration of Conformity is included, and the IP55 rating supports safe operation in challenging environments. This ensures safer installations and easier regulatory alignment for electrical panels.
The pre-assembled construction minimizes field labor and reduces installation risk by delivering a ready-to-wire cabinet with a dedicated cable container. This simplifies cable routing, improves organization, and shortens commissioning time. The double-door configuration provides quick access for maintenance and upgrades, supporting lower downtime and faster ramp-up in manufacturing lines.
Expected ROI comes from reduced installation time, fewer field wiring errors, and lower maintenance due to IP55 protection and robust build. The cabinet’s CE and RoHS/REACH compliance lowers regulatory risk, while ETIM alignment streamlines spare parts management. Long-term service life and predictable performance reduce unexpected downtime and total cost of ownership.
