ABB ES1805MF2K Cabinet - IP55 Enclosure, IEC 61439
Part Number: ES1805MF2K
Quick Summary
ABB ES1805MF2K is a rugged enclosure designed for control and automation cabinets in industrial environments. Engineers often confront limited installation space, challenging ingress protection, and mounting complexity. This model delivers IP55 protection, CE conformity, and compliance with IEC 61439-1-2 and IEC 62208, ensuring safety and performance. With preassembled compartments and a durable sheet steel body, it reduces on-site assembly time and simplifies procurement for panel builders. The orange peel surface in RAL 7035 adds durability and visibility, while compatibility with IS2 enclosures catalog supports future upgrades for ABB automation systems. RoHS and REACH declarations further streamline regulatory compliance for global deployments.
Product Information
Extended Description

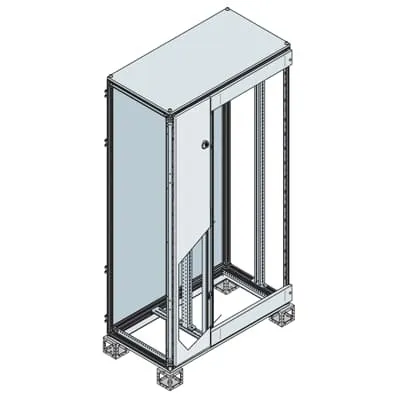

ES1805MF2K ABB: Cabinets for compartments 1800x500x1000mm (HxDxW) with Cable container W=200mm
Configuration Type
6. Cabinet for configuration with compartments
Enclosure Type
Pre assembled - cabinet for configuration with comprtments
Mounting Type
Pre assembled
Product Type
5B5B10B180
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1010 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1040 mm
Product Net Weight
91.9880 kg
Reference Depth/Length
500 mm
Reference Height
1800 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
97.860 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature → Business Impact → Application: IP55 protection guards sensitive control electronics against dust ingress and water spray, minimizing unplanned downtime and maintenance costs in dusty or humid environments. This translates to higher uptime for factory automation lines and safer panel operation in harsh facilities. Feature → Business Impact → Application: Preassembled cabinet with compartments accelerates installation and reduces field labor, enabling faster project turnover and predictable budgeting for panel builders and integrators working on process control systems. Feature → Business Impact → Application: Sheet steel construction with Orange Peel finish (RAL 7035) delivers robust mechanical protection and long-term durability, lowering repaint and corrosion concerns in outdoor or semi-exposed installations. Feature → Business Impact → Application: IEC 61439-1-2 and IEC 62208 compliance, along with CE marking, simplify procurement and regulatory approvals for multinational manufacturing sites, supporting global rollouts and standardization. Feature → Business Impact → Application: Compact dimensions and modular compartment design optimize space planning in control rooms and switchgear cabinets, enabling organized cable management and easier future upgrades for ABB automation systems. Feature → Business Impact → Application: RoHS/REACH compliance and documented IS2 catalogue alignment reduce regulatory risk and accelerate spares provisioning, improving total cost of ownership for end users and service teams.
Get a Quick Quote for a ABB ES1805MF2K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1805MF2K?
Enquire Now
FAQs
The ES1805MF2K is a preassembled enclosure designed for rapid on-site deployment. Key considerations include IP55 protection for dusty or damp environments, CE conformity, and compliance to IEC 61439-1-2 and IEC 62208. Refer to the installation manual 1STM604121R0006 for mounting guidelines and ensure compatible wall or rack mounting to support the 1010 mm width and 1911.5 mm height.
Core specs include a sheet steel enclosure with Orange Peel finish in RAL 7035, single door, and a preassembled cabinet for compartments. External dimensions approximate 1010 mm width x 1911.5 mm height x 1040 mm depth, with a net weight around 92 kg. The structure supports a 200 mm cable container, and it aligns with RoHS/REACH requirements and IS2 catalog standards.
Yes. The ES1805MF2K is designed for control and automation panels, featuring compartments and a configuration-friendly layout ideal for ABB automation systems. Its IP55 protection, CE certification, and compatibility with IS2 enclosures support reliable installation in industrial environments, enabling organized cable management and scalable future upgrades.
This enclosure carries IP55 protection, CE conformity, and compliance with IEC 61439-1-2 and IEC 62208, plus NEMA 1, 3R, and 12 certifications. RoHS information and REACH declarations are provided, simplifying regulatory clearance for global deployments and ensuring safety and environmental compliance across sites.
The preassembled design reduces installation labor and commissioning time, lowering initial project costs. Durable sheet steel and ROHS/REACH compliance minimize maintenance and future refurbishment needs. With ISO-aligned standards and access to IS2 catalogs, customers can streamline spares provisioning and minimize downtime, delivering predictable total cost of ownership over the cabinet’s lifecycle.
