ABB ES1806FV2K Cabinet - IP55 Enclosure, 1800x1000x600
Part Number: ES1806FV2K
Quick Summary
ABB ES1806FV2K cabinet provides rugged control enclosure for industrial automation. Engineers face tight installation windows and wiring complexity that slow projects. This enclosure complies with CE conformity and IP55 protection, and offers IEC 62208 and IEC 61439-1-2 compatibility, ensuring regulatory and safety alignment. As a pre-assembled cabinet with a built-in cable container and double doors finished in orange peel RAL 7035, it speeds site deployment and simplifies maintenance. The robust sheet steel construction supports heavy-duty applications, reducing field wiring errors while enabling quick upgrades. Designed for IS2 enclosures cataloging, it fits modern control panels, drives, and power electronics with predictable install times and lower life-cycle costs.
Product Information
Extended Description

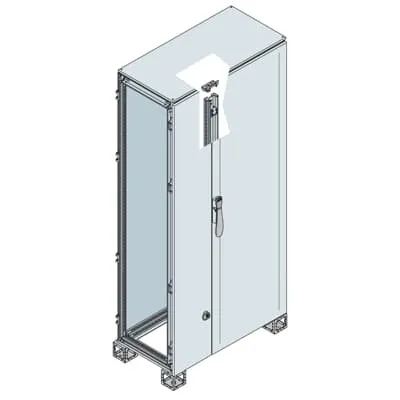

ES1806FV2K ABB: Cabinet with blind door 1800x1000x600mm (HxWxD) W=200mm
Configuration Type
5. Cabinet with cable container
Enclosure Type
Pre assembled - blind door cabinet with cable container
Mounting Type
Pre assembled
Product Type
5B5B10B150
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1010 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1040 mm
Product Net Weight
112.0920 kg
Reference Depth/Length
600 mm
Reference Height
1800 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
119.247 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
The ES1806FV2K is a pre-assembled cabinet with a cable container, delivering faster installation and cleaner wire routing, which translates to reduced commissioning time and fewer wiring faults in the field. Its IP55-rated enclosure protects critical drives and controllers from dust and moisture exposure, improving uptime and extending component life in demanding manufacturing environments. Built from sheet steel with an orange peel finish in RAL 7035, the cabinet combines durability with visible labeling and corrosion resistance for long-term reliability in production halls and automated lines. With double doors and a compact reference footprint of 1800x1000x600 mm, it integrates smoothly with existing control panels while allowing quick access for maintenance and upgrades. Compliance features such as CE, RoHS, and REACH support regulatory audits and procurement processes, reducing risk and accelerating project timelines. Overall, the configuration type, cable container, and pre-assembled mounting deliver measurable savings in install time, maintenance, and total cost of ownership for panel builders and end users.
Get a Quick Quote for a ABB ES1806FV2K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1806FV2K?
Enquire Now
FAQs
The ES1806FV2K is a pre-assembled cabinet with a cable container, designed to drop into standard factory layouts. It matches reference dimensions of 1800x1000x600 mm (HxWxD) and a net width of 1010 mm, with a 112 kg weight. Use compatible DIN rails, mounting frames, and the supplied mounting holes; the cabinet integrates with common ABB control panels and power electronics with predictable fit and wiring routes.
Key performance factors include IP55 protection, robust sheet steel construction, and a double-door design that eases maintenance access. The pre-assembled configuration minimizes field wiring errors and commissioning time, while the orange peel finish in RAL 7035 aids corrosion resistance and visibility of internal components. Together these features reduce unplanned downtime and extend component life in typical manufacturing environments.
The cabinet carries IP55 protection, making it suitable for moderately dusty and damp industrial spaces. It is not intended for direct exposure to heavy rain or washdown without additional protection. The durable coating (RAL 7035) and sealed doors help resist dust ingress and corrosion, supporting reliable operation in standard factory floors and process lines.
This cabinet carries CE declarations, RoHS and REACH information, and adheres to IEC 62208 and IEC 61439-1-2, with compatible NEMA configurations (NEMA 1, 3R, 12). ETIM and eClass classifications are provided, and WEEE is noted as not in scope. These certifications simplify procurement, regulatory audits, and interoperability with compatible equipment.
ROI benefits stem from faster installation, fewer wiring errors thanks to the integrated cable container, and reduced maintenance interventions due to robust IP55 protection and durable material. The pre-assembled design shortens project timelines, while CE/RoHS/REACH compliance lowers risk and potential compliance costs, delivering long-term cost savings for panel builders and end users.
