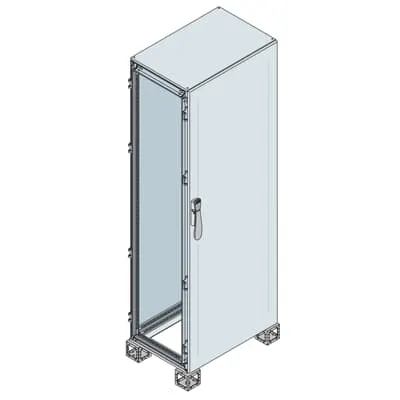

ABB ES1806K Cabinet with Blind Door - IP55 Enclosure
Part Number: ES1806K
Quick Summary
ABB ES1806K is a control and automation cabinet for industrial electrical installations. Engineers often struggle with pre-assembled enclosures that don’t fit tight plant layouts or fail to meet safety and regulatory expectations. This model delivers CE conformity, IP55 protection, and IEC 61439-1-2/NEMA compatibility to support reliable operation in harsh environments. As a pre-assembled sheet steel enclosure with an orange peel finish in RAL 7035, it accelerates installation, simplifies compliance, and provides scalable mounting for control panels, PLCs, and other automation components in modern manufacturing plants.
Product Information
Extended Description
ES1806K ABB: Cabinet with blind door 1800x1000x600mm (HxWxD)
Configuration Type
1. Cabinet with single door
Enclosure Type
Pre assembled - cabinet with blind door
Mounting Type
Pre assembled
Product Type
5B5B10B110
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1010 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1040 mm
Product Net Weight
103.7360 kg
Reference Depth/Length
600 mm
Reference Height
1800 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
110.357 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Pre assembled cabinet with blind door and single door configuration → Business Impact: Reduces field assembly time and minimizes on-site wiring errors, speeding up commissioning → Application: Ideal for control panels in manufacturing lines where space is constrained and quick deployment is essential. Feature: Sheet steel construction with orange peel, RAL 7035 finish → Business Impact: Delivers durable corrosion resistance and easy maintenance, lowering life-cycle costs → Application: Enclosures exposed to dust, humidity, and routine cleaning in process environments. Feature: IP55 protection rating (IEC 60529) → Business Impact: Ensures reliable protection against dust ingress and water spray, reducing downtime due to seal failures → Application: Enclosures in semi-dusty production areas or wash-down zones. Feature: RoHS information and REACH declaration → Business Impact: Regulatory compliance is streamlined, minimizing risk of supply-chain delays during audits → Application: Electronics housing for compliant automation systems and OEM installations. Feature: CE Declaration of Conformity and ETIM/eClass classifications → Business Impact: Simplifies procurement and standardization across multi-site projects → Application: Centralized dispatch to engineering teams and procurement catalogs. Feature: Dimensions 1800x1000x600 mm with reference dimensions 1800x1000x600 and net weight 103.736 kg → Business Impact: Predictable footprint for rack integration and transport planning, supporting safer lifting and handling → Application: Large control cabinets in machine cells and line-side automation stations.
Get a Quick Quote for a ABB ES1806K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1806K?
Enquire Now
FAQs
Yes. The ES1806K is designed as a preassembled cabinet with dimensions 1800x1000x600 mm and aligns with IS2 enclosure standards. Its single-door configuration and pre-mounted components streamline onsite assembly, while its IEC 62208/61439-1-2 compatibility supports consistent panel integration across projects.
The cabinet uses sheet steel with an orange peel finish (RAL 7035) and provides IP55 protection, protecting internal equipment from dust and water ingress. Its RoHS-compliant materials and REACH declaration further ensure safe operation, while CE conformity supports regulatory and safety requirements in factory settings.
Factory automation control panels, electrical rooms, and OEM equipment housings benefit most. The preassembled design reduces field wiring and assembly time, while the durable enclosure supports PLCs, drives, and control electronics in environments with temperature and dust exposure.
The enclosure carries CE conformity and a RoHS/REACH compliance profile, with WEEE categorization indicating non-WEEE scope. IEC standards IEC 62208 and IEC 61439-1-2, along with NEMA compatibility, ensure broad regulatory alignment for international deployments.
Pre-assembled construction reduces field wiring errors and maintenance downtime, while the standard finish and robust materials lower long-term maintenance costs. ETIM EC000261 and eClass classifications ease procurement, enabling faster quotes and consistent component sourcing across multi-site projects.
