ABB ES1806VC2K Cabinet - 1800x1000x600 mm IP55
Part Number: ES1806VC2K
Quick Summary
ABB ES1806VC2K Cabinet is a pre-assembled control enclosure designed for robust automation installations in industrial environments. It provides a reliable home for PLCs, drives, and I/O in a compact, glass-door cabinet. Engineers often struggle with secure cable management, ingress protection, and lengthy installation times, which this enclosure addresses with a cable container and a ready-to-install pre-assembled design. This cabinet carries CE conformity, IP55 protection, and IEC standards to ensure safe operation and regulatory compliance across regions. By pairing durable sheet steel construction with a durable orange-peel surface finish and transparent door surfaces, it supports long service life while simplifying maintenance. Ideal for control panels, IS2 enclosure applications, and factory automation projects in manufacturing settings.
Product Information
Extended Description

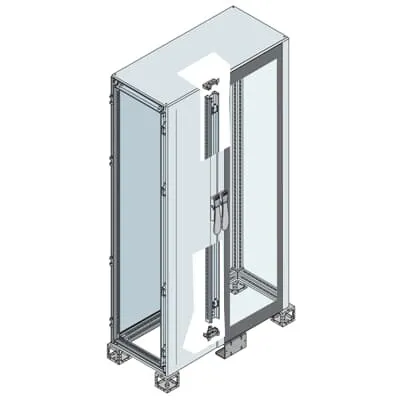

ES1806VC2K ABB: Cabinet with glass door1800x1000x600mm (HxWxD) W=200mm
Configuration Type
5. Cabinet with cable container
Enclosure Type
Pre assembled - glazed door cabinet with cable container
Mounting Type
Pre assembled
Product Type
5B5B10B150
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1010 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1040 mm
Product Net Weight
108.4960 kg
Reference Depth/Length
600 mm
Reference Height
1800 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
115.421 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Pre-assembled glazed door cabinet with cable container → Business Impact: Reduces installation time and on-site wiring complexity, accelerating project timelines and lowering labor costs. Application: Suitable for fast-track control panels and automation enclosures in manufacturing lines. Feature: IP55 protection rating (IEC 60529) → Business Impact: Delivers dependable ingress protection against dust and water jets, minimizing unplanned downtime. Application: Industrial environments with wash-down or dusty atmospheres, including packaging and process lines. Feature: Sheet steel construction with orange peel, RAL 7035 finish → Business Impact: Combines durability with corrosion resistance and easy maintenance, extending service life and reducing repainting costs. Application: Outdoor or semi-enclosed installations in harsh facilities. Feature: Double-glazed door with transparent surface → Business Impact: Improves visibility for diagnostics and status checks without compromising security. Application: Visual inspection points for control panels and drive systems. Feature: Mounting as a pre-assembled enclosure → Business Impact: Simplifies integration with existing frames and standard supports, lowering installation risk. Application: Retrofit projects and new builds requiring quick cabinet deployment. Feature: Compliance and standards package (CE, IEC 62208/61439-1-2, ETIM EC000261) → Business Impact: Reduces compliance testing time and accelerates procurement cycles. Application: Global manufacturing plants needing certified enclosures for safe, regulatory-aligned automation.
Get a Quick Quote for a ABB ES1806VC2K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1806VC2K?
Enquire Now
FAQs
The ES1806VC2K is a pre-assembled cabinet with a cable container, designed to fit standard control panels and mounting rails. Its dimensions (1800x1000x600 mm) and mounting type align with common IS2 enclosure practices, while the glazing door simplifies status checks. For integrations, verify fit with your frame, cable trays, and panel depths to ensure a clean, compliant install.
Key specs include IP55 protection per IEC 60529, a sheet steel construction with orange peel finish, and a double glazed door. It weighs about 108.5 kg net and accommodates a cable container design for organized wiring. It carries CE conformity and references IEC 62208/IEC 61439-1-2 standards, supporting safe, durable operation in industrial environments.
Yes. This cabinet is listed under ETIM EC000261 and supports IEC 62208 and IEC 61439-1-2 classifications, aligning with IS2 enclosures technical standards. Its glazed door and cable container design are compatible with typical IS2 installation practices, making it a strong fit for modern control rooms and automation cabinets.
The ES1806VC2K carries a CE Declaration of Conformity and REACH/RoHS compliance. It adheres to international standards including IEC 62208 and IEC 61439-1-2, with ETIM classification EC000261 for enclosure/cabinet (empty). These certifications simplify regulatory reviews and support global procurement.
The pre-assembled, glass-door design reduces field installation time and wiring errors, accelerating project delivery and lowering labor costs. IP55 protection minimizes ingress-related maintenance, while durable sheet steel minimizes repainting and corrosion-related expenses. Overall, the enclosure supports longer service intervals and lower lifecycle costs for automated plants.
