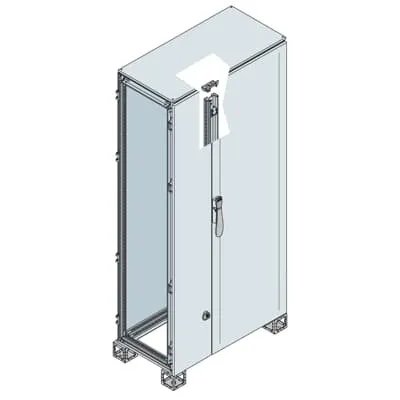

ABB ES1808FV2K Cabinet Enclosure - IP55 Rating
Part Number: ES1808FV2K
Quick Summary
ABB ES1808FV2K cabinet enclosure is a pre-assembled control cabinet for industrial automation panels and supports rapid deployment in harsh environments. Customers often face delays from on-site assembly, unverified cable routing, and inconsistent finishes. With IP55 protection, CE declaration, and compliance to IEC 61439-1-2, it delivers reliable safety and performance. The rugged steel construction features an orange peel finish (RAL 7035) and double doors, simplifying installation and ongoing maintenance, while RoHS and REACH declarations ensure regulatory compliance. This combination helps integrators shorten commissioning times, reduce field labor, and ultimately lower total cost of ownership for machine builders and panel shops.
Product Information
Extended Description
ES1808FV2K ABB: Cabinet with blind door 1800x1000x800mm (HxWxD) W=200mm
Configuration Type
5. Cabinet with cable container
Enclosure Type
Pre assembled - blind door cabinet with cable container
Mounting Type
Pre assembled
Product Type
5B5B10B150
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1010 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1040 mm
Product Net Weight
119.0040 kg
Reference Depth/Length
800 mm
Reference Height
1800 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
126.600 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Configuration Type and efficient cable management drive faster project delivery. Feature: Cabinet with cable container and pre assembled mounting. Business Impact: Reduces on-site wiring time and minimizes misrouting, boosting installation speed. Application: Automation panels in manufacturing lines where tight cable routing matters and rapid commissioning is essential. The design supports scalable architectures for future expansion. Feature → Business Impact → Application. Feature: Pre assembled blind door cabinet with cable container. Business Impact: Eliminates field assembly uncertainties and ensures consistent assembly quality across sites. Application: System integrators delivering turnkey control cabinets to end users in automotive, packaging, and process industries. Feature: Sheet steel construction with orange peel finish in RAL 7035. Business Impact: Improves durability, corrosion resistance, and visual uniformity while reducing maintenance cycles. Application: Environments with exposure to dust and humidity where coatings simplify cleaning and inspection. Feature: Double doors and cable containment integration. Business Impact: Enhances access and simplifies ongoing maintenance, lowering downtime during upgrades. Application: Panel upgrades, retrofits, and modular control rooms. Feature: Compliance and standards alignment. Business Impact: Supports CE, RoHS, REACH declarations and IEC 61439-1-2 compliance to meet regulatory and customer requirements. Application: Industries governed by strict electrical and safety standards, including PLC enclosures and motor control centers. Feature: ETIM classification and IS2 catalogue compatibility. Business Impact: Enables accurate product classification and streamlined procurement for distributors and systems integrators. Application: B2B sales workflows and e-commerce integration for ABB IS2 enclosures.
Get a Quick Quote for a ABB ES1808FV2K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1808FV2K?
Enquire Now
FAQs
The ES1808FV2K is a pre-assembled cabinet with a blind dual-door design and an integrated cable container, simplifying on-site wiring. It supports standard mounting patterns and is compatible with IS2 enclosure catalog expectations. For installation, verify inner cable routing, attach to pre-positioned mounting rails, then connect feeds as per CE/IEC 61439-1-2 guidelines. The ready-to-install design minimizes field labor and ensures consistent assembly quality across sites.
Key specs include external dimensions 1800x1000x800 mm (HxWxD) with a reference width of 1000 mm and reference height of 1800 mm, net width 1010 mm, net height 1911.5 mm, and net depth 1040 mm. Weight is about 119.0 kg, with a gross package weight around 126.6 kg. The enclosure provides IP55 protection, double doors, and a cable container, all built from sheet steel with an orange peel finish (RAL 7035).
Yes. The cabinet features IP55 protection per IEC 60529, a robust sheet steel build, and a durable orange peel coating (RAL 7035). It complies with CE and RoHS/REACH declarations, and is designed to support IEC 61439-1-2 and ETIM EC000261 classifications, making it suitable for demanding manufacturing floors, outdoor-proximate installations, and high-dust environments.
The ES1808FV2K aligns with IEC 62208 and IEC 61439-1-2, supports NEMA 1, 3R, 12 configurations, and carries CE conformity. RoHS and REACH declarations accompany the product, along with WEEE classification considerations. A CE Declaration of Conformity IS2 is provided, and the enclosure is listed within ETIM 8/9 EC000261 for accurate data classification.
The pre-assembled design and integrated cable container save field labor and commissioning time, reducing installation costs and downtime. Durable coatings and IP55 protection lower maintenance needs, while CE/RoHS/REACH compliance minimizes regulatory risk. For system integrators and machine builders, this translates to faster project delivery, fewer on-site issues, and a stronger ROI over the enclosure’s lifecycle.
