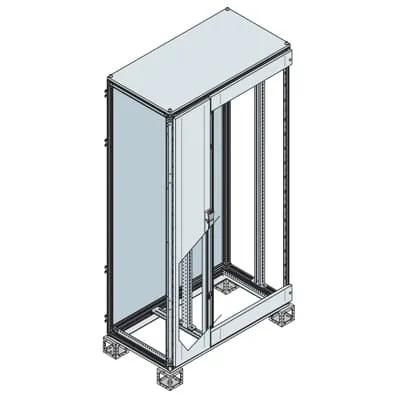

ABB ES1808MF4K Cabinet for compartments - IP55 rated
Part Number: ES1808MF4K
Quick Summary
ABB ES1808MF4K cabinet is a pre-assembled enclosure for modular control panels in industrial automation. In retrofit and relocation projects, engineers contend with time consuming on site assembly and mismatched compartment layouts. This cabinet delivers IP55 protection, CE conformity, and IEC 62208 / IEC 61439-1-2 plus NEMA compatibility to simplify compliance and installation. The IS2 Enclosures Technical Catalogue 2024 alignment and ETIM classifications streamline procurement, while the orange peel finish in RAL 7035 provides durable aesthetics and corrosion resistance. With a cable container and ample internal space, it supports scalable configurations and faster commissioning, driving lower total installed cost and safer operation. This makes it a solid choice for OEMs and integrators seeking standardization and faster time to market.
Product Information
Extended Description
ES1808MF4K ABB: Cabinets for compartments 1800x800x1000mm (HxDxW) with Cable container W=400mm
Configuration Type
6. Cabinet for configuration with compartments
Enclosure Type
Pre assembled - cabinet for configuration with comprtments
Mounting Type
Pre assembled
Product Type
5B5B10B180
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1010 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1040 mm
Product Net Weight
107.7240 kg
Reference Depth/Length
800 mm
Reference Height
1800 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
114.600 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Pre assembled cabinet with compartments. Benefit: Reduces on site labor and assembly errors, enabling faster deployment of modular control panels. Application: Factory floors and system integrators needing rapid cabinet readiness for new lines. Feature: IP55 protection and sheet steel construction. Benefit: Enhanced dust and water protection for harsh environments, reducing maintenance and replacement costs. Application: Automotive assembly, packaging, and process industries where reliability is critical. Feature: Orange Peel surface finish in RAL 7035. Benefit: Durable exterior that resists scratches and corrosion while maintaining a consistent brand appearance. Application: Outdoor and semi exposed installations or clean room adjacencies requiring color standardization. Feature: Cable container width 400 mm. Benefit: Streamlined cable routing and organized terminations, which shorten commissioning and simplify future modifications. Application: Control cabinet wiring for power and I/O with scalable layouts. Feature: Internal geometry and reference dimensions 1800x1000x800 mm with net width 1010 mm, net height 1911.5 mm, and depth 1040 mm. Benefit: Comfortable space for compartments and mature cable management, reducing heat buildup and improving accessibility. Application: OEM panel builders and system integrators delivering reliable, maintainable control cabinets. Feature: RoHS, REACH, and WEEE compliance with is 2 enclosures 2024 catalogue alignment. Benefit: Regulatory peace of mind and easier supplier audits. Application: Global deployment where regulatory adherence and traceability impact procurement.
Get a Quick Quote for a ABB ES1808MF4K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1808MF4K?
Enquire Now
FAQs
Yes. ES1808MF4K is designed as a pre assembled cabinet for compartments compatible with IS2 enclosures and ABB control system architectures. Its configuration type and mounting type support straightforward integration, reducing on site adjustments. The ETIM classification EC000261 aligns procurement and installation teams with standard ABB enclosure practices, ensuring predictable fit across projects.
External dimensions reference 1800 mm height, 1000 mm width, and 800 mm depth. Net dimensions provide 1010 mm width, 1911.5 mm height, and 1040 mm depth for internal space and mounting rails. Cable container width is 400 mm. These figures support compartment planning, wiring routes, and accessory fit for modular control panels.
The enclosure meets IP55 protection, protecting against dust ingress and limited water exposure. It uses sheet steel with an orange peel finish in RAL 7035, offering durable exterior protection and long term corrosion resistance. This makes it suitable for factory floors, mechanical rooms, and outdoor-adjacent installations where reliability is essential.
The cabinet carries CE conformity declarations and RoHS/REACH information with dates. It references WEEE classification and is compatible with IEC 62208, IEC 61439-1-2, and NEMA 1, 3R, 12 standards. ETIM 8/9 classifications and IS2 catalogue alignment further support compliant procurement and consistent performance across jurisdictions.
Pre assembled configuration reduces installation time and minimizes field wiring errors, shortening project timelines and labor costs. Durable orange peel coating, RoHS/REACH compliance, and robust IP55 protection extend service life and reduce maintenance intervals. For OEMs and integrators, standardized parts simplify spare part inventories and improve serviceability across multi site deployments.
