ABB ES1810BK Cabinets - IP55 Enclosure (IEC 60529)
Part Number: ES1810BK
Quick Summary
ABB ES1810BK Cabinets are rugged enclosures designed to shield electrical control and automation panels in demanding industrial environments. They address common site pains like space constraints, wiring complexity, and maintenance downtime. This model adheres to IP55 protection and CE conformity, and aligns with IEC 62208 and IEC 61439-1-2 for safe, compliant panel assemblies. Pre-assembled with a double-door, overlapping closure, these cabinets streamline installation and reduce field wiring errors. Finished in orange peel RAL 7035, IS2 catalog compatibility, and RoHS/REACH compliant, they deliver reliable service life and simpler procurement for plant-wide control systems.
Product Information
Extended Description

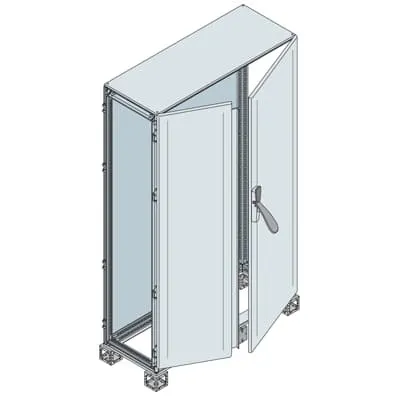

ES1810BK ABB: Cabinets with blind overlapping closure 1800x1000x1000mm (HxWxD)
Configuration Type
2. Cabinet with double door and overlapping closure
Enclosure Type
Pre assembled - cabinet with double blind door and overlapping closure
Mounting Type
Pre assembled
Product Type
5B5B10B140
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1010 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1040 mm
Product Net Weight
118.120 kg
Reference Depth/Length
1000 mm
Reference Height
1800 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
125.660 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Double-door, overlapping closure cabinet enables faster installation and consistent build quality, reducing commissioning time and field wiring mistakes for automated lines. This translates to higher line uptime and lower labor costs during panel assembly. IP55 protection ensures robust ingress protection against dust and water jets in harsh factory floors and outdoor areas, cutting unplanned maintenance and safeguarding sensitive electronics. The sheet steel construction with an orange-peel finish in RAL 7035 delivers a durable exterior that resists corrosion and minimizes repaint cycles, lowering long-term maintenance costs while preserving enclosure aesthetics. Pre-assembled mounting simplifies start-up and reduces on-site configuration, enabling faster project delivery and easier retrofits across multiple sites. CE conformity, IEC 62208-61439-1-2 compliance, and NEMA compatibility provide cross-border acceptance and regulatory assurance, reducing compliance risk. The IS2 Enclosures Technical Catalogue 2024 alignment ensures standardization across your control architecture, while RoHS and REACH declarations support responsible sourcing. Heavy-duty dimensions and weights, including a 1800 mm reference height and 1000 mm reference width, offer stable mounting for mounted power distribution and control hardware, enabling reliable service over the product life cycle.
Get a Quick Quote for a ABB ES1810BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1810BK?
Enquire Now
FAQs
These cabinets are pre-assembled with a pre-mounted mounting system and a 1800x1000x1000 reference footprint. They support standard 1000 mm wide baselines and robust rail mounting for typical control panels. Check the IS2 catalogue for recommended rail types, and verify clearance around the cabinet for service access and cable ingress during installation.
The ES1810BK complies with IP55 ingress protection, CE Declaration of Conformity, IEC 62208 and IEC 61439-1-2 standards for enclosure assemblies, and NEMA 1, 3R, 12 suitability. It is RoHS and REACH compliant, with WEEE considerations noted, and is categorized in ETIM as EC000261 for enclosure/cabinet (empty). These certifications support cross-border deployments and regulatory adherence.
Yes. The IP55 rating provides protection against dust and water jets, making it suitable for demanding factory floors and protected outdoor or semi-exposed areas. The orange-peel surface in RAL 7035 adds UV and weathering resilience, while the steel construction offers long-term durability in challenging environments.
Key references include a 1800 mm height and 1000 mm width with a 1000 mm depth as reference dimensions. The product net width is 1010 mm, net height 1911.5 mm, and net depth 1040 mm. Net weight is 118.120 kg, with a package gross weight of 125.660 kg, which informs handling equipment and transport planning.
Pre-assembled construction reduces commissioning time and field wiring errors, delivering faster project realization and lower labor costs. The durable RAL 7035 finish minimizes repainting, while IEC/CE compliance reduces risk of regulatory nonconformance. Together with RoHS/REACH, these features support a lower total cost of ownership and predictable maintenance cycles.
