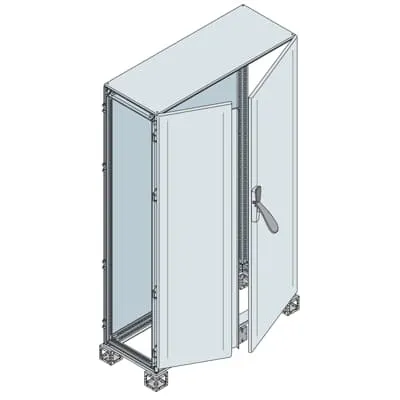

ABB ES1814BK Enclosure Cabinet - IP55
Part Number: ES1814BK
Quick Summary
ABB ES1814BK is an enclosure cabinet designed to protect electrical controls in demanding industrial environments. This pre-assembled cabinet simplifies panel builds by providing a ready-to-install housing with durable double doors and overlapping closure. Many projects suffer from delays caused by field-welded enclosures that fail to meet height, width, or IP requirements; this model addresses those challenges with a precise 1800 mm H x 1000 mm W x 400 mm D footprint. The unit carries IP55 protection and CE, RoHS, and REACH attestations, alongside IEC 62208 and IEC 61439-1-2 alignment, ensuring safe, compliant operation across regions. For engineers and procurement, the value lies in faster installation, predictable lead times, and reduced maintenance, supported by robust sheet-steel construction for automation cabinets.
Product Information
Extended Description
ES1814BK ABB: Cabinets with blind overlapping closure 1800x1000x400mm (HxWxD)
Configuration Type
2. Cabinet with double door and overlapping closure
Enclosure Type
Pre assembled - cabinet with double blind door and overlapping closure
Mounting Type
Pre assembled
Product Type
5B5B10B140
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1010 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1040 mm
Product Net Weight
105.5340 kg
Reference Depth/Length
400 mm
Reference Height
1800 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
112.270 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature is a double-door cabinet with overlapping closure. Business impact is reinforced security, improved cable management, and easier access for maintenance, enabling faster turnarounds on control-panel projects. Application: control panels in manufacturing lines where space and access constraints demand a compact, accessible enclosure. Feature follows with pre-assembled mounting and installation readiness, reducing site assembly time and on-site engineering costs; application spans automation cabinets in process and discrete manufacturing. Feature includes durable sheet steel material with orange peel surface finishing in RAL 7035, delivering corrosion resistance and a professional aesthetic; business impact is longer service life and reduced repaint cycles, particularly in dusty or industrial environments; application includes factory floors, switchgear housings, and PLC racks. Feature covers standard compliance: IP55 protection and conformity to IEC 62208 and IEC 61439-1-2, reducing risk of non-compliance audits and service interruptions; application includes cross-border projects requiring recognized standards. Feature also highlights RoHS and REACH information and ETIM classification to simplify procurement data, supporting faster sourcing and accurate cataloging; business impact includes streamlined purchasing and consistent data across ERP systems, with deployment across global facilities.
Get a Quick Quote for a ABB ES1814BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1814BK?
Enquire Now
FAQs
The ES1814BK ships pre-assembled with a double-door, overlapping closure, designed for quick mounting. It uses sheet steel with an orange-peel finish (RAL 7035) and IP55 protection, compatible with standard mounting patterns. Reference dimensions (1800 x 1000 x 400 mm) and weight (105.5 kg) inform lifting, anchoring, and space planning, while the included manual 1STM604121R0006 guides wiring and door setup to minimize field adjustments.
Yes. It delivers IP55 protection per IEC 60529, and is aligned with IEC 62208 and IEC 61439-1-2 for enclosure performance. It also carries CE declarations, RoHS/REACH information, and references ETIM classification EC000261, ensuring compatibility with global procurement and regulatory expectations for electrical enclosures in manufacturing sites.
Absolutely. The cabinet’s orange-peel, RAL 7035 finish and robust sheet steel construction withstand dust, moisture, and impact typical of factory floors. The IP55 rating provides ingress protection for most dusty or splash-prone areas, while the double-door design improves access and maintenance efficiency for control panels and automation cabinets.
The product includes a Declaration of Conformity (CE) and RoHS/REACH declarations with record dates. It is listed under ETIM 8/9 as EC000261 and conforms to IEC 62208, IEC 61439-1-2, and applicable NEMA classifications, supporting compliance across European and North American projects and simplifying regulatory filings.
Investing in the ES1814BK reduces field alterations and maintenance frequency due to its rigid IP55 protection and durable metal construction. The pre-assembled design shortens installation lead times, lowers on-site labor costs, and delivers long-term reliability for automation cabinets, leading to faster project completion and improved uptime across production lines.
