ABB ES1814K Cabinet - IP55 Enclosure with Double Door
Part Number: ES1814K
Quick Summary
ABB ES1814K Cabinet is a rugged control enclosure for industrial automation applications. It addresses common pain points like lengthy on-site assembly, misalignment of doors, and inadequate IP protection in harsh environments. The unit is CE declared with IP55 protection and compliant with IEC 62208 and IEC 61439-1/2, ensuring safe, compliant operation across European and North American panels. Pre-assembled and ready for mounting, it reduces install time and field wiring errors, while standardized dimensions support modular planning and spare parts consistency. For procurement and maintenance teams, the steel enclosure with orange peel finish (RAL 7035) delivers durable service life, RoHS/REACH compliance, and predictable total cost of ownership through longer cabinet life and fewer field updates.
Product Information
Extended Description

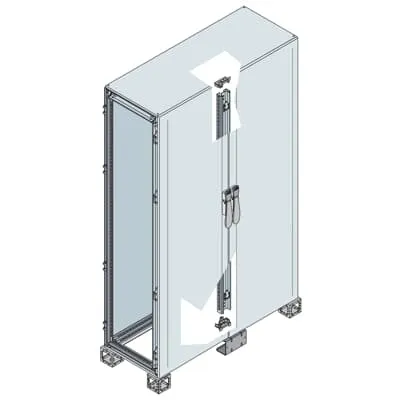

ES1814K ABB: Cabinet with double blind door 1800x1000x400mm (HxWxD)
Configuration Type
3. Cabinet with double door and intermediate upright
Enclosure Type
Pre assembled - cabinet with double blind door and intermediate upright
Mounting Type
Pre assembled
Product Type
5B5B10B130
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1010 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1040 mm
Product Net Weight
105.5340 kg
Reference Depth/Length
400 mm
Reference Height
1800 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
112.270 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature IP55 enclosure protection → Business Impact Delivers reliable dust and water ingress protection in harsh environments, reducing downtime and maintenance costs → Application Ideal for factory floors, process automation, and outdoor installations where enclosure integrity is critical. Feature Pre-assembled double-door cabinet with intermediate upright → Business Impact Speeds up installation and reduces field wiring errors, shortening project schedules and labor costs → Application Useful for quick panel upgrades and modular deployments in new plant builds. Feature Durable sheet steel with orange peel RAL 7035 finish → Business Impact Provides long-lasting corrosion resistance and easy color coding for safety compliance → Application Suited for high-traffic industrial plants where visibility and durability matter. Feature Compliance with IEC 62208, IEC 61439-1/2, RoHS/REACH, and CE declaration → Business Impact Ensures regulatory alignment and simplifies cross-border deployments, lowering risk and rework → Application Global panel builders and OEMs seeking consistent standards. Feature Double-door access and reference dimensions aligned to common mounting layouts → Business Impact Improves serviceability and component layout planning, reducing redesigns during integration → Application Control cabinets and switchgear assemblies in confined spaces. Feature Documentation and engineering support through IS2 Enclosures Technical Catalogue 2024 and installation manuals → Business Impact Provides ready-to-use references and faster project onboarding, reducing procurement lead times → Application Systems integrators and maintenance teams planning replacement or retrofits.
Get a Quick Quote for a ABB ES1814K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1814K?
Enquire Now
FAQs
The ES1814K is a pre-assembled cabinet with a double-door configuration and an intermediate upright, designed to fit common 1000 mm width and 1800 mm height panel architectures. It supports standard sheet-steel interiors and mounting rails, enabling straightforward wiring, component mounting, and service access. When planning installations, consider the internal clearance, door swing, and cable entry points to ensure trouble-free integration with existing equipment and gap-free alignment with nearby cabinets.
This enclosure provides IP55 protection (dust and water ingress resistance) per IEC 60529, and is designed to comply with IEC 62208 and IEC 61439-1/2 for low-voltage switchgear and controlgear assemblies. It carries CE conformity with RoHS/REACH declarations and is compatible with ETIM classifications. These certifications support safe operation, regulatory compliance, and reliable performance across global installations.
The ES1814K is ideal for factory automation, process control, and electrical panel builds in manufacturing, processing plants, and packaging lines. Its IP55 rating protects sensitive electronics in dusty or damp environments, while the robust steel construction supports long life in demanding conditions. It is well-suited for OEM projects requiring pre-assembled, standards-compliant enclosures with quick installation timelines.
The cabinet includes a CE Declaration of Conformity, RoHS information with a RoHS date of 20250108, and a REACH declaration indicating compliance with chemical restrictions. It is categorized under WEEE as not in scope and conforms to environmental and safety standards such as IEC 62208 and IEC 61439-1/2, making it suitable for global deployments while simplifying regulatory paperwork.
Pre-assembled construction reduces installation time and field labor costs, while durable sheet-steel construction and a high-protection rating extend cabinet life and minimize maintenance cycles. The availability of official datasheets (IS2 Enclosures Catalogue 2024) and installation manuals accelerates project planning, enabling faster time-to-operational status and a lower total cost of ownership over the cabinet’s service life.
