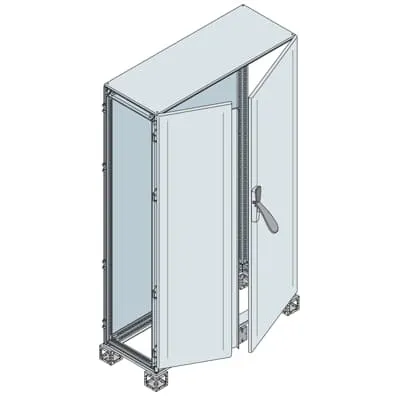

ABB ES1815BK Cabinet - IP55 Enclosure, 1800×1000×500 (IP55)
Part Number: ES1815BK
Quick Summary
ABB ES1815BK is a rugged cabinet solution for control and automation in demanding industrial environments. It addresses frequent pains around limited accessibility, dust ingress, and time-consuming on-site assembly. This model carries CE conformity with a Declaration of Conformity, an IP55 enclosure rating, and compliance with IEC 62208 and IEC 61439-1-2, along with ETIM EC000261 and eClass classifications. With a pre-assembled, double-door cabinet and overlapping closure finished in orange peel RAL 7035, it supports reliable operation while simplifying procurement and installation. Designed to integrate with standard control panels and IS2 enclosure references, it helps maintain uptime and reduce total cost of ownership for OEMs and maintenance teams.
Product Information
Extended Description
ES1815BK ABB: Cabinets with blind overlapping closure 1800x1000x500mm (HxWxD)
Configuration Type
2. Cabinet with double door and overlapping closure
Enclosure Type
Pre assembled - cabinet with double blind door and overlapping closure
Mounting Type
Pre assembled
Product Type
5B5B10B140
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1010 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1040 mm
Product Net Weight
107.8650 kg
Reference Depth/Length
500 mm
Reference Height
1800 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
114.750 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Pre-assembled cabinet with double-door and overlapping closure. Business Impact: Accelerates installation, improves seal integrity, and reduces field wiring time. Application: Control panels and automation cabinets on production lines. Feature: IP55 protection rating. Business Impact: Shields sensitive equipment from dust ingress and water exposure, lowering maintenance downtime. Application: Factory floors and semi-enclosed spaces where washdowns or humidity occur. Feature: Material and surface finish. Business Impact: Sheet steel construction with orange-peel finish (RAL 7035) delivers durable protection and easy cleaning, extending service life. Application: Harsh industrial environments requiring robust aesthetics and corrosion resistance. Feature: Generous internal footprint with 1800 mm height and 1000 mm width. Business Impact: Ample space for motor drives, controllers, and wiring, reducing custom fabrication. Application: Electrical distribution and control cabinet installations in automation systems. Feature: Double-door configuration. Business Impact: Enhanced accessibility for wiring, inspection, and maintenance, improving workflow efficiency. Application: Hot-swappable module layouts and frequent access points in process control. Feature: Compliance and data-ready labeling (RoHS, REACH, ETIM, eClass). Business Impact: Regulatory alignment minimizes procurement risk and speeds supplier onboarding. Application: Projects requiring traceable material compliance and standardized data for ERP systems.
Get a Quick Quote for a ABB ES1815BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1815BK?
Enquire Now
FAQs
ABB ES1815BK is a pre-assembled cabinet with mounting type already configured for quick installation. Its dimensions are 1800 mm high, 1000 mm wide, and 500 mm deep, with a net weight around 107.865 kg. Plan for standard electrical room clearance and ensure compatible mounting rails and panel layouts for a smooth fit.
Key specs include a sheet steel construction with orange-peel surface finishing in RAL 7035, double-door configuration with overlapping closure, and IP55 protection. It is designed as a pre-assembled enclosure suitable for control panels and automation equipment in industrial environments.
Yes. It carries a Declaration of Conformity CE and related RoHS information with a 20250108 RoHS date, along with a REACH declaration indicating no substances above 0.1 mass percentage. It also notes WEEE considerations and ETIM/eClass classifications for standardized data.
A typical use case is housing electrical control and automation equipment in factory or process environments. The double-door, overlapping closure design provides easy access for maintenance, while the IP55 rating protects against dust and splash, supporting reliable operation in demanding settings.
The enclosure includes installation documentation references such as 1STM604121R0006 and the IS2 Enclosures Technical Catalogue 2024. It also aligns with ETIM EC000261 classifications and the CE Declaration of Conformity for streamlined procurement and maintenance.
