ABB ES1816BK Cabinet - IP55 Enclosure, IEC 62208
Part Number: ES1816BK
Quick Summary
ABB ES1816BK cabinet enclosure delivers a rugged, pre-assembled housing for electrical control and automation systems in manufacturing and process environments. This enclosure is designed to streamline installation, reducing on-site labor and risk while ensuring reliable panel protection. It carries CE marking with RoHS and REACH declarations and meets IEC 62208 and IEC 61439-1-2 standards for safe, compliant operation. The IP55 rating and the durable orange-peel finish in RAL 7035 provide robust protection in dusty or damp factory environments. By delivering a standardized, ready-to-install cabinet, it enables faster project timelines and scalable growth for integrators, OEMs, and end users alike, with 1000 mm width and 1800 mm height for flexible layouts.
Product Information
Extended Description

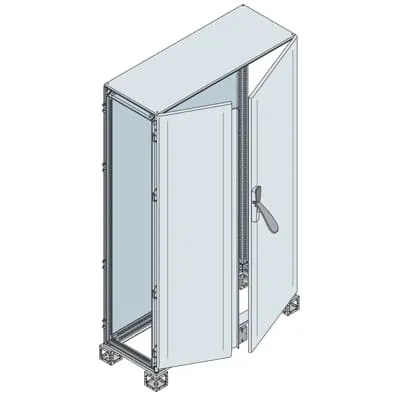

ES1816BK ABB: Cabinets with blind overlapping closure 1800x1000x600mm (HxWxD)
Configuration Type
2. Cabinet with double door and overlapping closure
Enclosure Type
Pre assembled - cabinet with double blind door and overlapping closure
Mounting Type
Pre assembled
Product Type
5B5B10B140
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1010 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1040 mm
Product Net Weight
108.2880 kg
Reference Depth/Length
600 mm
Reference Height
1800 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
115.200 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature → Business Impact → Application: Pre-assembled, double-door enclosure with overlapping closure speeds up installation and reduces field labor risk, enabling quicker panel commissioning and lower total project cost for mid to large control cabinets. This design supports safer access and simplified maintenance in automated lines where uptime matters. Application: machine control rooms and process automation panels that require fast deployment and dependable sealing. Feature → Business Impact → Application: IP55 protection guards against dust ingress and water jets, minimizing unplanned downtime in semi-dusty or damp environments. This translates to higher equipment reliability and extended service life in harsh manufacturing settings. Application: indoor and semi-exposed installations where environmental protection is critical. Feature → Business Impact → Application: Sheet steel construction with RAL 7035 orange-peel finish delivers durable corrosion resistance and easy visibility in busy plants, reducing repainting and maintenance costs. Application: general purpose industrial enclosures for control and automation gear. Feature → Business Impact → Application: Generous footprint of 1800 x 1000 x 600 mm and a flexible mounting approach support standard interior layouts and easy integration with off-the-shelf components. Application: OEM and system integrator projects seeking scalable enclosure platforms. Feature → Business Impact → Application: Comprehensive compliance data including CE, RoHS, REACH, ETIM, and eClass classifications reduces procurement risk and accelerates approval cycles. Application: regulated industries and multi-supplier supply chains where traceability matters. Feature → Business Impact → Application: Pre-assembled mounting and documented installation references streamline on-site setup, shortening time-to-operational status and improving first-pass wiring accuracy. Application: panel builders needing reliable, repeatable installation across multiple line setups.
Get a Quick Quote for a ABB ES1816BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1816BK?
Enquire Now
FAQs
The ES1816BK is a pre-assembled enclosure with mounting provisions designed for 1800 mm H x 1000 mm W x 600 mm D external footprint. It supports standard panel components and aligns with ETIM EC000261 classifications, making it compatible with common 19'' racks and modular control equipment while minimizing on-site assembly time.
Key specs include IP55 protection per IEC 60529, sheet steel construction, and an orange-peel surface finished in RAL 7035. The door type is double with overlapping closure, and the cabinet is pre-assembled for quick installation. Net weight is approximately 108.29 kg with a 600 mm reference depth.
IP55 protection supports indoor use and semi-exposed environments with adequate protection from dust and water jets. While suitable for many factory floors and semi-outdoor spaces, consider additional outdoor-rated enclosures or protective enclosures for direct weather exposure.
The ES1816BK carries CE Declaration of Conformity and RoHS/REACH declarations. It aligns with IEC 62208 and IEC 61439-1-2, supports NEMA 1, 3R, and 12 configurations, and is classified under ETIM 8/9 EC000261 with eClass 27180101 for unified e-commerce criteria.
Pre-assembled construction reduces commissioning time and field labor, lowering installation risk. Durable sheet steel and long-lasting finish cut maintenance needs, while CE/RoHS/REACH compliance minimizes regulatory hurdles, contributing to a favorable total cost of ownership over the cabinet’s lifecycle.
