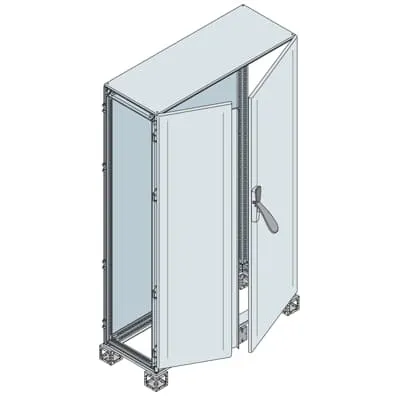

ABB ES1824BK Cabinet - IP55 Enclosure with CE/RoHS
Part Number: ES1824BK
Quick Summary
ABB ES1824BK Cabinet is a pre-assembled control enclosure designed for scalable automation projects in manufacturing environments. It reduces installation delays by delivering a factory-assembled, double-door cabinet with overlapping closure for a secure, fast field rollout. The unit provides IP55 protection and complies with IEC 62208 and IEC 61439-1-2, along with CE, RoHS, and REACH declarations for regulated industrial settings. Built from sheet steel with a durable orange peel RAL 7035 finish, it offers reliable protection, predictable lead times, and a lower total cost of ownership for control cabinets.
Product Information
Extended Description
ES1824BK ABB: Cabinets with blind overlapping closure 1800x1200x400mm (HxWxD)
Configuration Type
2. Cabinet with double door and overlapping closure
Enclosure Type
Pre assembled - cabinet with double blind door and overlapping closure
Mounting Type
Pre assembled
Product Type
5B5B10B140
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1210 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1240 mm
Product Net Weight
122.820 kg
Reference Depth/Length
400 mm
Reference Height
1800 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
130.660 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Pre assembled cabinet with double door and overlapping closure → Business Impact: Reduces field assembly time and misalignment, improving installation efficiency and safety → Application: Industrial control panels in manufacturing environments where quick deployment matters. Feature: IP55 protection in a robust sheet steel enclosure → Business Impact: Ensures reliable dust and water protection, lowering maintenance incidents and downtime → Application: Harsh factory floors and outdoor or semi-indoor installations. Feature: Orange Peel surface in RAL 7035 → Business Impact: Visually inspect for cleanliness and wear while providing corrosion resistance, extending cabinet life → Application: Electrical housings in busy production lines. Feature: EN/ETIM and regulatory compliance (IEC 62208, IEC 61439-1-2, CE, RoHS, REACH) → Business Impact: Reduces risk of non-compliance penalties and streamlines procurement → Application: Regulated industries requiring traceable standards. Feature: Double blind door with overlap closure → Business Impact: Improves sealing integrity and security, while simplifying maintenance access → Application: Control cabinet installations with frequent wiring and assembly. Feature: Dimensions and weight (1800 mm H x 1200 mm W x 400 mm D; ~122.820 kg) → Business Impact: Fits standard rack layouts and supports on-site handling with informed install planning → Application: Centralized control rooms and equipment housings requiring predictable footprint. Feature: RoHS and REACH declarations with C of Conformity access → Business Impact: Ensures regulatory compliance and supply chain assurance, reducing project risk → Application: European and global automation projects demanding compliance.
Get a Quick Quote for a ABB ES1824BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1824BK?
Enquire Now
FAQs
The ES1824BK is a pre-assembled cabinet with a double door and overlapping closure, designed to minimize on-site assembly. When installing, verify mounting against standard footprints, prepare the 1800x1200x400 mm cavity, and ensure IP55 protection is maintained by sealing joints properly. Use the included installation manual 1STM604121R0006 for step-by-step guidance and reference IS2 Enclosures Technical Catalogue 2024 for best practices.
Key specs include IP55 protection per IEC 60529, dimensions of 1800 mm (H) x 1200 mm (W) x 400 mm (D), and a net weight around 122.820 kg. The cabinet uses sheet steel construction with an orange peel finish in RAL 7035 and features double doors with overlapping closure, making it suitable for durable, weather-protected electrical enclosures in industrial settings.
Yes. The enclosure aligns with IEC 62208 and IEC 61439-1-2 requirements and is compatible with NEMA standards 1, 3R, and 12. It has ETIM classifications EC000261 for enclosure/cabinet (empty) and conforms to broader regulatory expectations, supported by its CE Declaration and RoHS/REACH information for compliant deployments.
Absolutely. The cabinet carries RoHS information with RoHS and REACH declarations. REACH information states no substances exceeding 0.1 mass percentage, and the REACH date is 20250108. This reduces regulatory risk for European and global projects and supports smoother procurement and installation in regulated environments.
Maintenance considerations include leveraging the CE Declaration and the IS2 Enclosures Technical Catalogue for service intervals, compatible installation manuals, and spare part availability. The robust sheet-steel construction and IP55 rating contribute to lower maintenance needs, while the pre-assembled design simplifies future upgrades and reduces downtime during panel expansions.
