ABB ES1824FV4K Control Cabinet - IP55 IEC 62208
Part Number: ES1824FV4K
Quick Summary
ABB ES1824FV4K control cabinet protects automation components and wiring within a rugged IP55-rated enclosure designed for demanding manufacturing and process environments. Engineers often face retrofit challenges and costly downtime; this pre-assembled cabinet with a cable container streamlines installation and simplifies cable management. With IEC 62208 and IEC 61439-1-2 compliance, and compatibility with NEMA 1, 3R, and 12 configurations, the solution supports global projects while RoHS and REACH declarations reduce regulatory risk. The orange peel surface finish in RAL 7035 provides durable protection and high visibility, while a double blind door design offers convenient access for maintenance. For procurement teams, clear documentation, ETIM classification, and ready-to-install manuals help ensure predictable lead times and supply chain reliability.
Product Information
Extended Description

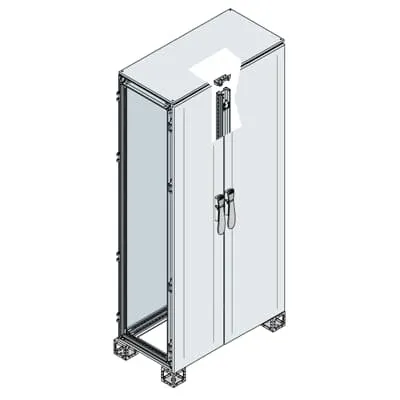

ES1824FV4K ABB: Cabinet with blind door 1800x1200x400mm (HxWxD) W=400mm
Configuration Type
5. Cabinet with cable container
Enclosure Type
Pre assembled - blind door cabinet with cable container
Mounting Type
Pre assembled
Product Type
5B5B10B150
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1210 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1240 mm
Product Net Weight
120.5830 kg
Reference Depth/Length
400 mm
Reference Height
1800 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
128.280 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Pre-assembled cabinet with cable container → Benefit: Reduces field labor and installation time, minimizes wiring errors, and lowers commissioning risk → Application: Factory automation panels and control rooms where quick deployment is critical. Feature: IP55-rated protection with sheet steel construction → Benefit: Enhanced dust and splash resistance, longer service life in harsh environments → Application: Manufacturing floors, outdoor plants, and logistics hubs requiring robust protection. Feature: Generous dimensions and mounting options (1800 mm x 1200 mm footprint with 400 mm depth) → Benefit: Flexible interior layout and straightforward integration with existing hardware → Application: Power distribution and control systems for large machines or lines. Feature: Orange Peel finish in RAL 7035 and double blind doors → Benefit: Improved corrosion resistance, easier maintenance, and secure cable access → Application: Enclosures exposed to weather, humidity, or frequent access. Feature: Compliance and documentation package (IEC standards, RoHS/REACH, ETIM) → Benefit: Regulatory confidence, simplified sourcing, and streamlined procurement → Application: Global rollouts and compliance-driven projects in regulated industries. Feature: Pre-assembled with manual and installation documentation → Benefit: Faster installation, predictable lead times, and reduced on-site risk → Application: Panel builders and integrators needing reliable, ready-to-install cabinets.
Get a Quick Quote for a ABB ES1824FV4K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1824FV4K?
Enquire Now
FAQs
The cabinet is pre-assembled with a cable container, designed for quick on-site installation. Ensure proper mounting on a level, accessible base, connect earth and main power per the included manual, and maintain insulation and ventilation clearances. IP55 protection requires protection from direct water jets; follow the IS2 Enclosures Catalogue guidelines for installation in harsh environments.
This cabinet complies with IEC 62208 and IEC 61439-1-2, and aligns with NEMA 1, 3R, and 12 configurations. Declaration of Conformity - CE is provided, and RoHS/REACH declarations are included with 20250108 dates. ETIM classifies it as EC000261 for enclosure/cabinet, empty, aiding standardized procurement and data exchange.
Yes, the IP55 rating provides protection against dust ingress sufficient for many indoor industrial settings and light water exposure. For harsher washdown or outdoor exposure, evaluate additional protection or enclosures with higher IP ratings. The orange peel finish also enhances durability and visibility in cluttered environments.
The reference width is 1200 mm with a reference height of 1800 mm and depth of 400 mm, while the product net dimensions are 1210 mm wide, 1911.5 mm tall, and 1240 mm deep. It uses a pre-assembled mounting approach with a double-door blind configuration, simplifying panel integration and cable routing.
Product net weight is approximately 120.6 kg, with a package level 1 gross weight around 128.3 kg. Consider handling equipment for transport and installation, and plan for safe lifting according to site procedures. The robust construction supports durability during long service life.
