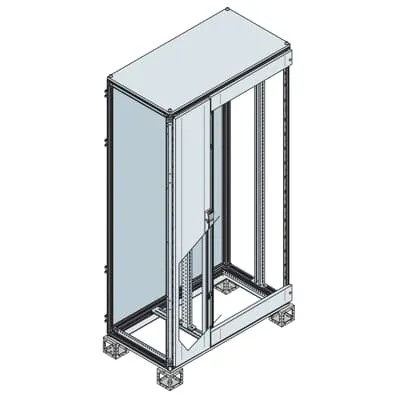

ABB ES1824MF4K Cabinet for Compartments - IP55
Part Number: ES1824MF4K
Quick Summary
ABB ES1824MF4K is a cabinet for compartments used in industrial control panels. Designed to simplify implementations, it reduces field labor by delivering pre-assembled partitions and a ready-to-mount enclosure. It addresses pain points such as crowded installs, cable misrouting, and extended commissioning times. This enclosure features IP55 protection, CE conformity, and IEC 62208/61439-1-2 compliance, with RoHS and REACH declarations. Built from sheet steel with an orange-peel finish (RAL 7035), it delivers durable protection and a professional finish for scalable automation projects. With its pre-assembled configuration and double doors, it speeds up install times and reduces total cost of ownership.
Product Information
Extended Description
ES1824MF4K ABB: Cabinets for compartments 1800x400x1200mm (HxDxW) with Cable container W=400mm
Configuration Type
6. Cabinet for configuration with compartments
Enclosure Type
Pre assembled - cabinet for configuration with comprtments
Mounting Type
Pre assembled
Product Type
5B5B10B180
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1210 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1240 mm
Product Net Weight
103.9550 kg
Reference Depth/Length
400 mm
Reference Height
1800 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
110.590 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature → Business Impact → Application: The cabinet’s IP55-rated enclosure delivers reliable dust and moisture protection, reducing field service calls and downtime in harsh factory environments, enabling uninterrupted machine operation. Application: Electrical control panels in production lines benefit from a robust, weather-resistant housing that minimizes risk of ingress and performance degradation. Feature → Business Impact → Application: Pre-assembled compartments shorten installation times and simplify configuration, lowering labor costs and accelerating time-to-value for automation projects. Application: Modular machine enclosures and distribution cabinets gain from faster commissioning and easier maintenance access. Feature → Business Impact → Application: Double-door access and orange-peel surface in RAL 7035 improve visual inspection, cleaning, and part replacement, supporting regulatory hygiene requirements and long-term reliability. Application: Enclosures deployed in IS2 and ETIM-compliant environments improve procurement consistency and lifecycle planning. Feature → Business Impact → Application: RoHS and REACH declarations reduce regulatory risk and simplify supplier audits, enabling compliant rollout across multiple sites. Application: Global or multi-site deployments with standardized enclosures.
Get a Quick Quote for a ABB ES1824MF4K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1824MF4K?
Enquire Now
FAQs
This cabinet ships pre-assembled for configuration with compartments, minimizing field labor. It features a double-door enclosure, IP55 protection, and a 1800x1200x400 mm reference size (1210x1911.5x1240 mm net). It aligns with ETIM EC000261–Enclosure/cabinet, IEC 62208/61439-1-2, and CE declarations, enabling straightforward integration with existing panels.
The enclosure provides IP55 protection per IEC 60529 and is constructed from sheet steel with an orange-peel finish in RAL 7035. It weighs around 103.96 kg, uses a double-door design, and supports RoHS information with REACH declarations. Certification includes CE conformity and ETIM/NEMA classifications, ensuring reliable performance in industrial settings.
It carries CE Declaration of Conformity IS2, and conforms to IEC 62208, IEC 61439-1-2, and NEMA 1, 3R, 12. The enclosure is classified under ETIM 8/9 EC000261 and is listed in eClass V11.1 27180101. RoHS and REACH declarations are provided, with a REACH date of 20250108 and WEEE status indicating not in scope.
Ideal for control and automation cabinets in machines and process lines, electrical panels in manufacturing, and distribution cabinets. The 1800x1200x400 mm reference size supports compartmentalization and cable management, while the pre-assembled configuration speeds deployment and ensures consistent partitioning, improving maintenance access and system reliability in demanding industrial environments.
Pre-assembled, ready-to-install design reduces on-site labor and downtime, while the durable sheet steel construction and IP55 rating minimize ingress and corrosion risks. RoHS/REACH compliance reduces regulatory overhead, and the weight of 103.96 kg provides rugged protection. These factors contribute to lower lifecycle costs and more predictable maintenance planning.
