ABB ES1824VK Enclosure - IP55, CE, RoHS certified
Part Number: ES1824VK
Quick Summary
ABB ES1824VK enclosure is a pre-assembled control cabinet for automation boards in industrial facilities. This ready-to-install housing helps engineers avoid costly on-site fabrication and alignment challenges while meeting tight project timelines. The enclosure carries IP55 protection, CE marking for European compliance, and RoHS and REACH declarations to address material restrictions. With a sheet steel body finished in orange peel, RAL 7035, and a transparent double-glazed door, it combines durability with clear visibility of internal components. For system integrators, the combination of pre-assembled mounting, a robust structural frame, and ETIM EC000261 classification translates into faster deployment, easier maintenance, and predictable performance across factory floors.
Product Information
Extended Description

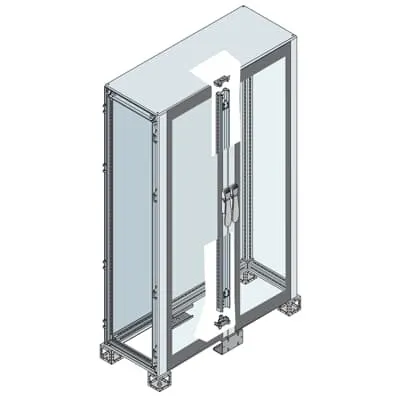

ES1824VK ABB: Cabinet with glazed door 1800x1200x400mm (HxWxD)
Configuration Type
3. Cabinet with double door and intermediate upright
Enclosure Type
Pre assembled - cabinet with double glazed door and intermediate upright
Mounting Type
Pre assembled
Product Type
5B5B10B120
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1210 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1240 mm
Product Net Weight
117.3970 kg
Reference Depth/Length
400 mm
Reference Height
1800 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
124.890 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Pre-assembled cabinet with double glazed door and intermediate upright. Business Impact: Reduces on-site assembly, ensures accurate mounting, and lowers labor costs. Application: automation cabinets and panel builds on production lines. Feature: IP55 rated enclosure with sheet steel construction and orange peel finish in RAL 7035. Business Impact: Provides reliable dust and water protection, extending service life and reducing maintenance downtime. Application: manufacturing floors, damp environments, and risk-prone installations. Feature: Transparent door surface and glazed door design. Business Impact: Facilitates quick visual inspection of mounted components, speeding diagnostics and reducing uptime risk. Application: control panels requiring frequent status checks. Feature: RoHS and REACH compliance with ETIM EC000261 classification. Business Impact: Ensures regulatory compliance and smoother procurement through standardised data; reduces risk of material-related delays. Application: EU supply chains and cross-border projects. Feature: Large internal footprint (1800x1200x400 mm) with pre-assembled mounting. Business Impact: Maximizes usable space for controllers and modules while simplifying installation; lowers customization costs. Application: complex automation layouts and machine safety cabinets.
Get a Quick Quote for a ABB ES1824VK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1824VK?
Enquire Now
FAQs
The ES1824VK is a pre-assembled cabinet with a double glazed door and intermediate upright, designed for rapid integration into panel builds. Its IP55 rating supports use on standard factory floors, while the sheet steel body and RAL 7035 finish resist daily wear. Plan for mounting within the 1800x1200x400 mm envelope and verify compatibility with your equipment rails and door clearance to ensure straightforward wiring and maintenance access.
Key specs include a 1800 mm reference height, 1200 mm reference width, and 400 mm reference depth, with a product net footprint around 1210x1911.5x1240 mm. The enclosure uses sheet steel with an orange peel finish, features a double glazed door, and offers IP55 protection. It also carries RoHS and REACH declarations and aligns with ETIM EC000261 for standardized data in procurement systems.
The enclosure is rated IP55, which provides dust and splash protection suitable for indoors or sheltered outdoor locations. For exposed outdoor use, additional protective measures such as sheltering and climate control should be considered. The robust sheet steel construction and durable finish help withstand typical factory conditions, while the double glazed door allows clear visibility of internal components without opening the cabinet.
The ES1824VK carries CE marking for European compliance, RoHS and REACH declarations for material restrictions, ETIM EC000261 classification, and is listed against IEC 62208 and IEC 61439-1-2 standards (with NEMA equivalents 1, 3R, 12). WEEE categorization indicates disposal considerations. These certifications help ensure regulatory compliance and smoother procurement and integration workflows.
Pre-assembled mounting, double glazed door, and a defined internal footprint streamline installation, reducing on-site labor and commissioning time. The IP55 protection minimizes unexpected ingress-related downtime, while RoHS/REACH and ETIM data simplify parts sourcing and compliance reporting. The result is lower total cost of ownership and more predictable maintenance schedules for automation cabinets.
