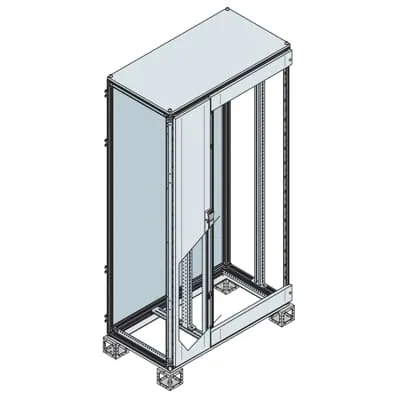

ABB ES1825MF4K Control Cabinet - IP55 CE Compliant
Part Number: ES1825MF4K
Quick Summary
ABB ES1825MF4K Control Cabinet is a pre-assembled enclosure for configuring industrial control panels. Engineers often struggle with time-consuming assembly, inconsistent fits, and compliance gaps that delay commissioning. This cabinet meets CE conformity and IP55 protection while aligning with IEC 62208 and IEC 61439-1/2, plus RoHS and REACH declarations. With a durable sheet-steel body, orange-peel finish in RAL 7035, and a double-door design, it supports scalable automation while simplifying installation and maintenance. The 1200 mm reference width, 1800 mm reference height, and 500 mm reference depth fit common control-room layouts, and the unit ships with a 400 mm cable container option. In practice, this solution delivers predictable performance, long service life, and cost-effective compliance across mixed-asset plants.
Product Information
Extended Description
ES1825MF4K ABB: Cabinets for compartments 1800x500x1200mm (HxDxW) with Cable container W=400mm
Configuration Type
6. Cabinet for configuration with compartments
Enclosure Type
Pre assembled - cabinet for configuration with comprtments
Mounting Type
Pre assembled
Product Type
5B5B10B180
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1210 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1240 mm
Product Net Weight
107.8740 kg
Reference Depth/Length
500 mm
Reference Height
1800 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
114.760 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature → Business Impact → Application: Pre-assembled cabinet for configuration with compartments reduces field assembly time and minimizes on-site errors, enabling rapid deployment of control panels and automation racks across multiple lines. This translates to faster project turnover and lower labor costs for system integrators. Feature → Business Impact → Application: Durable sheet steel body with orange-peel finish in RAL 7035 provides resisting corrosion while presenting a professional, standardized appearance in harsh manufacturing environments. Application: suitable for factory floors, process stations, and automation closets requiring long-term protection. Feature → Business Impact → Application: IP55 protection guards against dust and water ingress, reducing downtime and warranty claims in dust-prone or wash-down areas. Application: reliable operation in food & beverage, pharmaceutical, and general industrial settings. Feature → Business Impact → Application: 1200x1800x500 mm footprint with a 400 mm cable container supports organized cabling and scalable configuration. Application: simplifies wiring, future expansion, and service access. Feature → Business Impact → Application: CE, RoHS, REACH compliance with IEC 62208/61439-1/2 compatibility ensures regulatory readiness and supplier interoperability. Application: streamlines procurement, reduces risk, and accelerates plant upgrades. Feature → Business Impact → Application: Double-door access and modular mounting facilitate fast maintenance, component replacement, and routine inspections. Application: minimizes downtime during scheduled maintenance and upgrades.
Get a Quick Quote for a ABB ES1825MF4K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1825MF4K?
Enquire Now
FAQs
The ES1825MF4K comes as a pre-assembled cabinet designed for straightforward integration with standard mounting patterns common in ABB and third-party frames. Its configuration-with-compartments approach simplifies rack alignment, cable routing, and door access. For retrofit projects, verify mounting hole spacing and panel depth to ensure a seamless fit with existing enclosure footprints and internal accessory rails.
Key dimensions reference 1200 mm width, 1800 mm height, and 500 mm depth, with a 400 mm cable container option. The cabinet uses sheet steel with orange-peel finish in RAL 7035 and double doors for easy access. These specs support standard control-panel layouts, allow adequate space for cable containment, and enable predictable airflow and serviceability in typical automation environments.
The enclosure carries CE conformity with RoHS and REACH declarations. It is rated IP55 for dust and water protection and aligns with IEC 62208 and IEC 61439-1/2 standards, plus NEMA compatibility (1, 3R, 12). ETIM and eClass classifications (EC000261, V11.1 27180101) further support product interoperability in procurement catalogs.
Pre-assembled construction reduces on-site labor, accelerates commissioning, and minimizes retrofit risk. The cabinet’s module-friendly configuration and double-door access speed maintenance and inspections, lowering total cost of ownership and downtime. With CE/ROHS/REACH compliance and standard mounting patterns, you gain predictable lead times and easier supplier handoffs.
Documentation is available via the IS2 Enclosures Technical Catalogue 2024 and installation manuals. The product references include the 1STM604121R0006 installation guide and CE Declaration of Conformity. For ongoing support, consult the ABB data sheet and the RoHS/REACH declarations to verify material compliance and lifecycle considerations.
