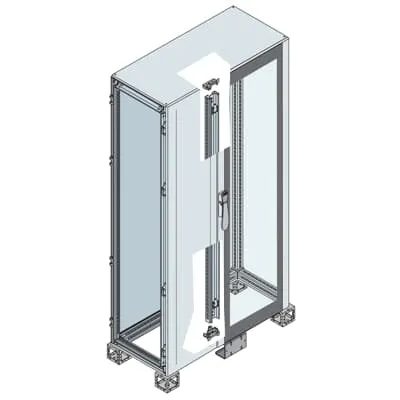

ABB ES1825VC4K Cabinet - IP55 Enclosure, Glass Door
Part Number: ES1825VC4K
Quick Summary
ABB ES1825VC4K is a rugged enclosure that houses control and automation boards for plant-floor applications. Engineers often struggle with cable management, integration in compact spaces, and regulatory documentation during panel builds. This IP55-rated, CE-compliant, RoHS-conforming cabinet features a glazed double door and pre-assembled construction to streamline installation. With a scalable footprint and clear catalog references, it delivers faster deployment and long-term cost savings for manufacturing, process, and packaging lines. Leveraging standard dimensions and robust materials, it supports quick upgrades and compliant scalability across facilities.
Product Information
Extended Description
ES1825VC4K ABB: Cabinet with glass door1800x1200x500mm (HxWxD) W=400mm
Configuration Type
5. Cabinet with cable container
Enclosure Type
Pre assembled - glazed door cabinet with cable container
Mounting Type
Pre assembled
Product Type
5B5B10B150
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1210 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1240 mm
Product Net Weight
120.9120 kg
Reference Depth/Length
500 mm
Reference Height
1800 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
128.630 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Cabinet with cable container enables organized internal wiring, reducing installation time by hours and lowering field wiring errors in panel builds. This translates to faster commissioning and easier maintenance in machine cells and packaging lines, where space is at a premium and cable routing is critical. Pre assembled glazed door cabinet with cable container speeds up field deployment, enhances visual inspection during startup, and minimizes on-site fabrication costs by delivering a ready-to-use enclosure. Material choice of sheet steel with orange peel finish (RAL 7035) provides long-term durability, corrosion resistance, and a professional appearance in harsh industrial environments. The double door design improves access for service and wiring, while the IP55 protection keeps dust and water out, supporting reliable operation in workshops and factories. At 1210 mm wide by 1911.5 mm tall, the cabinet balances ample internal space with practical transport and placement, and the included reference dimensions (1800x1200x500 mm) help engineers plan surrounding equipment. RoHS and REACH compliance, alongside ETIM and eClass classifications, reduce regulatory risk and simplify sourcing for global operations, with ISO-like documentation and standardization across facilities. This enclosure is designed for quick upgrades and scalable configurations, enabling plant-wide modernization without repeated cabinet changes.
Get a Quick Quote for a ABB ES1825VC4K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1825VC4K?
Enquire Now
FAQs
Yes. The ES1825VC4K is a pre-assembled cabinet with a cable container, designed to accommodate standard panel components and cable layouts. Its glazed double door provides easy visual inspection, while its 1800x1200x500 mm footprint aligns with common machine enclosures. This reduces on-site modifications and speeds up installation in manufacturing lines.
The enclosure delivers IP55 protection (dust and water ingress resistance) and is manufactured from sheet steel with an orange-peel finish in RAL 7035. The door surface is transparent, aiding inspection. It ships pre-assembled, ready for quick wiring and panel mounting, which minimizes commissioning time and risk of field wiring errors.
Yes, the ES1825VC4K is suitable for factory environments requiring robust protection and clear visibility of internal components. Its IP55 rating and CE/RoHS compliance support use in food processing and packaging lines, where hygiene and regulatory adherence are critical. The cabinet’s dimensions and cable container design simplify integration with conveyors and processing equipment.
The enclosure complies with CE and RoHS declarations, REACH compliance (with date 20250108), and is conformant to IEC 62208 and IEC 61439-1-2, as well as NEMA 1, 3R, and 12. ETIM and eClass classifications (EC000261, V11.1 27180101) support standard procurement and interoperability across global projects.
Pre-assembled construction reduces installation labor and field wiring errors, delivering faster time-to-operational status and lower upfront costs. Durable sheet steel with IP55 protection minimizes maintenance and replacement needs in harsh environments. RoHS/REACH compliance mitigates regulatory risk, while standardized dimensions facilitate future scalability and retrofit projects, improving total cost of ownership.
