ABB ES1825VK Enclosure Cabinet - IP55, IEC 62208
Part Number: ES1825VK
Quick Summary
ABB ES1825VK is a rugged enclosure cabinet designed to house control and automation boards for industrial automation environments. Operators often struggle with limited space, need clear glazing for monitoring, and robust protection in harsh production environments. This model meets CE declarations and IEC 62208/ IEC 61439-1-2 standards, delivers IP55 protection, and aligns with RoHS and REACH requirements. With pre-assembled construction and a durable orange peel finish (RAL 7035), it supports fast commissioning and reliable service for OEMs and end users, making it a practical choice for modern machine installations and control room ecosystems.
Product Information
Extended Description

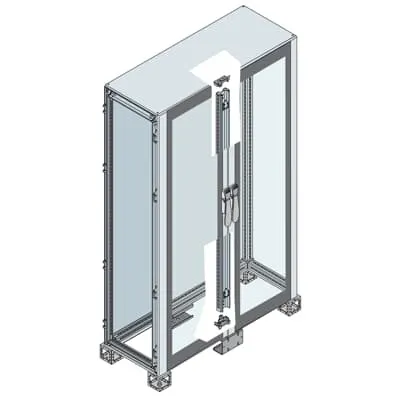

ES1825VK ABB: Cabinet with glazed door 1800x1200x500mm (HxWxD)
Configuration Type
3. Cabinet with double door and intermediate upright
Enclosure Type
Pre assembled - cabinet with double glazed door and intermediate upright
Mounting Type
Pre assembled
Product Type
5B5B10B120
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1210 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1240 mm
Product Net Weight
121.3160 kg
Reference Depth/Length
500 mm
Reference Height
1800 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
129.060 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature → Business Impact → Application: Pre-assembled cabinet with double glazed door and intermediate upright reduces on-site labor, accelerates commissioning, and ensures consistent build quality across installations, ideal for machine builders and panel shops. Feature → Business Impact → Application: Large outer dimensions (1800x1200x500 mm) and substantial internal space enable easier layout of PLCs, drives, and terminal blocks, enhancing scalability for evolving control architectures in production lines. Feature → Business Impact → Application: Sheet steel construction with Orange Peel finish in RAL 7035 provides durable corrosion resistance and a clean, professional appearance for commercial and wet/dusty environments, suitable for factory floors and process areas. Feature → Business Impact → Application: IP55 protection protects sensitive components from dust and water jets, reducing maintenance downtime and extending service life in semi-exposed environments. Feature → Business Impact → Application: Compliance with IEC 62208 and IEC 61439-1-2, CE declarations, RoHS, and REACH ensures regulatory alignment and smoother procurement for engineering projects and plant upgrades. Feature → Business Impact → Application: Comprehensive documentation (Data Sheet IS2 Catalogue, 1STM604121R0006 manual) supports fast installation, service planning, and reliable warranty coverage, improving total cost of ownership for end users.
Get a Quick Quote for a ABB ES1825VK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1825VK?
Enquire Now
FAQs
The ES1825VK is a pre-assembled enclosure cabinet with a double glazed door and intermediate upright, designed to house control and automation boards in standard electrical rooms and machine automation installations. Its mounting is pre-assembled, reducing on-site labor and simplifying integration with PLCs, drives, and terminal blocks.
It provides IP55 protection per IEC 60529, guarding against dust ingress and water jets on factory floors and adjacent areas. The sheet steel construction with orange peel finish in RAL 7035 offers good corrosion resistance in typical industrial environments, while the transparent door aids visibility of internal components.
The cabinet includes CE conformity with Declaration of Conformity IS2, RoHS and REACH declarations, and ETIM classification EC000261. It complies with IEC 62208 and IEC 61439-1-2, and is compatible with NEMA configurations 1, 3R, 12 for broader integration with global systems.
Outer dimensions are 1800 mm height by 1200 mm width by 500 mm depth. Net dimensions include approximately 1210 mm width, 1911.5 mm height, and 1240 mm depth. Net weight is 121.316 kg, with a packaged weight of about 129.060 kg, informing handling and shipping planning.
Key documents include the 1STM604121R0006 installation manual and the IS2 Enclosures Technical Catalogue 2024 data sheet. These resources, along with CE declarations and RoHS/REACH information, support planning, commissioning, and routine maintenance for long-term reliability.
