ABB ES1826FV4K Cabinet - IP55 Enclosure
Part Number: ES1826FV4K
Quick Summary
ABB ES1826FV4K is a control and automation cabinet designed for reliable industrial control panels in harsh environments. Engineers often face installation delays due to wiring complexity and inconsistent enclosure quality; this pre-assembled cabinet cuts field wiring and speeds commissioning. It carries CE conformity, RoHS and REACH declarations, and robust standards alignment (IEC 62208, NEMA 1, 3R, 12) along with IP55 protection. These certifications, together with ETIM classification, give you confidence in procurement, while the durable sheet steel construction and precise finishes reduce lifecycle costs and simplify spare-part sourcing. For growing automation programs, the cabinet’s pre-assembled design translates to faster project turnover and predictable maintenance budgets.
Product Information
Extended Description

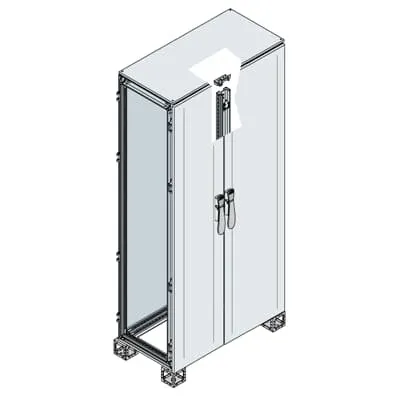

ES1826FV4K ABB: Cabinet with blind door 1800x1200x600mm (HxWxD) W=400mm
Configuration Type
5. Cabinet with cable container
Enclosure Type
Pre assembled - blind door cabinet with cable container
Mounting Type
Pre assembled
Product Type
5B5B10B150
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1210 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1240 mm
Product Net Weight
128.470 kg
Reference Depth/Length
600 mm
Reference Height
1800 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
136.670 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Pre-assembled cabinet with cable container – Business Impact: Reduces on-site wiring and commissioning time, lowering field labor costs and minimizing risk of wiring errors. Application: Ideal for automated lines and process control panels where fast deployment is critical and downtime is costly. Feature: IP55 protected enclosure with sheet steel construction – Business Impact: Withstands dust and moisture, extending service intervals and safeguarding sensitive electronics in harsh environments. Application: Suitable for manufacturing floors, outdoor installations under cover, and switchgear rooms requiring reliable protection. Feature: Double doors with orange peel RAL 7035 finish – Business Impact: Enhances accessibility for maintenance and visual inspection while delivering durable cosmetic performance. Application: Facilitates routine diagnostics, cable management, and component upgrades without service interruption. Feature: Compliance and standards alignment – Business Impact: Ensures CE, RoHS, REACH conformance and ETIM classification supporting regulatory audits and supply-chain validation. Application: Preferred for regulated sectors such as food & beverage, pharma, and automotive manufacturing where traceability matters. Feature: Dimensioned for integration – Business Impact: Clear reference and net dimensions (1800x1200x600 mm footprint) support precise planning, mounting, and integration with existing racks. Application: Streamlines cabinet placement, door clearance, and compatibility with standard mounting rails and cable containers.
Get a Quick Quote for a ABB ES1826FV4K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1826FV4K?
Enquire Now
FAQs
When planning installation, note the pre-assembled design to minimize field wiring and simplify wiring routing. The cabinet supports a 1800x1200x600 mm footprint with a 128.470 kg net weight and 136.670 kg gross package, which informs handling equipment needs and anchoring. Ensure adequate clearance for door operation and cable entry, and reference the IS2 catalogue for installation manuals.
Key specs include sheet steel construction with Orange Peel finish in RAL 7035, double doors, and a pre-assembled enclosure with a cable container. Net dimensions are 1210 mm width, 1911.5 mm height, and 1240 mm depth, with a reference footprint of 1200x1800x600 mm. It offers IP55 protection and complies with RoHS, REACH, and IEC/NEMA standards.
Yes. The cabinet aligns with IEC 62208 and IEC 61439-1-2 and is listed under NEMA 1, 3R, and 12 suitable configurations. With an IP55 rating, it provides protection against dust and splashing water, making it appropriate for indoor and semi-exposed industrial applications where certified enclosure performance matters.
The enclosure carries CE conformity, RoHS information with a 20250108 RoHS date, and a REACH declaration. It is classified under ETIM EC000261 and is documented in the IS2 Enclosures Technical Catalogue, helping procurement teams meet regulatory audit requirements and maintain consistent supplier qualification.
The pre-assembled design and cable container reduce installation time and on-site wiring complexity, delivering lower labor costs and faster commissioning. Its durable sheet steel build, IP55 protection, and standardized finishes translate to longer service life, easier component replacements, and predictable maintenance budgets, enhancing overall project ROI in automation initiatives.
