ABB ES1826K Cabinet Enclosure - IP55 Rating
Part Number: ES1826K
Quick Summary
ABB ES1826K cabinet enclosure protects control systems in industrial automation applications. Engineers often struggle with space constraints, dust, and mounting complexity; this enclosure addresses those challenges with IP55 protection, a durable sheet steel build, and a pre-assembled design for fast deployment. It aligns with CE marking, RoHS, and REACH, while also referencing IEC 62208 and IEC 61439-1-2 for safety and interoperability. The orange-peel finish in RAL 7035, combined with a double-door configuration and an intermediate upright, supports scalable control architectures, reduces on-site assembly time, and delivers long-term reliability for panel builders and plant engineers alike. This enclosure enables smoother IT/OT integration and lowers lifecycle costs by standardizing components and installation processes.
Product Information
Extended Description

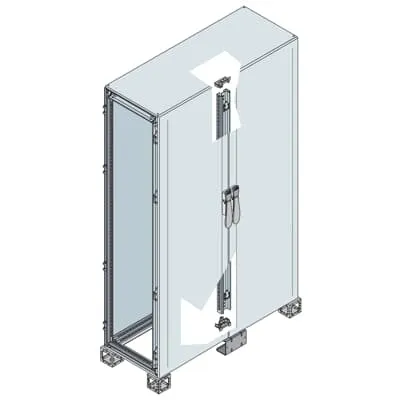

ES1826K ABB: Cabinet with double blind door 1800x1200x600mm (HxWxD)
Configuration Type
3. Cabinet with double door and intermediate upright
Enclosure Type
Pre assembled - cabinet with double blind door and intermediate upright
Mounting Type
Pre assembled
Product Type
5B5B10B110
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1210 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1240 mm
Product Net Weight
130.6980 kg
Reference Depth/Length
600 mm
Reference Height
1800 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
139.040 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature → Business Impact → Application: Cabinet is pre-assembled with double doors and an intermediate upright, which accelerates installation and reduces field assembly errors in control panels used in manufacturing lines. Feature → Business Impact → Application: IP55 protection with sheet steel construction resists dust and water ingress, extending service life in harsh environments and minimizing downtime for critical automation cabinets in process industries. Feature → Business Impact → Application: Orange Peel surface in RAL 7035 provides durable aesthetics and easier maintenance, improving inspection cycles and long-term corrosion resistance in outdoor or semi-outdoor plant installations. Feature → Business Impact → Application: RoHS and REACH compliance, plus IEC 62208 and IEC 61439-1-2 alignment, simplify regulatory approvals and ensure interoperability across multi-vendor automation architectures. Feature → Business Impact → Application: Lightweight yet sturdy design at approximately 130.7 kg net weight supports safe handling during installation while accommodating standard control hardware inside the cabinet. Feature → Business Impact → Application: Documentation and pre-defined mounting options streamline procurement and reduce project risk for panel builders deploying large-scale control enclosures.
Get a Quick Quote for a ABB ES1826K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1826K?
Enquire Now
FAQs
The ES1826K arrives pre-assembled with double doors and an intermediate upright, simplifying on-site installation. Ensure mounting location accommodates the 1800 mm height and 1200 mm width, and verify that adjacent equipment allows for the 600 mm depth. Use the included installation manual 1STM604121R0006 for sequence guidance and to plan cabling routes.
The cabinet provides IP55 protection, safeguarding against dust ingress and water jets. It is constructed from sheet steel with an orange peel surface finished in RAL 7035, offering durable aesthetics and corrosion resistance. The double-door design supports easy access to internal components while maintaining enclosure integrity in demanding environments.
This enclosure aligns with CE declarations and compliance for RoHS and REACH, with references to IEC 62208 and IEC 61439-1-2 for cabinet provisions. It is categorized under ETIM 8/9 EC000261 for enclosure classification, and is suitable for environments requiring certified safety and interoperability across multi-vendor automation systems.
Yes. It is designed for control and automation panels in manufacturing, process plants, and other industrial automation settings. The pre-assembled cabinet supports rapid panel integration, while the IP55 rating provides reliable protection in semi-dusty and damp environments where control electronics require robust housing and straightforward maintenance.
The ES1826K reduces on-site assembly time and simplifies spare-part planning due to its pre-assembled configuration and standardized finishes. Its durable construction and regulatory compliance help minimize downtime, extend service intervals, and lower lifecycle costs, delivering a favorable ROI for panel builders and OEMs managing multiple control cabinets.
