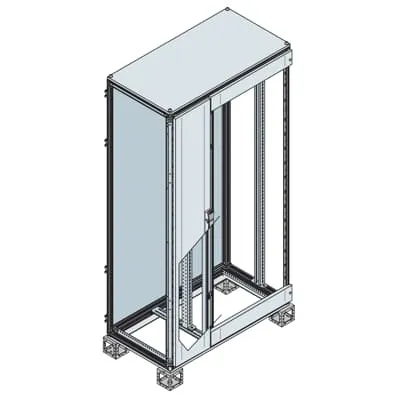

ABB ES1826MF4K Cabinet for Enclosures - IP55 Certified
Part Number: ES1826MF4K
Quick Summary
ABB ES1826MF4K Cabinet for Enclosures is a preassembled control and automation cabinet for multi-compartment electrical systems. Engineers often wrestle with space constraints, cable routing, and meeting evolving standards during panel integration. This cabinet aligns with CE conformity, IP55 protection, and IEC 62208/61439-1-2 requirements to ensure safe, reliable operation in harsh industrial environments. With installation-ready, preassembled configuration and sheet steel construction, it accelerates project timelines, reduces on-site labor, and improves maintainability for OEMs and system integrators in automation spaces. Its RoHS and REACH compliance further simplify procurement and global sourcing. Designed for IS2 enclosure families, it meets IS2 enclosures catalogue guidance for system integrators.
Product Information
Extended Description
ES1826MF4K ABB: Cabinets for compartments 1800x600x1200mm (HxDxW) with Cable container W=400mm
Configuration Type
6. Cabinet for configuration with compartments
Enclosure Type
Pre assembled - cabinet for configuration with comprtments
Mounting Type
Pre assembled
Product Type
5B5B10B180
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1210 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1240 mm
Product Net Weight
111.8320 kg
Reference Depth/Length
600 mm
Reference Height
1800 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
118.970 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Preassembled cabinet with compartments enables configuration-ready installations. This reduces field wiring and assembly time, cutting commissioning costs and mitigating wiring errors for complex multi-zone control architectures in factory automation. The result is faster project startups and improved reliability for machine builders and system integrators. Durable sheet steel construction with orange peel surface in RAL 7035 provides corrosion resistance and consistent aesthetics, supporting long-term maintenance cycles in harsh environments. The double door design improves accessibility and sealing, while modular compartment layouts simplify heat management and component organization, reducing downtime during upgrades and routine servicing. IP55 protection delivers robust dust and water protection per IEC 60529, allowing safe operation on factory floors and near equipment with limited access. The cabinet’s dimensions—1210 mm width, 1911.5 mm height, 1240 mm depth—and a weight around 111.8 kg enable accurate planning for footprint, cabling, and palletized shipping. Compliance with CE, RoHS, and REACH standards, plus ETIM EC000261 classification, streamline procurement and cross-border deployments in global automation projects. Installation documentation includes CE declarations, RoHS/REACH information, and detailed manuals, supporting fast, compliant commissioning and future expansions. Overall, the ES1826MF4K delivers predictable lifecycle costs, easier spare-part sourcing, and improved ROI for OEMs and integrators investing in modular industrial enclosures.
Get a Quick Quote for a ABB ES1826MF4K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1826MF4K?
Enquire Now
FAQs
The ES1826MF4K aligns with IS2 enclosure family guidelines and supports IEC 62208 and IEC 61439-1-2 compliance. It carries CE conformity, RoHS/REACH declarations, and ETIM EC000261 classification for enclosure cabinets. This compatibility reduces engineering overlap and ensures predictable integration with IS2 components in global automation projects.
The cabinet offers a net footprint of 1210 mm in width, 1911.5 mm in height, and 1240 mm in depth, with a reference size of 600 mm by 1800 mm by 1200 mm. Weight is approximately 111.832 kg. Use these figures for precise control-room layout, cable routing, and access clearances during project planning.
Yes. IP55-rated protection guards against dust ingress and water jets from any direction, making it suitable for factory floors and nearby equipment. The enclosure features orange peel surface finish in RAL 7035 for durability, double doors for service access, and sturdy sheet steel construction to withstand demanding industrial conditions.
The cabinet ships with a CE Declaration of Conformity IS2, RoHS information, and REACH information. Installation guidance is provided via the reference 1STM604121R0006, and the IS2 Enclosures Technical Catalogue 2024 contents support procurement and compliance workflows, including relevant ETIM and standards references.
Preassembled configuration minimizes commissioning time and reduces field wiring errors, lowering on-site labor. The modular compartments simplify future upgrades and routine servicing, while robust enclosure construction and standardized dimensions improve spare-part sourcing. For OEMs and integrators, this translates to faster ramp-ups, predictable lifecycle costs, and higher uptime on critical automation lines.
