ABB ES1826VC4K Cabinet - IP55 Enclosure, CE-Certified
Part Number: ES1826VC4K
Quick Summary
ABB ES1826VC4K is a rugged control cabinet designed for industrial automation and electrical control panels. Maintenance downtime and wiring complexity slow projects; this cabinet helps accelerate assembly and simplify service. It carries CE conformity, IP55 protection, and is aligned with IEC 62208 and IEC 61439-1/2 standards to meet global enclosure requirements. For engineers and procurement teams, the pre-assembled glazed-door design and integrated cable container streamline installation while reducing field wiring time. The enclosure also leverages RoHS/REACH compliance and ETIM classifications to support compliant sourcing and long-term maintenance planning, making a strong fit for IS2 enclosure catalog guidance and modern factory architectures.
Product Information
Extended Description

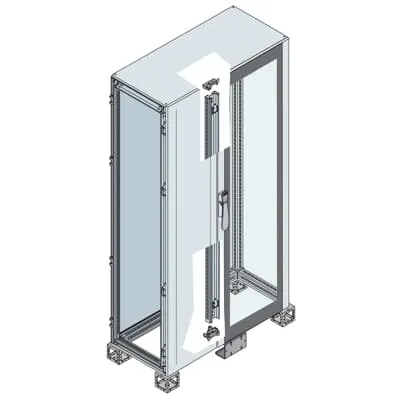

ES1826VC4K ABB: Cabinet with glass door1800x1200x600mm (HxWxD) W=400mm
Configuration Type
5. Cabinet with cable container
Enclosure Type
Pre assembled - glazed door cabinet with cable container
Mounting Type
Pre assembled
Product Type
5B5B10B150
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1210 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1240 mm
Product Net Weight
124.870 kg
Reference Depth/Length
600 mm
Reference Height
1800 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
132.840 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Pre-assembled, glazed-door cabinet with a cable container reduces on-site labor and wiring errors, speeding commissioning and serviceability across production lines. The IP55-rated enclosure protects sensitive electronics from dust and moisture, lowering failure rates in harsh environments and extending equipment life. A double-door, transparent door surface enables quick visual inspections without compromising security, accelerating diagnostics and preventive maintenance. Built from sheet steel with an orange-peel finish in RAL 7035, it provides durable, corrosion-resistant protection while maintaining safety-conscious aesthetics in busy industrial spaces. RoHS and REACH compliance plus ETIM EC000261 classification support compliant sourcing and easy procurement data. With dimensions based on 1800x1200x600 mm references and 1210 mm net width, the unit fits IS2 enclosure guidelines and factory layouts, enabling standardized installations and scalable configurations.
Get a Quick Quote for a ABB ES1826VC4K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1826VC4K?
Enquire Now
FAQs
The ES1826VC4K uses a pre-assembled mounting configuration designed for fixed installation in 1800x1200 mm footprints. Its glazing and cable-container design simplify on-site assembly and integration with existing control panels, reducing field wiring time and enabling quicker commissioning.
It complies with IP55 protection per IEC 60529, and aligns with IEC 62208 and IEC 61439-1/2 standards. It also carries CE conformity and RoHS/REACH declarations, ensuring regulatory compliance across global markets.
Yes. The IP55-rated enclosure with sheet steel construction and orange-peel RAL 7035 finish is designed to withstand dust and moisture typical of manufacturing floors and control rooms, while maintaining visibility through the glazed door.
Key certifications include CE Declaration of Conformity, RoHS information with RoHS date 20250108, REACH declaration, and eClass/ETIM classifications. It is also listed under IS2 enclosure guidelines for standardized catalog referencing.
Pre-assembled glazing and a dedicated cable container minimize field labor and wiring mistakes, shortening installation time and reducing downtime. RoHS/REACH compliance and ETIM data streamline procurement and service planning, contributing to lower lifecycle costs.
