ABB ES1827K Cabinet - IP55 Enclosure for Control Panels
Part Number: ES1827K
Quick Summary
ABB ES1827K is a robust cabinet enclosure designed for industrial control panels and automation systems. This pre-assembled solution minimizes field installation time and reduces wiring errors by delivering a ready-to-use enclosure with double doors and an intermediate upright. Operators often struggle with misaligned doors, poor sealing, and inconsistent finishes; this design addresses those challenges with a rigid sheet steel shell, orange-peel surface finished in RAL 7035, and a certified IP55 rating. Compliance is built in, featuring CE declarations and standards like IEC 62208/61439-1-2, ETIM EC000261, and RoHS/REACH documentation. For systems integrators, the ES1827K offers predictable sourcing, easy mounting compatibility, and a clear total cost of ownership advantage through reduced install time and maintenance needs.
Product Information
Extended Description

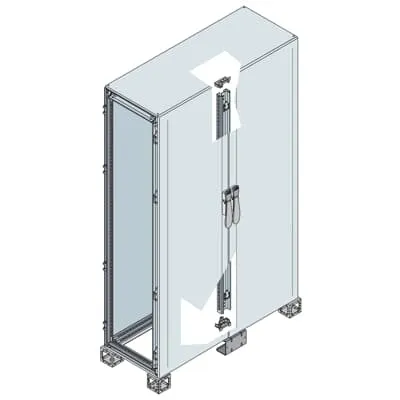

ES1827K ABB: Cabinet with double blind door 1800x1200x500mm (HxWxD)
Configuration Type
3. Cabinet with double door and intermediate upright
Enclosure Type
Pre assembled - cabinet with double blind door and intermediate upright
Mounting Type
Pre assembled
Product Type
5B5B10B110
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1210 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1240 mm
Product Net Weight
126.740 kg
Reference Depth/Length
500 mm
Reference Height
1800 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
134.830 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Pre-assembled cabinet with double door and intermediate upright → Business Impact: Reduces field assembly errors and installation time while ensuring consistent alignment and seal integrity → Application: Ideal for automated control panels in manufacturing lines and plant automation. The robust design minimizes commissioning delays for machine builders and integrators. Feature: IP55 protection with sheet steel construction and orange-peel finish in RAL 7035 → Business Impact: Enhanced protection against dust and water ingress translates to longer component life and reduced maintenance downtime → Application: Harsh factory floors, outdoor-adjacent equipment rooms, and moisture-prone environments. Feature: Large internal footprint (1200x1800x500 mm exterior; net width 1210 mm, height 1911.5 mm, depth 1240 mm) and substantial weight (126.740 kg) → Business Impact: Provides ample space for mounting, cable management, and heat dissipation while preserving mounting rigidity → Application: Complex control panels, power distribution, and multi-line automation controllers. Feature: Material and finish meet RoHS/REACH obligations, CE conformity, and ETIM classification (EC000261) → Business Impact: Compliance-ready sourcing reduces regulatory risk and accelerates procurement cycles → Application: Global deployments across automotive, food & beverage, and process industries. Feature: Pre-assembled mounting type and installation documentation (1STM604121R0006) → Business Impact: Streamlined assembly, faster project timelines, and reduced on-site training requirements → Application: System integrators and OEMs seeking predictable installation workflows. Feature: Standards compliance and declarations (IEC 62208, IEC 61439-1-2; NEMA 1, 3R, 12) → Business Impact: Broad compatibility with international panels and controls, lowering integration friction → Application: Multinational factories requiring consistent cabinet performance across sites.
Get a Quick Quote for a ABB ES1827K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1827K?
Enquire Now
FAQs
ABB ES1827K is designed as a pre-assembled enclosure aligned to IS2 enclosures and ETIM EC000261 (Enclosure/cabinet empty). This compatibility supports standardized sizing, mounting interfaces, and classification across global automation projects, reducing integration time and ensuring consistent data tagging for procurement and maintenance activities.
The ES1827K uses a sheet steel enclosure with an IP55 protection rating, suitable for protected indoor and semi-exposed environments. Exterior dimensions are 1200 mm width by 1800 mm height and 500 mm depth, with a net width of 1210 mm, net height of 1911.5 mm, and net depth of 1240 mm. The cabinet weighs approximately 126.740 kg and features an orange-peel finish in RAL 7035.
Yes. The ES1827K carries CE declarations and RoHS/REACH information, including REACH data confirming no substances above 0.1 mass percent. It also adheres to IEC 62208 and IEC 61439-1-2 standards and provides WEEE considerations, making it appropriate for regulated industrial environments requiring robust compliance.
The cabinet ships pre-assembled with a double-door configuration and an intermediate upright, reducing field assembly and alignment issues. It includes mounting instructions (1STM604121R0006), which simplifies on-site wiring and mounting, shortens project timelines, and improves overall install quality and predictability for OEMs and integrators.
ES1827K is accompanied by a Declaration of Conformity CE IS2, RoHS and REACH declarations, WEEE status, and standards alignment including IEC 62208, IEC 61439-1-2, and ETIM classifications (EC000261). These provide traceability for regulatory reviews, product permitting, and global procurement programs.
