ABB ES1828MF4K Cabinet for Configuration - Enclosure IP55
Part Number: ES1828MF4K
Quick Summary
ABB ES1828MF4K cabinet for configuration provides rugged enclosures for industrial control panels in manufacturing lines. When space is tight, wiring and maintenance can become a bottleneck, so a pre-assembled, multi-compartment cabinet helps streamline installation and reduce field wiring errors. It complies with CE conformity, RoHS and REACH requirements, and references IEC 62208 and IEC 61439-1-2, ensuring reliable electrical safety and performance. This enclosure also leverages ETIM classification for procurement, while the orange peel finish in RAL 7035 delivers durable visibility on the plant floor. By combining standardized data with robust construction, it supports faster commissioning and easier ongoing service for control systems.
Product Information
Extended Description

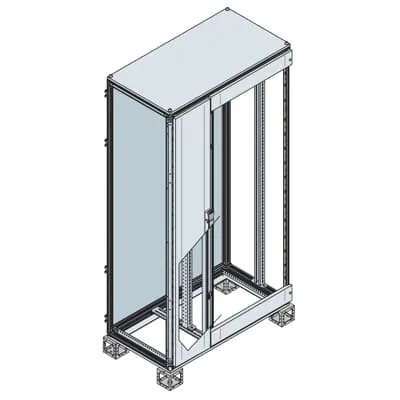

ES1828MF4K ABB: Cabinets for compartments 1800x800x1200mm (HxDxW) with Cable container W=400mm
Configuration Type
6. Cabinet for configuration with compartments
Enclosure Type
Pre assembled - cabinet for configuration with comprtments
Mounting Type
Pre assembled
Product Type
5B5B10B180
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1210 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
1240 mm
Product Net Weight
119.6710 kg
Reference Depth/Length
800 mm
Reference Height
1800 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
127.310 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature → Business Impact → Application: The cabinet is pre assembled with compartments, which reduces on-site assembly time and minimizes wiring mistakes, accelerating machine start-up in production lines. This translates to lower labor costs and faster ROI for new lines or retrofits. Feature → Business Impact → Application: IP55 protection protects against dust ingress and water jets, improving reliability in dusty factory floors and outdoor or semi-exposed silos; ideal for process plants and material handling. Feature → Business Impact → Application: Orange Peel surface finish in RAL 7035 provides consistent color and corrosion resistance, supporting safer maintenance routines and compliant labeling in high-visibility zones. Feature → Business Impact → Application: Sheet steel construction delivers robust mechanical strength for heavy-use cabinets, enabling longer service life in harsh environments with minimal risk of deformation. Feature → Business Impact → Application: Double-door access enhances maintenance efficiency and rapid component replacement, reducing downtime in control rooms and machine cabinets. Feature → Business Impact → Application: RoHS and REACH compliance assures regulatory conformity and easier worldwide export, smoothing supplier audits and vendor qualification for global projects. Feature → Business Impact → Application: ETIM EC000261 alignment standardizes data exchange for enclosures, simplifying catalog searches, BOM creation, and procurement tools across ERP systems.
Get a Quick Quote for a ABB ES1828MF4K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1828MF4K?
Enquire Now
FAQs
Yes. The ES1828MF4K is a pre-assembled cabinet with compartments designed for easy integration into established control panel layouts. It supports standard mounting patterns, features a double-door access, and ships in a size compatible with common DIN rail and panel interface configurations, helping reduce integration time and field wiring complexity.
This cabinet carries CE conformity and RoHS/REACH compliance. It aligns with IEC 62208 and IEC 61439-1-2 for enclosure performance, supports IP55 protection, and is referenced in ETIM 8/9 EC000261 for standardized data. These certifications support regulatory compliance and safer operation in industrial environments.
The ES1828MF4K is a cabinet for configuration with compartments, delivered pre-assembled. It features multiple interior sections to organize control boards, power supplies, and cabling. This layout enhances cable management, reduces maintenance time, and simplifies future reconfiguration as process needs evolve.
The rugged sheet steel construction with IP55 protection minimizes dust ingress and water exposure, while the double-door design provides quick access to components. The pre-assembled configuration reduces field installation errors, enabling faster maintenance, fewer downtime events, and more reliable long-term operation in demanding environments.
While upfront cost reflects premium enclosure quality, the ES1828MF4K lowers installation labor, cuts commissioning time, and reduces field wiring mistakes. The CE, RoHS/REACH compliance and ETIM data support streamlined procurement and vendor qualification, contributing to lower total cost of ownership over the cabinet’s service life.
