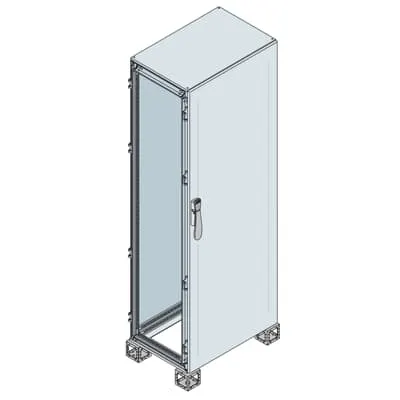

ABB ES1848K Cabinet - IP55 Enclosure, 1800x400x800
Part Number: ES1848K
Quick Summary
ABB ES1848K Cabinet is a preassembled enclosure designed to protect control and automation boards in industrial control panels. Many projects struggle with integrating robust protection, reliable mounting, and regulatory compliance within tight enclosure footprints. This cabinet offers IP55 protection with a single door and preassembled mounting, backed by CE conformity and IEC 62208 and IEC 61439-1-2 standards to simplify procurement and reduce risk. The RoHS information and REACH declarations help ensure regulatory alignment across markets, while the RAL 7035 light-grey finish and orange-peel surface deliver durable visibility in maintenance-heavy environments. Adopting this enclosure minimizes installation time, ensures consistent wiring practices, and supports scalable automation deployments.
Product Information
Extended Description
ES1848K ABB: Cabinet with blind door 1800x400x800mm (HxWxD)
Configuration Type
1. Cabinet with single door
Enclosure Type
Pre assembled - cabinet with blind door
Mounting Type
Pre assembled
Product Type
5B5B10B110
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
410 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
440 mm
Product Net Weight
63.450 kg
Reference Depth/Length
800 mm
Reference Height
1800 mm
Reference Width
400 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
67.500 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Preassembled cabinet with blind door and single-door configuration. Benefit: Reduces installation time and wiring errors by delivering a ready-to-use enclosure that fits standard panel layouts. Application: Control panels for automation systems where quick deployment and consistent fit are critical. Long-tail keywords: preassembled enclosure, cabinet with blind door, single-door enclosure. Feature: IP55-rated protection and sheet steel construction. Benefit: Provides reliable ingress protection against dust and water spray, improving uptime in harsh plant environments. Application: Industrial environments with washdown or dusty processes. Long-tail keywords: IP55 enclosure, sheet steel cabinet, durable control cabinet. Feature: RoHS, REACH compliance and CE declaration. Benefit: Ensures global regulatory compliance, reducing risk and QA hold-ups across multi-site deployments. Application: Electrical cabinets in regulated industries such as manufacturing, food & beverage, and automotive. Long-tail keywords: RoHS information, REACH declaration, CE conformity. Feature: RAL 7035 orange-peel finish and opaque door surface. Benefit: High visibility and enduring aesthetics that simplify routine inspection and maintenance. Application: Enclosures requiring clear identification and long-term color stability. Long-tail keywords: RAL 7035, orange peel surface, enclosure color. Feature: Standards alignment IEC 62208, IEC 61439-1-2, ETIM EC000261. Benefit: Simplifies procurement through certified performance and standardized classification, accelerating engineering acceptance. Application: Projects demanding certified enclosures for control cabinets. Long-tail keywords: IEC 62208, IEC 61439, ETIM EC000261.
Get a Quick Quote for a ABB ES1848K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1848K?
Enquire Now
FAQs
The ES1848K arrives preassembled with a single blind-door enclosure, designed to simplify mounting and wiring. Use standard mounting patterns and ensure alignment with the 1800x400x800 mm reference dimensions. The CE declaration and IEC 62208/61439-1-2 compliance help verify compatibility with existing panel interfaces and safety requirements.
Yes. The enclosure is listed with CE conformity and references IEC 62208, IEC 61439-1-2 standards, providing a verified framework for electrical reliability and safety in control cabinets used across multiple industries.
The IP55 rating makes it suitable for damp or dusty industrial environments, process automation, and outdoor installations with protection against water spray. Its 1800x400x800 mm footprint supports mid-size control panels and wiring looms, while the RAL 7035 finish aids visibility and maintenance.
Check enclosure footprint against your existing panel dimensions (1800x400x800 mm), mounting type (preassembled), and door configuration (single). Confirm RoHS/REACH compliance for regulatory alignment and verify the enclosure meets IP55 and the listed IEC standards to ensure seamless integration with existing electrical assemblies.
By delivering a ready-to-install, compliant enclosure with durable surface finishing and standardized dimensions, downtime is reduced during installation and maintenance, wiring errors decline, and multi-site procurement becomes simpler—leading to faster project timelines and lower total cost of ownership.
