ABB ES1860K Cabinet - IP55 Enclosure (IEC 62208)
Part Number: ES1860K
Quick Summary
ABB ES1860K Cabinet is a control and automation enclosure for industrial control panels. It addresses common enclosure challenges like IP55 protection, pre-assembly, and installation efficiency. Certified with IP55 protection, CE conformity, and IEC 62208/61439-1-2 compatibility, it meets stringent industry standards. The enclosure features an orange peel finish in RAL 7035 and is designed to accelerate installation while reducing on-site labor. This pre-assembled cabinet supports IS2 enclosure practices, delivering reliable performance in automated environments and offering tangible business value through faster deployment and easier maintenance.
Product Information
Extended Description

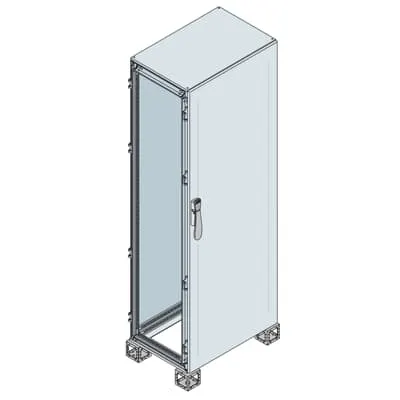

ES1860K ABB: Cabinet with blind door 1800x600x1000mm (HxWxD)
Configuration Type
1. Cabinet with single door
Enclosure Type
Pre assembled - cabinet with blind door
Mounting Type
Pre assembled
Product Type
5B5B10B110
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
610 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
640 mm
Product Net Weight
82.9550 kg
Reference Depth/Length
1000 mm
Reference Height
1800 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
88.250 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature a pre-assembled cabinet with a blind door is designed to reduce on-site assembly time and project risk, enabling faster start-ups and improved site safety. Business impact includes lower labor costs, shorter commissioning windows, and consistent build quality across installations, making it ideal for modular automation cells. Application: control rooms and machine centers in manufacturing lines seeking rapid deployment and repeatable enclosure performance. Feature IP55 protection plus a durable sheet steel construction with orange peel surface in RAL 7035 delivers robust environmental resilience and easier cleaning, lowering maintenance costs and downtime. Application: harsh factory floors and outdoor-rated indoor spaces where ingress protection and long-term appearance matter. Feature single door, pre-assembled mounting and 1-piece cabinet with a 600x1800x1000 mm footprint optimizes space planning in compact automation zones while supporting straightforward retrofit and scalable configurations. Application: mid-to-large automation projects requiring a reliable, modular enclosure with predictable service life. Feature RoHS and REACH compliance, CE declarations, and ETIM/eClass classifications ensure regulator-ready documentation and seamless procurement integration. Business impact includes faster audits, simpler supplier qualification, and reduced compliance risk. Application: regulated industries and OEMs targeting easy certification and supply chain traceability. Feature IS2 Enclosures Technical Catalogue compatibility and documented manuals (1STM604121R0006) support fast training and fault resolution, while data sheets enable precise component selection. Application: engineering teams validating enclosure specs or sourcing replacements within IS2 guidelines. Feature standardized dimensions and packaging support; 82.955 kg net weight and 88.250 kg gross packaging facilitate transport planning and risk minimization. Application: logistics teams coordinating warehouse and installation activities for large cabinets.
Get a Quick Quote for a ABB ES1860K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1860K?
Enquire Now
FAQs
The ES1860K is a pre-assembled enclosure with a single door and blind door design, optimized for rapid integration with existing control hardware. Its IEC 62208/61439-1-2 compatibility and NEMA 1, 3R, 12 suitability mean it fits standard control panels and modular automation layouts with minimal site modifications. On-site labor is reduced thanks to pre-assembled mounting and standardized dimensions, streamlining retrofits and new builds.
Key specs include IP55 protection, sheet steel construction, RAL 7035 orange peel finish, and a 1800 mm height by 600 mm width by 1000 mm depth external footprint (reference), with net dimensions around 610 mm width, 1911.5 mm height, and 640 mm depth. The cabinet uses a single-door configuration, pre-assembled mounting, and RoHS/REACH compliance, ensuring reliable performance in industrial environments.
Ideal for factory automation, process control, and panel building where robust protection and quick deployment matter. Its IS2 Enclosures lineage, CE declaration, and ETIM/eClass classifications support manufacturing, robotics, and energy automation projects requiring compliant, readily installable enclosures with predictable service life.
The ES1860K carries CE conformity, RoHS information with a 20250108 RoHS date, REACH declaration, and REACH date. It complies with IEC 62208 and IEC 61439-1-2 standards and supports NEMA 1, 3R, 12 environments. The Declaration of Conformity IS2 and IS2 Enclosures Catalogue references further validate regulatory readiness.
By providing a pre-assembled, ready-to-install cabinet with a proven IP55 rating and standard dimensions, it reduces installation time, minimizes commissioning risk, and lowers field labor costs. Certified materials and documented data sheets simplify audits and procurement, delivering faster project timelines and improved total cost of ownership.
