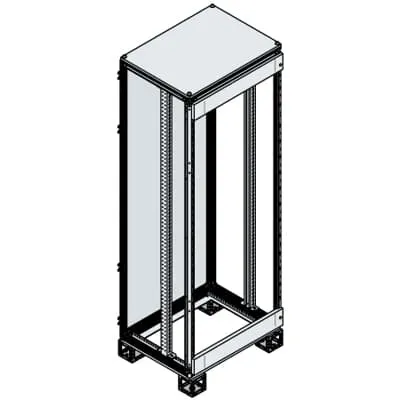

ABB ES1860MFK Cabinet for Configuration - IP55 Enclosure
Part Number: ES1860MFK
Quick Summary
ABB ES1860MFK is a preassembled control cabinet for configuration with compartments, optimized for industrial automation applications. It addresses the common challenge of lengthy field assembly by delivering a ready-to-install enclosure that reduces project timelines and wiring errors. The design aligns with CE compliance and IP55 protection, supporting safer operation in harsh environments. With RAL 7035 orange peel finish and robust sheet steel construction, this cabinet blends durable protection with professional aesthetics, aiding consistent BOMs and scalable deployments across manufacturing and process industries.
Product Information
Extended Description
ES1860MFK ABB: Cabinets for compartments 1800x1000x600mm (HxDxW) with Cable container W=-mm
Configuration Type
6. Cabinet for configuration with compartments
Enclosure Type
Pre assembled - cabinet for configuration with comprtments
Mounting Type
Pre assembled
Product Type
5B5B10B180
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
610 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
640 mm
Product Net Weight
86.6210 kg
Reference Depth/Length
1000 mm
Reference Height
1800 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
92.150 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature → Business Impact → Application: The cabinet is preassembled with compartments, which shortens installation time and minimizes on-site wiring errors, delivering faster time-to-value for automation projects across machine tending and packaging lines. Application: Ideal for turnkey control panels in automotive assembly or food and beverage process lines where reliability and rapid deployment matter. Feature → Business Impact → Application: External dimensions and reference dimensions provide predictable integration within existing layouts, reducing the risk of enclosure clash and enabling smoother rack-and-bay planning. Application: Fits standard control room or equipment housing footprints in industrial environments. Feature → Business Impact → Application: Orange Peel surface in RAL 7035 delivers durable corrosion resistance and easy maintenance, lowering lifecycle costs and downtime. Application: Enclosures exposed to dust or humidity in metalworking or material handling facilities. Feature → Business Impact → Application: Sheet steel construction provides rigidity and EMI shielding, improving shielded control panel performance in high-traffic production halls. Application: Critical for PLCs and control modules in heavy industrial automation. Feature → Business Impact → Application: IP55 protection reduces ingress of dust and water, increasing uptime in dusty workshops or damp environments. Application: Suitable for outdoor or semi-enclosed automation installations with limited weather exposure. Feature → Business Impact → Application: CE declaration, RoHS and REACH compliance simplify global procurement and reduce regulatory risk. Application: Compliance-heavy deployments across Europe, Middle East, and Africa. Feature → Business Impact → Application: IS2 Enclosures Technical Catalogue 2024 reference supports standardized specification management and replacement planning. Application: BOM integration and supplier qualification in large factories.
Get a Quick Quote for a ABB ES1860MFK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1860MFK?
Enquire Now
FAQs
The ES1860MFK ships preassembled for quick integration. Mount on standard base supports, align with reference depth of 1000 mm and height around 1800 mm, then secure doors and electrical trays per the 1STM604121R0006 manual. Ensure IP55 seals are engaged, connect wiring via approved trays, and verify CE labeling before commissioning.
This enclosure features IP55 ingress protection, a durable Orange Peel finish in RAL 7035, and is constructed from sheet steel. It complies with RoHS and REACH declarations, with CE conformity. Standards include IEC 62208 and IEC 61439-1-2, ensuring reliable performance in industrial environments and compatibility with IS2 enclosures catalogues.
Yes. The ES1860MFK is designed to meet IEC 61439-1-2 requirements for industrial enclosures and switchgear assemblies, along with IEC 62208. Its CE declaration and robust IP55 protection support safe, compliant installations in automation control panels and power distribution cabinets.
Documentation includes Declaration of Conformity CE, RoHS and REACH declarations, and the IS2 Enclosures Technical Catalogue 2024 data. A manual reference is 1STM604121R0006. These materials support compliance audits, maintenance planning, and help with parts replacement or BOM updates.
The cabinet has a net weight of 86.6210 kg and a package-level gross weight of 92.150 kg, shipped as a single piece. This information aids freight planning, reduces shipment surprises, and supports accurate total cost of ownership calculations for automation projects.
