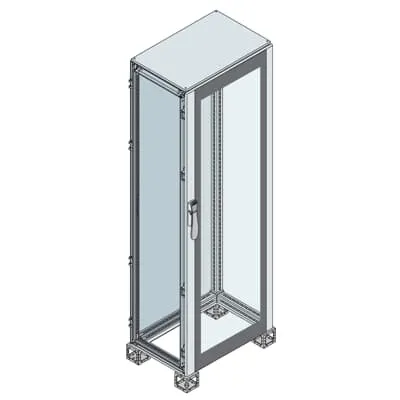

ABB ES1860VK Cabinet with glazed door - IP55, CE
Part Number: ES1860VK
Quick Summary
ABB ES1860VK cabinet with glazed door provides a robust control enclosure for industrial automation. It helps engineers secure equipment while meeting space constraints, IP protection, and installation timelines. The enclosure carries CE conformity, IP55 protection, and RoHS/REACH compliance, aligning with IEC 62208 and IEC 61439-1/2. This combination supports faster deployment, safer maintenance, and reliable operation in harsh factory environments, while offering pre-assembled advantages and clear documentation for smoother project handovers. In high-demand production lines, the clear door facilitates visual status checks without compromising enclosure integrity, and the durable orange peel finish under RGB 7035 ensures long-term aesthetics in strict manufacturing settings. Overall, it delivers measurable business value through reduced downtime and streamlined panel builds.
Product Information
Extended Description
ES1860VK ABB: Cabinet with glazed door 1800x600x1000mm (HxWxD)
Configuration Type
1. Cabinet with single door
Enclosure Type
Pre assembled - cabinet with glazed door
Mounting Type
Pre assembled
Product Type
5B5B10B120
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
610 mm
Product Net Height
1911.5 mm
Product Net Depth / Length
640 mm
Product Net Weight
80.2480 kg
Reference Depth/Length
1000 mm
Reference Height
1800 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
85.370 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Pre assembled cabinet with glazed door. Benefit: Speeds up installation and reduces on-site assembly risk, enabling faster start-up of new lines or machine upgrades. Application: Machine control panels in manufacturing environments that require quick deployment and easy access for commissioning. Feature: IP55 protection. Benefit: Keeps dust and water intrusion to a minimum, lowering maintenance costs and extending component life in dusty or damp facilities. Application: Food processing, packaging, and automotive assembly lines where washdown or dusty conditions are common. Feature: Material and finish. Benefit: Sheet steel construction with an orange peel finish (RAL 7035) provides rugged durability and easy cleaning, reducing repaint frequency and downtime. Application: Industrial enclosures in harsh factory floors and outdoor-adjacent spaces. Feature: Glazed door for visibility. Benefit: Enables rapid visual inspections without opening the cabinet, improving fault diagnosis time and operator safety. Application: Control cabinets housing PLCs, drives, and I/O modules. Feature: Compliance and standards. Benefit: IEC 62208/61439-1-2 alignment, RoHS/REACH, and CE declaration reduce regulatory risk and simplify audits. Application: Compliance-driven projects in regulated industries. Feature: Dimensions and weight. Benefit: Reference dimensions 1800x600x1000 mm with a solid 80.25 kg weight providing a stable, secure enclosure and predictable installation footprint. Application: Panel builds requiring precise space planning and mount tolerance. Feature: Documentation and manuals. Benefit: Access to installation instructions and product data sheets accelerates commissioning and reduces technical support time. Application: System integrators delivering turnkey automation solutions.
Get a Quick Quote for a ABB ES1860VK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES1860VK?
Enquire Now
FAQs
This pre-assembled cabinet is designed for straightforward mounting in standard switchboard or equipment racks. It supports conventional surface or flush mounting, with a single glazed door for easy inspection. Refer to the IS2 manual 1STM604121R0006 to ensure correct clearance, ventilation, and cable routing. Use compatible gaskets and seals to preserve IP55 performance.
Key specs include an outer dimension of 1800x600x1000 mm (H x W x D) with a net width of 610 mm and net height of 1911.5 mm. The enclosure uses sheet steel, features an orange peel finish in RAL 7035, and has IP55 protection. It weighs approximately 80.25 kg and carries RoHS/REACH declarations plus CE conformity.
Yes. The enclosure aligns with IEC 62208 and IEC 61439-1/2, supports RoHS information and REACH declarations, and carries CE conformity. WEEE guidance indicates the product is not within WEEE scope. These certifications help streamline regulatory audits and ensure suitability for regulated manufacturing environments.
Ideal for control panels in automation and process environments, including machine control, drive cabinets, and PLC housings. The glazed door supports quick visual checks, while IP55 protection helps maintain reliability in dusty or damp factory floors. Its pre-assembled design reduces lead times for machine upgrades and new line installations.
Maintenance benefits include easier inspections through the glazed door and durable surface finish that resists wear in harsh environments. ROI gains come from reduced installation time, shorter commissioning cycles, and lower risk of non-compliance due to CE/RoHS/REACH adherence, contributing to lower total cost of ownership over the cabinet’s life cycle.
