ABB ES2224VK Other/Miscellaneous - IP55
Part Number: ES2224VK
Quick Summary
ES2224VK is an industrial control and automation cabinet designed to protect critical electronics in harsh environments. Engineers face space constraints, complex wiring, and the need for reliable protection against dust and moisture on demanding production lines. The enclosure carries CE conformity, RoHS/REACH declarations, and IEC/IP standards including IP55 and IEC 62208 and IEC 61439-1-2, providing verified safety and performance. Pre-assembled with a double glazed door, orange-peel surface in RAL 7035, and a robust sheet-steel body, it reduces install time and simplifies maintenance while delivering durable, easy-to-clean surfaces. With robust construction and pre-fabricated mounting, the ES2224VK supports fast commissioning, scalable configurations, and compliant control-room or machine-environment deployments.
Product Information
Extended Description

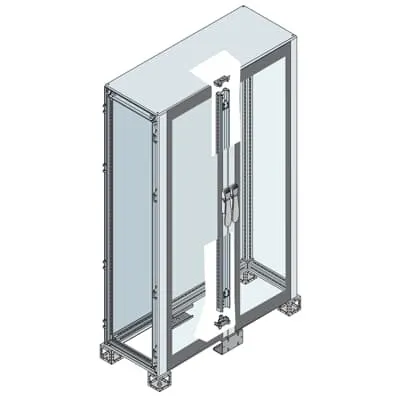

ES2224VK ABB: Cabinet with glazed door 2200x1200x400mm (HxWxD)
Configuration Type
3. Cabinet with double door and intermediate upright
Enclosure Type
Pre assembled - cabinet with double glazed door and intermediate upright
Mounting Type
Pre assembled
Product Type
5B5B10B120
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1210 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
1240 mm
Product Net Weight
142.0530 kg
Reference Depth/Length
400 mm
Reference Height
2200 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
151.120 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Pre-assembled cabinet with double glazed door and intermediate upright reduces on-site assembly time and risk of misalignment, delivering faster commissioning and fewer field errors in automated lines. IP55 protection guards against dust and water ingress in semi-indoor or harsher environments, increasing uptime and lowering maintenance costs. The orange-peel finish in RAL 7035 provides a durable, easy-to-clean surface that resists wear and environmental exposure, improving long-term appearance and corrosion resistance. Sheet steel construction offers solid EMI shielding and mechanical rigidity, supporting reliable operation of mounted drives and controllers in demanding industrial settings. The double door design enhances operator access and visibility while maintaining enclosure integrity, streamlining panel maintenance and changes. Compliance with IEC 62208 and IEC 61439-1-2, along with CE, RoHS, and REACH declarations, ensures regulatory alignment and reduces risk during audits. ETIM classifications and standardized dimensions simplify procurement, stocking, and compatibility with widely used components and accessories.
Get a Quick Quote for a ABB ES2224VK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2224VK?
Enquire Now
FAQs
Yes. The ES2224VK is a pre-assembled cabinet designed for straightforward installation with standard mounting practices. It supports typical panel-mounted devices and accessories, and its internal layout accommodates standard 35 mm DIN rails where applicable. Its intermediate upright and double-door configuration simplify wiring routes and panel organization, enabling faster, error-free commissioning on existing machine platforms.
Key specs include dimensions of 1200 mm width, 2200 mm height, and 400 mm depth, with a net weight around 142 kg. The cabinet is IP55 rated, featuring sheet steel construction with orange-peel finish in RAL 7035 and a transparent double-glazed door. It complies with IEC 62208 and IEC 61439-1-2, and carries CE, RoHS, and REACH declarations for reliable electrical enclosures.
Yes. The ES2224VK is designed for IEC 61439-1-2 compliant assemblies and aligns with IEC 62208 standards, ensuring safe, standardized enclosure performance. It also references NEMA compatibility with 1, 3R, and 12 configurations, making it appropriate for a broad range of industrial control and automation applications across diverse environments.
The enclosure ships with a CE Declaration of Conformity (IS2) and includes RoHS and REACH information with their respective dates (20250108). It is categorized under WEEE as not in scope for disposal, and carries ETIM 8/9 classifications (EC000261) along with eClass V11.1 27180101, supporting regulatory and product data accuracy for procurement systems.
The durable orange-peel finish in RAL 7035 reduces wear and simplifies cleaning, lowering maintenance costs over the cabinet’s life. Pre-assembly minimizes on-site labor and commissioning time, accelerating time-to-value for automation projects. The IP55 protection and EMI-friendly sheet steel body contribute to longer service intervals and predictable performance in demanding production environments.
