ABB ES2225BK Cabinet - IP55 IS2 Enclosure RoHS
Part Number: ES2225BK
Quick Summary
ABB ES2225BK is a control and automation cabinet designed to house electrical panels in industrial automation environments. It addresses common challenges like space constraints, ingress protection, and retrofit compatibility in harsh plants. Certified CE, IP55 protection, and RoHS/REACH compliance provide explicit assurance for global installations and plant safety. With pre-assembled construction, a double-door, overlapping closure, and a durable orange-peel finish, you accelerate assembly and ensure long-term reliability. This enclosure is compatible with IS2 Enclosures Technical Catalogue 2024 guidance and supports NEMA 1, 3R, 12 configurations when required. Its RoHS-compliant steel construction is well-suited for demanding environments while maintaining robust protection against dust, water, and incidental impacts.
Product Information
Extended Description

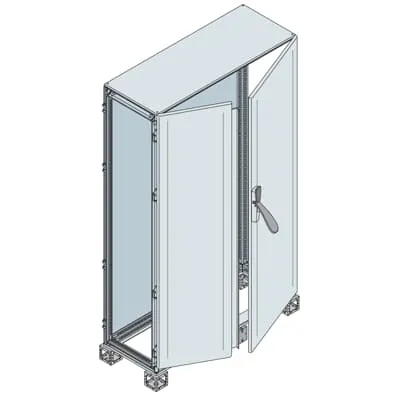

ES2225BK ABB: Cabinets with blind overlapping closure 2200x1200x500mm (HxWxD)
Configuration Type
2. Cabinet with double door and overlapping closure
Enclosure Type
Pre assembled - cabinet with double blind door and overlapping closure
Mounting Type
Pre assembled
Product Type
5B5B10B140
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1210 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
1240 mm
Product Net Weight
149.5820 kg
Reference Depth/Length
500 mm
Reference Height
2200 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
159.130 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature → Business Impact → Application: The cabinet arrives pre-assembled, reducing on-site labor and installation time while ensuring consistent fit and alignment for control panels. This translates to faster project delivery and lower commissioning risk in plant automation projects. Application: New line installations and panel retrofits in automotive and process industries. Feature → Business Impact → Application: Double-door with overlapping closure provides secure access and enhanced sealing, minimizing ingress risk and simplifying maintenance routines. Application: Medium-sized control panels in environments with dust and splashes. Feature → Business Impact → Application: Orange-peel finish in RAL 7035 offers durable aesthetics and corrosion resistance, improving longevity in demanding workshops and outdoor-adjacent spaces. Application: Electrical enclosures near production floors. Feature → Business Impact → Application: IP55 protection plus IEC/EN compatibility ensures compliance with IS2 and IEC 62208/61439 standards, reducing regulatory risk and accelerating approvals for global deployments. Application: Global manufacturing facilities needing standardized cabinets. Feature → Business Impact → Application: RoHS and REACH declarations with up-to-date documentation (20250108) simplify procurement audits and supplier conformity. Application: Compliance-driven projects in regulated industries.
Get a Quick Quote for a ABB ES2225BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2225BK?
Enquire Now
FAQs
ABB ES2225BK is pre-assembled for quick on-site setup, with a 1200 mm width, 2200 mm height, and 500 mm depth reference. The double-door, overlapping closure design simplifies panel access, while IP55 protection helps maintain ingress control in dusty or damp environments. Ensure mounting provisions on a sturdy base and plan for adequate clearance around the cabinet for service access.
Yes, the ES2225BK includes a CE Declaration of Conformity and aligns with IEC 62208 and IEC 61439-1-2 standards for enclosures. RoHS and REACH compliance are documented, with RoHS Date and REACH Date both 20250108. This supports regulatory acceptance across Europe and other regions, reducing compliance risk in audits and plant installations.
Absolutely. The enclosure carries IP55 protection and uses sheet steel with an orange-peel finish for durability. It is suitable for industrial automation panels in dusty or wet areas, and its overlapping closure helps maintain a robust seal. It also supports IS2 catalogue guidance and is compatible with multiple standards like NEMA configurations when required.
The ES2225BK features a double-door design with overlapping closure and is pre-assembled for convenient mounting. Mounting type is pre-assembled, and the enclosure is designed for easy opening/closing access to internal components. This configuration enhances serviceability, reduces installation time, and improves panel maintenance workflows.
Product net weight is 149.5820 kg, with package-level gross weight around 159.130 kg. Footprint references include a width of 1200 mm, height 2200 mm, and depth 500 mm (reference). This helps in planning palletization, transport, and on-site maneuvering, ensuring safe handling and placement in constrained facilities.
