ABB ES2225MF4K Control and Automation Cabinet - IP55
Part Number: ES2225MF4K
Quick Summary
ABB ES2225MF4K control cabinet enables reliable electrical automation in harsh industrial environments. Engineers often struggle with space constraints, wiring complexity, and lengthy deployment when integrating new panels. The enclosure is CE‑certified and IP55 protected, with IEC 62208 and IEC 61439‑1/2 compliance to align with global standards. Its pre‑assembled, multi‑compartment design and durable sheet steel frame reduce on‑site labor while improving safety and accessibility during servicing. With RoHS and REACH conformity, clear ETIM classification, and comprehensive installation documentation, this cabinet supports streamlined procurement and predictable lead times for industrial installations.
Product Information
Extended Description

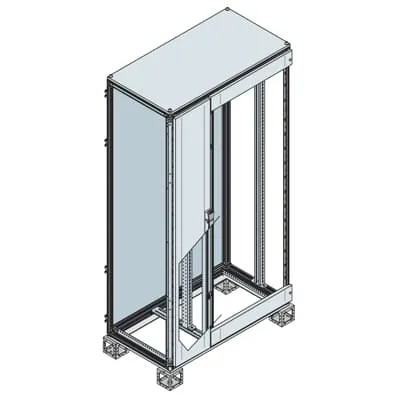

ES2225MF4K ABB: Cabinets for compartments 2200x500x1200mm (HxDxW) with Cable container W=400mm
Configuration Type
6. Cabinet for configuration with compartments
Enclosure Type
Pre assembled - cabinet for configuration with comprtments
Mounting Type
Pre assembled
Product Type
5B5B10B180
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1210 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
1240 mm
Product Net Weight
130.5190 kg
Reference Depth/Length
500 mm
Reference Height
2200 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
138.850 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Configuration Type: Six‑compartment cabinet enables modular control layouts, reducing wiring errors and simplifying future modifications. Business impact: faster commissioning, easier troubleshooting, and safer maintenance in automated lines. Application: ideal for complex automation cabinets in packaging lines and process plants. Enclosure Type and Mounting Type: Pre assembled design minimizes field assembly, accelerates install time, and improves alignment with control system interfaces across factory floors. Business impact: lower labor cost, consistent mounting, and enhanced reliability. Application: suitable for dedicated control rooms and machine housings. Material and Finish: Sheet steel construction with orange peel, RAL 7035 finish delivers durable corrosion resistance and easy identification in busy environments. Business impact: longer service life and reduced repainting costs. Application: industrial enclosures for harsh environments. Protection and Compliance: IP55 protection, RoHS/REACH, CE conformity, and IEC/NEMA standard support ensure regulatory alignment and safe operation. Business impact: reduced risk of ingress, safer maintenance, and predictable procurement. Application: machine builders and system integrators. Dimensions and Compatibility: Net width 1210 mm, height 2311.5 mm, depth 1240 mm support organized cabling and heat dissipation. Business impact: compact footprint with high capacity for control and power distribution. Application: multi‑panel automation cabinets with standardized interfaces. Installation Documentation: Includes 1STM604121R0006 manual and IS2 catalogue references for quick installation and ongoing maintenance. Business impact: lower risk of mis wiring, faster repairs, and consistent service lifecycles. Application: facilities with strict commissioning and regulatory needs.
Get a Quick Quote for a ABB ES2225MF4K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2225MF4K?
Enquire Now
FAQs
For installation, ensure alignment with reference dimensions: width 1210 mm, height 2311.5 mm, depth 1240 mm, and allowance for service clearances and cable routing. The unit ships pre‑assembled with mounting provisions, reducing on‑site assembly time. Follow the included installation manual 1STM604121R0006 and comply with CE labeling, RoHS/REACH documentation, and local electrical codes.
Core performance specs include an IP55 protection rating per IEC 60529, a sheet steel enclosure with orange peel finish (RAL 7035), and double doors for convenient access. The cabinet supports multi‑compartment configurations and is designed for pre‑assembled installation, delivering predictable electrical clearances and improved thermal management in harsh environments.
Yes, the ES2225MF4K is designed for industrial automation applications such as machine control panels and packaging line cabinets. Its multi‑compartment layout supports organized wiring and separation of power and signal circuits, while the IP55 enclosure and CE/IEC compliance ensure safe operation in production environments and easy integration with existing automation architectures.
It carries CE conformity (Declaration of Conformity IS2), RoHS and REACH declarations, and IEC/NEMA compatibility including IEC 62208, IEC 61439-1/2, and NEMA 1, 3R, 12. WEEE classification notes Product Not in WEEE Scope, and IS2 Enclosures 2024 catalogue references support procurement and regulatory alignment.
Maintenance benefits come from a durable sheet steel frame, IP55 rating reducing ingress risk, and reduced field wiring work due to pre‑assembled compartments. The result is lower lifecycle costs, faster commissioning, and predictable lead times with official manuals and documentation (1STM604121R0006, IS2 catalogue), helping shorten downtime and improve uptime in high‑demand lines.
